LTC4367

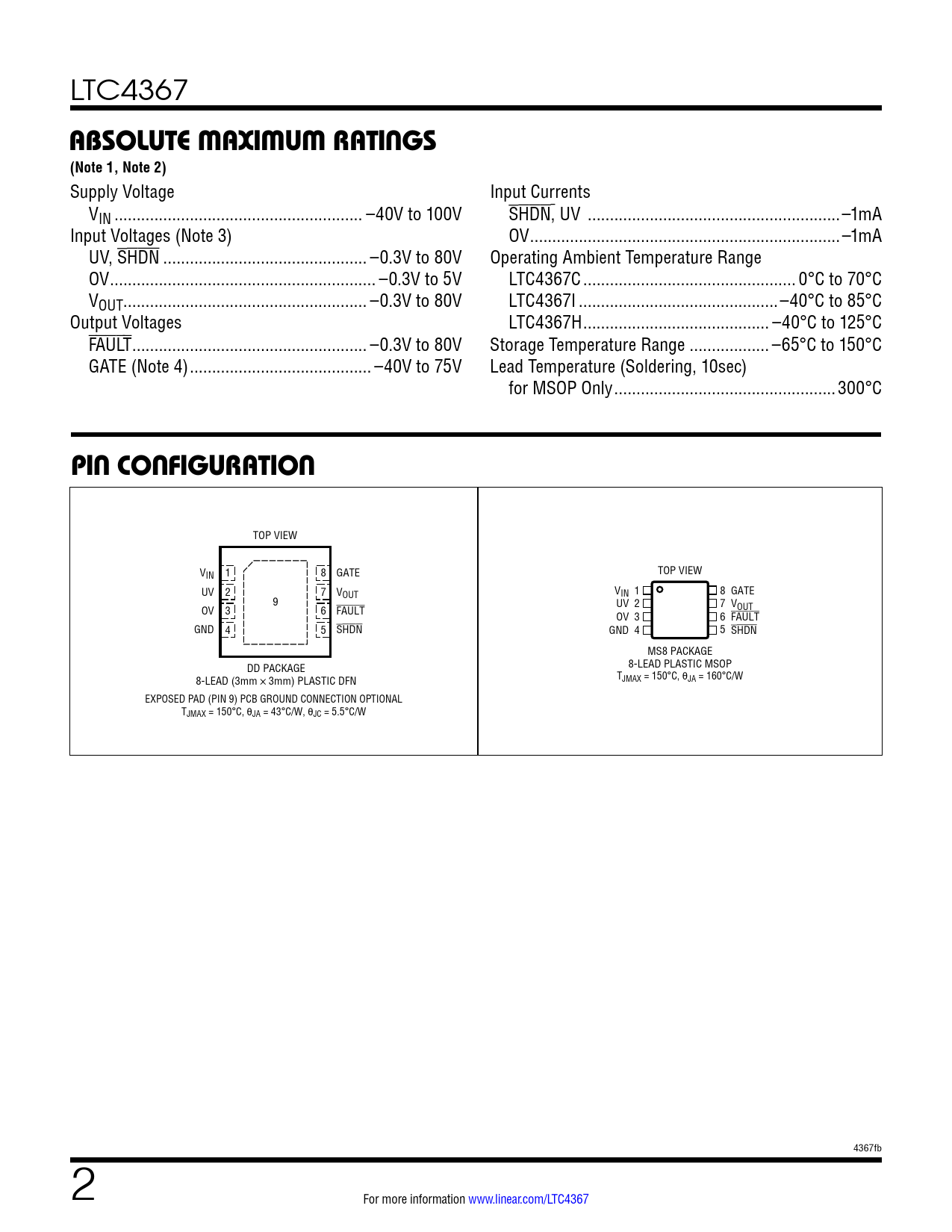

ABSOLUTE MAXIMUM RATINGS (Note 1, Note 2)
Supply Voltage Input Currents VIN .. –40V to 100V SHDN, UV ...–1mA Input Voltages (Note 3) OV ..–1mA UV, SHDN .. –0.3V to 80V Operating Ambient Temperature Range OV .. –0.3V to 5V LTC4367C .. 0°C to 70°C VOUT... –0.3V to 80V LTC4367I ...–40°C to 85°C Output Voltages LTC4367H .. –40°C to 125°C FAULT ... –0.3V to 80V Storage Temperature Range .. –65°C to 150°C GATE (Note 4) ... –40V to 75V Lead Temperature (Soldering, 10sec) for MSOP Only ..300°C
PIN CONFIGURATION
TOP VIEW VIN 1 8 GATE TOP VIEW UV 2 7 VOUT VIN 1 8 GATE 9 UV 2 7 V OV 3 6 FAULT OUT OV 3 6 FAULT GND 4 5 SHDN GND 4 5 SHDN MS8 PACKAGE DD PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD (3mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 160°C/W EXPOSED PAD (PIN 9) PCB GROUND CONNECTION OPTIONAL TJMAX = 150°C, θJA = 43°C/W, θJC = 5.5°C/W 4367fb 2 For more information www.linear.com/LTC4367
