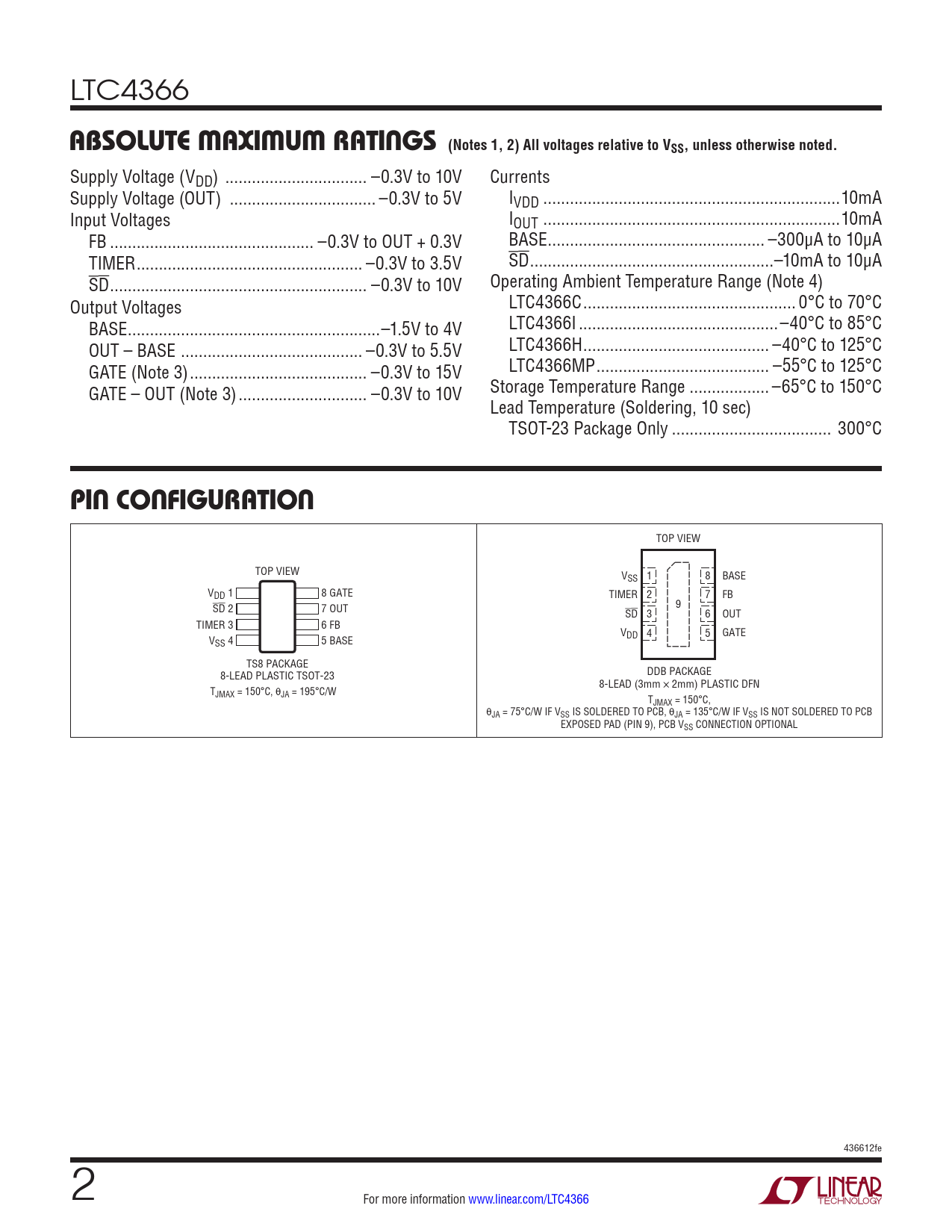

ABSOLUTE MAXIMUM RATINGS (Notes 1, 2) All voltages relative to VSS, unless otherwise noted. PIN CONFIGURATION
Model Line for this Datasheet
- LTC4366CDDB-1#PBF LTC4366CDDB-1#TRMPBF LTC4366CDDB-1#TRPBF LTC4366CDDB-2#PBF LTC4366CDDB-2#TRMPBF LTC4366CDDB-2#TRPBF LTC4366CTS8-1#PBF LTC4366CTS8-1#TRMPBF LTC4366CTS8-1#TRPBF LTC4366CTS8-2#PBF LTC4366CTS8-2#TRMPBF LTC4366CTS8-2#TRPBF LTC4366HDDB-1#PBF LTC4366HDDB-1#TRMPBF LTC4366HDDB-1#TRPBF LTC4366HDDB-2#PBF LTC4366HDDB-2#TRMPBF LTC4366HDDB-2#TRPBF LTC4366HTS8-1#PBF LTC4366HTS8-1#TRMPBF LTC4366HTS8-1#TRPBF LTC4366HTS8-2#PBF LTC4366HTS8-2#TRMPBF LTC4366HTS8-2#TRPBF LTC4366IDDB-1#PBF LTC4366IDDB-1#TRMPBF LTC4366IDDB-1#TRPBF LTC4366IDDB-2#PBF LTC4366IDDB-2#TRMPBF LTC4366IDDB-2#TRPBF LTC4366ITS8-1#PBF LTC4366ITS8-1#TRMPBF LTC4366ITS8-1#TRPBF LTC4366ITS8-2#PBF LTC4366ITS8-2#TRMPBF LTC4366ITS8-2#TRPBF LTC4366MPDDB-1#PBF LTC4366MPDDB-1#TRMPBF LTC4366MPDDB-1#TRPBF LTC4366MPDDB-2#PBF LTC4366MPDDB-2#TRMPBF LTC4366MPDDB-2#TRPBF LTC4366MPTS8-1#PBF LTC4366MPTS8-1#TRMPBF LTC4366MPTS8-1#TRPBF LTC4366MPTS8-2#PBF LTC4366MPTS8-2#TRM LTC4366MPTS8-2#TRMPBF LTC4366MPTS8-2#TRPBF
Text Version of Document
LTC4366
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2) All voltages relative to VSS, unless otherwise noted.
Supply Voltage (VDD) .. –0.3V to 10V Currents Supply Voltage (OUT) ... –0.3V to 5V IVDD ...10mA Input Voltages IOUT ...10mA FB .. –0.3V to OUT + 0.3V BASE ... –300µA to 10µA TIMER ... –0.3V to 3.5V SD ...–10mA to 10µA SD .. –0.3V to 10V Operating Ambient Temperature Range (Note 4) Output Voltages LTC4366C .. 0°C to 70°C BASE ...–1.5V to 4V LTC4366I ...–40°C to 85°C OUT – BASE ... –0.3V to 5.5V LTC4366H .. –40°C to 125°C GATE (Note 3) .. –0.3V to 15V LTC4366MP ... –55°C to 125°C GATE – OUT (Note 3) ... –0.3V to 10V Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) TSOT-23 Package Only .. 300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW VSS 1 8 BASE VDD 1 8 GATE TIMER 2 7 FB SD 2 7 OUT 9 SD 3 6 OUT TIMER 3 6 FB VDD 4 5 GATE VSS 4 5 BASE TS8 PACKAGE 8-LEAD PLASTIC TSOT-23 DDB PACKAGE 8-LEAD (3mm × 2mm) PLASTIC DFN T JMAX = 150°C, θJA = 195°C/W TJMAX = 150°C, θJA = 75°C/W IF VSS IS SOLDERED TO PCB, θJA = 135°C/W IF VSS IS NOT SOLDERED TO PCB EXPOSED PAD (PIN 9), PCB VSS CONNECTION OPTIONAL 436612fe 2 For more information www.linear.com/LTC4366 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Pin Functions Simplified Diagram Functional Diagram Operation Applications Information Package Description Typical Application Related Parts
