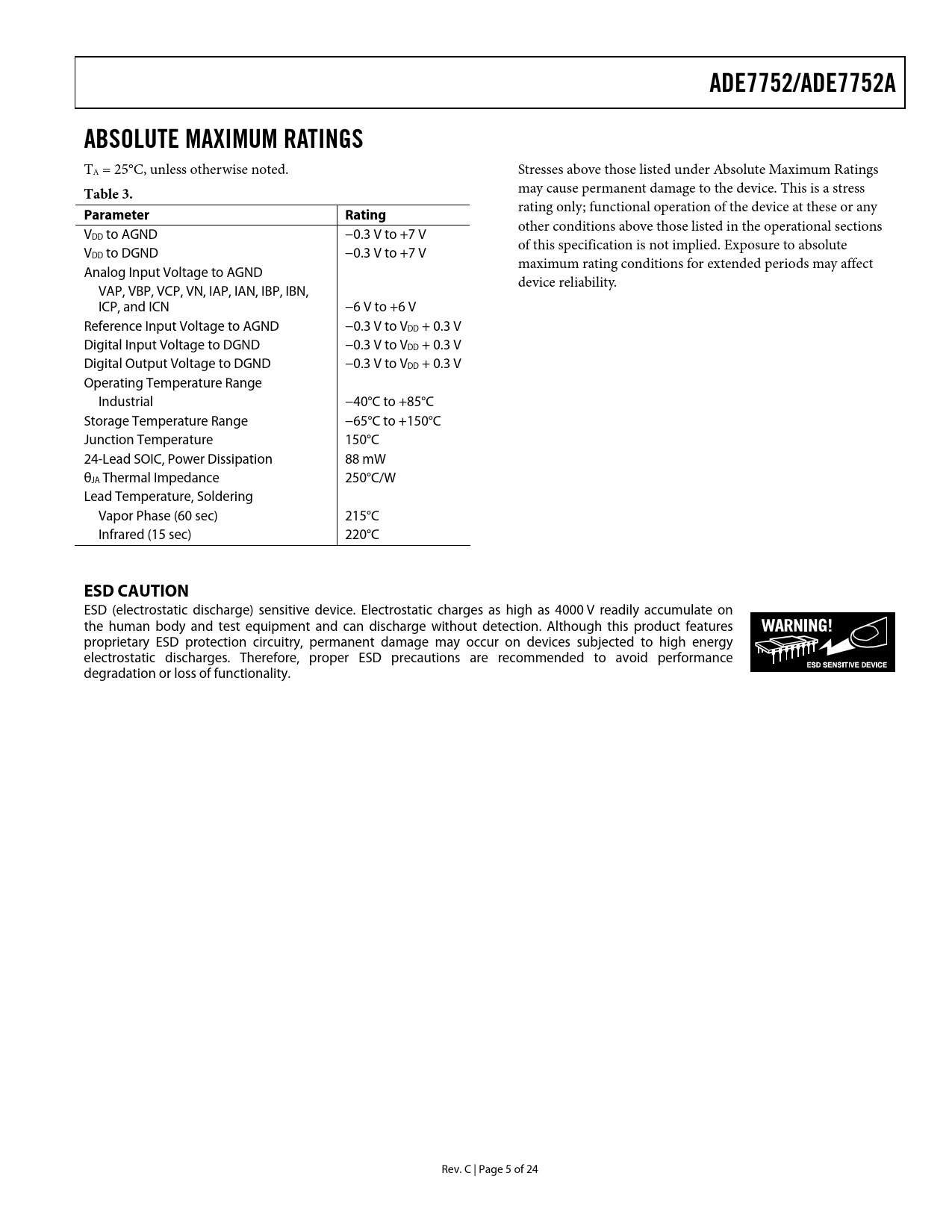

ADE7752/ADE7752A. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
ADE7752/ADE7752A ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses above those listed under Absolute Maximum Ratings
Table 3.
may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any
Parameter Rating
other conditions above those listed in the operational sections V to AGND DD −0.3 V to +7 V of this specification is not implied. Exposure to absolute V to DGND DD −0.3 V to +7 V maximum rating conditions for extended periods may affect Analog Input Voltage to AGND device reliability. VAP, VBP, VCP, VN, IAP, IAN, IBP, IBN, ICP, and ICN −6 V to +6 V Reference Input Voltage to AGND −0.3 V to V + 0.3 V DD Digital Input Voltage to DGND −0.3 V to V + 0.3 V DD Digital Output Voltage to DGND −0.3 V to V + 0.3 V DD Operating Temperature Range Industrial −40°C to +85°C Storage Temperature Range −65°C to +150°C Junction Temperature 150°C 24-Lead SOIC, Power Dissipation 88 mW θJA Thermal Impedance 250°C/W Lead Temperature, Soldering Vapor Phase (60 sec) 215°C Infrared (15 sec) 220°C
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Rev. C | Page 5 of 24 Document Outline FEATURES GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM SPECIFICATIONS TIMING CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUIT TERMINOLOGY THEORY OF OPERATION POWER FACTOR CONSIDERATIONS NONSINUSOIDAL VOLTAGE AND CURRENT ANALOG INPUTS CURRENT CHANNELS VOLTAGE CHANNELS TYPICAL CONNECTION DIAGRAMS CURRENT CHANNEL CONNECTION VOLTAGE CHANNELS CONNECTION METER CONNECTIONS POWER SUPPLY MONITOR HPF AND OFFSET EFFECTS DIGITAL-TO-FREQUENCY CONVERSION MODE SELECTION OF THE SUM OF THE THREE ACTIVE ENERGIES POWER MEASUREMENT CONSIDERATIONS TRANSFER FUNCTION FREQUENCY OUTPUTS F1 AND F2 FREQUENCY OUTPUT CF SELECTING A FREQUENCY FOR AN ENERGY METER APPLICATION FREQUENCY OUTPUTS NO LOAD THRESHOLD NEGATIVE POWER INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
