Datasheet ADR1500 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 1.2875 V Micropower, Shunt Voltage Reference |
| Pages / Page | 8 / 3 — ADR1500. SPECIFICATIONS ELECTRICAL CHARACTERISTICS. Table 1. Parameter … |
| File Format / Size | PDF / 226 Kb |
| Document Language | English |

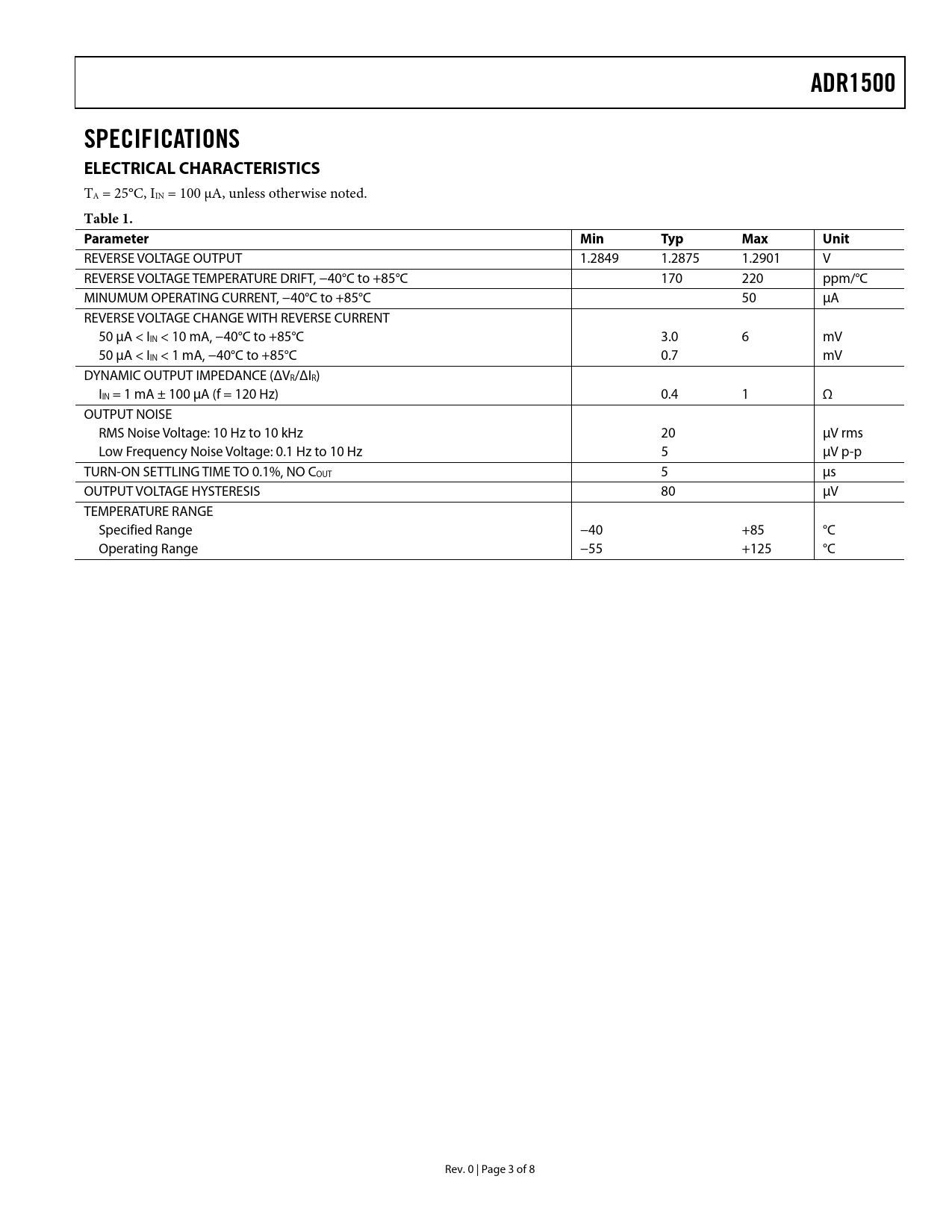

ADR1500. SPECIFICATIONS ELECTRICAL CHARACTERISTICS. Table 1. Parameter Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
ADR1500 SPECIFICATIONS ELECTRICAL CHARACTERISTICS
TA = 25°C, IIN = 100 μA, unless otherwise noted.
Table 1. Parameter Min Typ Max Unit
REVERSE VOLTAGE OUTPUT 1.2849 1.2875 1.2901 V REVERSE VOLTAGE TEMPERATURE DRIFT, −40°C to +85°C 170 220 ppm/°C MINUMUM OPERATING CURRENT, −40°C to +85°C 50 μA REVERSE VOLTAGE CHANGE WITH REVERSE CURRENT 50 μA < IIN < 10 mA, −40°C to +85°C 3.0 6 mV 50 μA < IIN < 1 mA, −40°C to +85°C 0.7 mV DYNAMIC OUTPUT IMPEDANCE (ΔVR/ΔIR) IIN = 1 mA ± 100 μA (f = 120 Hz) 0.4 1 Ω OUTPUT NOISE RMS Noise Voltage: 10 Hz to 10 kHz 20 μV rms Low Frequency Noise Voltage: 0.1 Hz to 10 Hz 5 μV p-p TURN-ON SETTLING TIME TO 0.1%, NO COUT 5 μs OUTPUT VOLTAGE HYSTERESIS 80 μV TEMPERATURE RANGE Specified Range −40 +85 °C Operating Range −55 +125 °C Rev. 0 | Page 3 of 8 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLYING THE ADR1500 TURN-ON TIME TRANSIENT RESPONSE OUTLINE DIMENSIONS ORDERING GUIDE
TA = 25°C, IIN = 100 μA, unless otherwise noted.
Table 1. Parameter Min Typ Max Unit
REVERSE VOLTAGE OUTPUT 1.2849 1.2875 1.2901 V REVERSE VOLTAGE TEMPERATURE DRIFT, −40°C to +85°C 170 220 ppm/°C MINUMUM OPERATING CURRENT, −40°C to +85°C 50 μA REVERSE VOLTAGE CHANGE WITH REVERSE CURRENT 50 μA < IIN < 10 mA, −40°C to +85°C 3.0 6 mV 50 μA < IIN < 1 mA, −40°C to +85°C 0.7 mV DYNAMIC OUTPUT IMPEDANCE (ΔVR/ΔIR) IIN = 1 mA ± 100 μA (f = 120 Hz) 0.4 1 Ω OUTPUT NOISE RMS Noise Voltage: 10 Hz to 10 kHz 20 μV rms Low Frequency Noise Voltage: 0.1 Hz to 10 Hz 5 μV p-p TURN-ON SETTLING TIME TO 0.1%, NO COUT 5 μs OUTPUT VOLTAGE HYSTERESIS 80 μV TEMPERATURE RANGE Specified Range −40 +85 °C Operating Range −55 +125 °C Rev. 0 | Page 3 of 8 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLYING THE ADR1500 TURN-ON TIME TRANSIENT RESPONSE OUTLINE DIMENSIONS ORDERING GUIDE
