Datasheet ADR512 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 1.2 V Precision Low Noise Shunt Voltage Reference |
| Pages / Page | 12 / 5 — Data Sheet. ADR512. TYPICAL PERFORMANCE CHARACTERISTICS. 1.204. 1.203. … |
| Revision | A |
| File Format / Size | PDF / 282 Kb |
| Document Language | English |

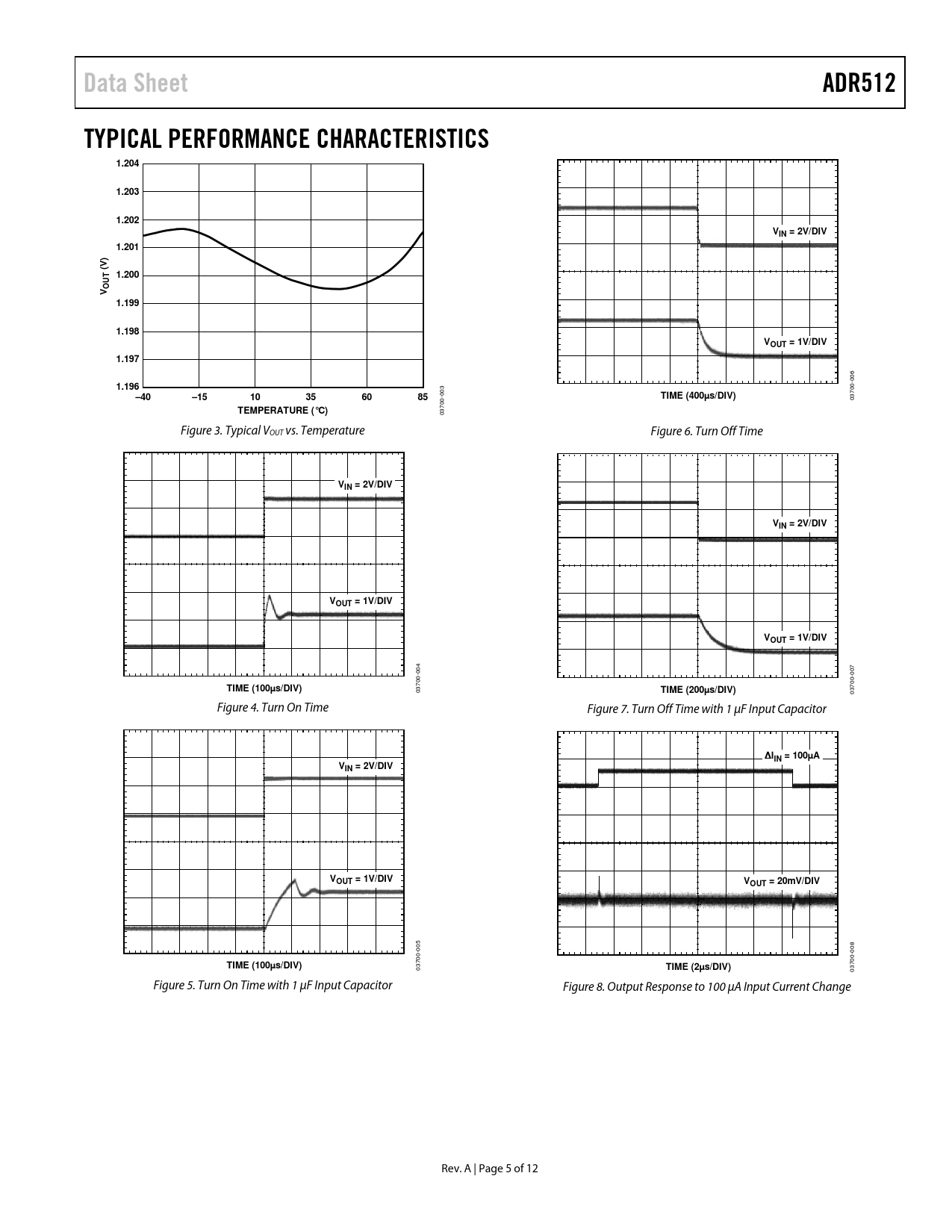

Data Sheet. ADR512. TYPICAL PERFORMANCE CHARACTERISTICS. 1.204. 1.203. 1.202. VIN = 2V/DIV. 1.201. (V). 1.200. UT OV. 1.199. 1.198. VOUT = 1V/DIV
Model Line for this Datasheet
Text Version of Document
Data Sheet ADR512 TYPICAL PERFORMANCE CHARACTERISTICS 1.204 1.203 1.202 VIN = 2V/DIV 1.201 (V) 1.200 UT OV 1.199 1.198 VOUT = 1V/DIV 1.197
006
1.196 –40 –15 10 35 60 85
003
TIME (400µs/DIV)
03700-
TEMPERATURE (°C)
03700- Figure 3. Typical VOUT vs. Temperature Figure 6. Turn Off Time
VIN = 2V/DIV VIN = 2V/DIV VOUT = 1V/DIV VOUT = 1V/DIV
004 007
TIME (100µs/DIV)
03700-
TIME (200µs/DIV)
03700- Figure 4. Turn On Time Figure 7. Turn Off Time with 1 μF Input Capacitor
ΔIIN = 100µA VIN = 2V/DIV VOUT = 1V/DIV VOUT = 20mV/DIV
005 008
TIME (100µs/DIV)
03700-
TIME (2µs/DIV)
03700- Figure 5. Turn On Time with 1 μF Input Capacitor Figure 8. Output Response to 100 μA Input Current Change Rev. A | Page 5 of 12 Document Outline Features Applications Pin Configuration General Description Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Parameter Definitions Temperature Coefficient Thermal Hysteresis Applications Section Adjustable Precision Voltage Source Output Voltage Trim Using the ADR512 with Precision Data Converters Precise Negative Voltage Reference Outline Dimensions Ordering Guide
