Datasheet LT1034-1.2, LT1034-2.5 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Micropower Dual Reference |
| Pages / Page | 8 / 5 — TYPICAL PERFORMANCE CHARACTERISTICS. Reverse Characteristics 1.2V. … |
| File Format / Size | PDF / 108 Kb |
| Document Language | English |
TYPICAL PERFORMANCE CHARACTERISTICS. Reverse Characteristics 1.2V. Reverse Characteristics 2.5V. Reverse Characteristics 7V
Model Line for this Datasheet
- LT1034BCZ-1.2#PBF LT1034BCZ-1.2#TRPBF LT1034BCZ-2.5#PBF LT1034BCZ-2.5#TRPBF LT1034BIZ-1.2#PBF LT1034BIZ-1.2#TRPBF LT1034BIZ-2.5#PBF LT1034BIZ-2.5#TRPBF LT1034CS8-1.2#PBF LT1034CS8-1.2#TRPBF LT1034CS8-2.5#PBF LT1034CS8-2.5#TRPBF LT1034CZ-1.2#PBF LT1034CZ-1.2#TRPBF LT1034CZ-2.5#PBF LT1034CZ-2.5#TRPBF LT1034IS8-1.2#PBF LT1034IS8-1.2#TRPBF LT1034IS8-2.5#PBF LT1034IS8-2.5#TRPBF LT1034IZ-1.2#PBF LT1034IZ-1.2#TRPBF LT1034IZ-2.5#PBF LT1034IZ-2.5#TRPBF
Text Version of Document
LT1034-1.2/LT1034-2.5

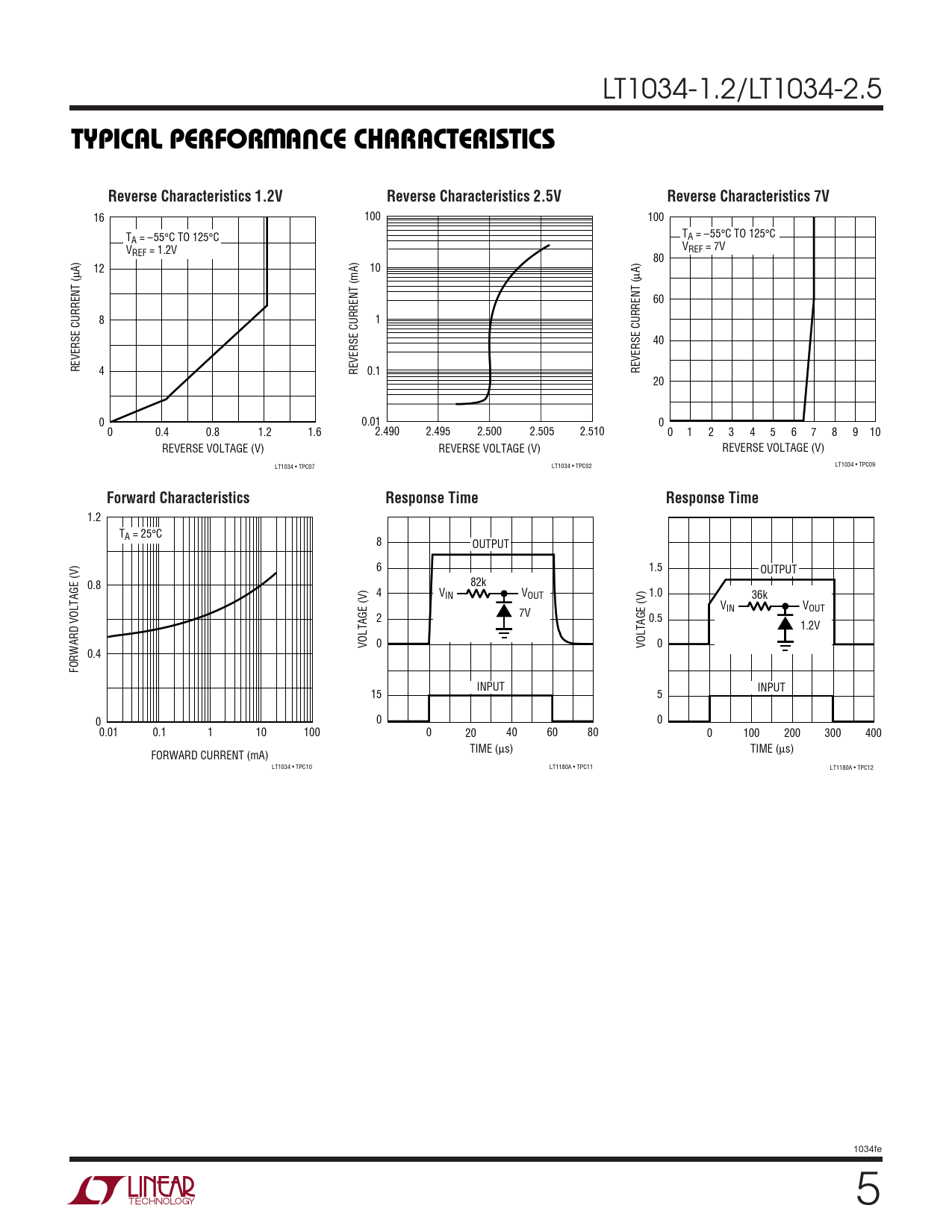

W U TYPICAL PERFORMANCE CHARACTERISTICS Reverse Characteristics 1.2V Reverse Characteristics 2.5V Reverse Characteristics 7V
16 100 100 T T A = –55°C TO 125°C A = –55°C TO 125°C V V REF = 1.2V REF = 7V 80 µA) 12 10 µA) 60 8 1 40 REVERSE CURRENT ( 4 REVERSE CURRENT (mA) 0.1 REVERSE CURRENT ( 20 0 0.01 0 0 0.4 0.8 1.2 1.6 2.490 2.495 2.500 2.505 2.510 0 1 2 3 4 5 6 7 8 9 10 REVERSE VOLTAGE (V) REVERSE VOLTAGE (V) REVERSE VOLTAGE (V) LT1034 • TPC07 LT1034 • TPC02 LT1034 • TPC09
Forward Characteristics Response Time Response Time
1.2 TA = 25°C 8 OUTPUT 6 1.5 OUTPUT 0.8 82k 4 VIN VOUT 1.0 36k V 7V IN VOUT 2 0.5 1.2V VOLTAGE (V) 0 VOLTAGE (V) 0 0.4 FORWARD VOLTAGE (V) INPUT INPUT 15 5 0 0 0 0.01 0.1 1 10 100 0 20 40 60 80 0 100 200 300 400 TIME (µs) TIME (µs) FORWARD CURRENT (mA) LT1034 • TPC10 LT1180A • TPC11 LT1180A • TPC12 1034fe 5
