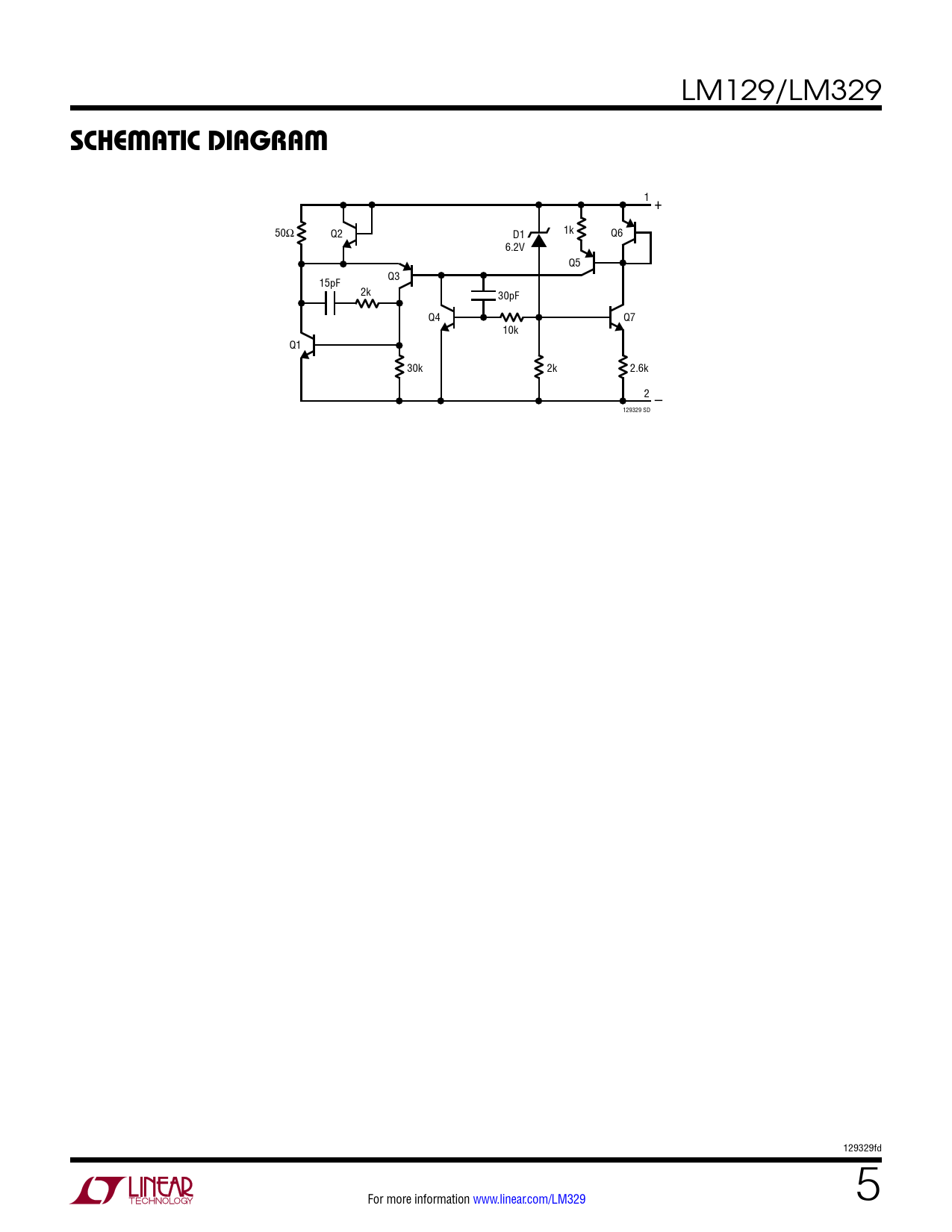

scheMaTic DiagraM
Model Line for this Datasheet
Text Version of Document
LM129/LM329
scheMaTic DiagraM
1 + 50Ω Q2 1k D1 Q6 6.2V Q5 Q3 15pF 2k 30pF Q4 Q7 10k Q1 30k 2k 2.6k 2 – 129329 SD 129329fd For more information www.linear.com/LM329 5 Document Outline Description Typical Application Absolute Maximum Ratings Electrical Characteristics Typical Performance Characteristics Package Description Typical Application Related Parts
