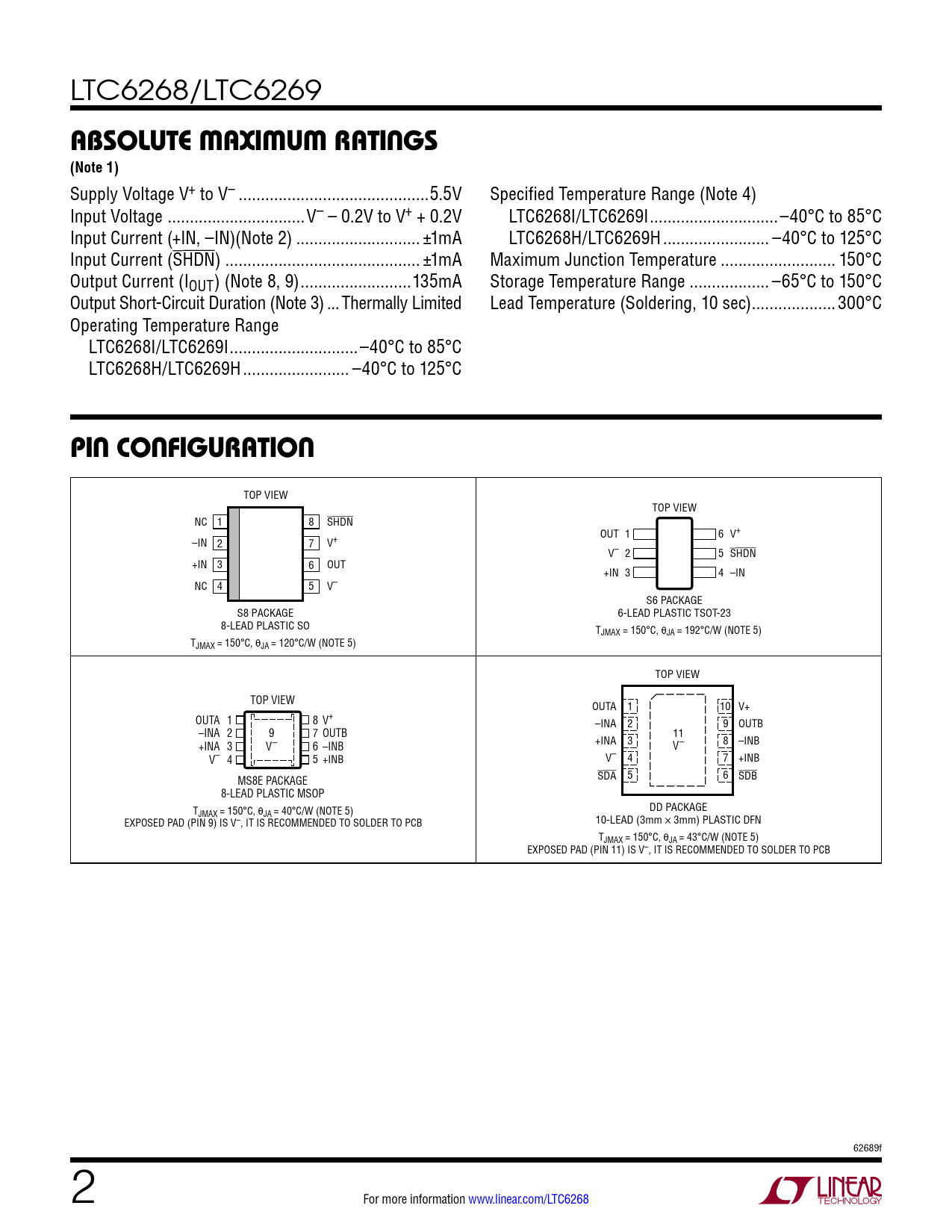

LTC6268/LTC6269
ABSOLUTE MAXIMUM RATINGS (Note 1)
Supply Voltage V+ to V– ...5.5V Specified Temperature Range (Note 4) Input Voltage ...V– – 0.2V to V+ + 0.2V LTC6268I/LTC6269I ...–40°C to 85°C Input Current (+IN, –IN)(Note 2) .. ±1mA LTC6268H/LTC6269H .. –40°C to 125°C Input Current (SHDN) .. ±1mA Maximum Junction Temperature .. 150°C Output Current (IOUT) (Note 8, 9) ...135mA Storage Temperature Range .. –65°C to 150°C Output Short-Circuit Duration (Note 3) ...Thermally Limited Lead Temperature (Soldering, 10 sec) ...300°C Operating Temperature Range LTC6268I/LTC6269I ...–40°C to 85°C LTC6268H/LTC6269H .. –40°C to 125°C
PIN CONFIGURATION
TOP VIEW TOP VIEW NC 1 8 SHDN OUT 1 6 V+ –IN 2 7 V+ V– 2 5 SHDN +IN 3 6 OUT +IN 3 4 –IN NC 4 5 V– S6 PACKAGE S8 PACKAGE 6-LEAD PLASTIC TSOT-23 8-LEAD PLASTIC SO TJMAX = 150°C, θJA = 192°C/W (NOTE 5) TJMAX = 150°C, θJA = 120°C/W (NOTE 5) TOP VIEW TOP VIEW OUTA 1 10 V+ OUTA 1 8 V+ –INA 2 9 OUTB –INA 2 9 7 OUTB 11 +INA 3 V– 6 –INB +INA 3 8 –INB V– V– 4 5 +INB V– 4 7 +INB MS8E PACKAGE SDA 5 6 SDB 8-LEAD PLASTIC MSOP T DD PACKAGE JMAX = 150°C, θJA = 40°C/W (NOTE 5) EXPOSED PAD (PIN 9) IS V–, IT IS RECOMMENDED TO SOLDER TO PCB 10-LEAD (3mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 43°C/W (NOTE 5) EXPOSED PAD (PIN 11) IS V–, IT IS RECOMMENDED TO SOLDER TO PCB 62689f 2 For more information www.linear.com/LTC6268
