Datasheet LTC6240, LTC6241, LTC6242 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Single 18MHz, Low Noise, Rail-to-Rail Output, CMOS Op Amp |
| Pages / Page | 32 / 6 — ELECTRICAL CHARACTERISTICS. (LTC6240C/I, LTC6240HVC/I, LTC6241C/I, … |
| File Format / Size | PDF / 435 Kb |
| Document Language | English |
ELECTRICAL CHARACTERISTICS. (LTC6240C/I, LTC6240HVC/I, LTC6241C/I, LTC6241HVC/I, LTC6242C/I,. LTC6242HVC/I) The
Model Line for this Datasheet
- LTC6240CS5#PBF LTC6240CS5#TRMPBF LTC6240CS5#TRPBF LTC6240CS8#PBF LTC6240CS8#TRPBF LTC6240DICE LTC6240HS5#PBF LTC6240HS5#TRMPBF LTC6240HS5#TRPBF LTC6240HS8#PBF LTC6240HS8#TRPBF LTC6240HVCS5#PBF LTC6240HVCS5#TRMPBF LTC6240HVCS5#TRPBF LTC6240HVCS8#PBF LTC6240HVCS8#TRPBF LTC6240HVHS5#PBF LTC6240HVHS5#TRM LTC6240HVHS5#TRMPBF LTC6240HVHS5#TRPBF LTC6240HVHS8#PBF LTC6240HVHS8#TRPBF LTC6240HVIS5#PBF LTC6240HVIS5#TRMPBF LTC6240HVIS5#TRPBF LTC6240HVIS8#PBF LTC6240HVIS8#TRPBF LTC6240IS5#PBF LTC6240IS5#TRMPBF LTC6240IS5#TRPBF LTC6240IS8#PBF LTC6240IS8#TRPBF
- LTC6241CDD#PBF LTC6241CDD#TRPBF LTC6241CS8#PBF LTC6241CS8#TRPBF LTC6241HS8#PBF LTC6241HS8#TRPBF LTC6241HVCDD#PBF LTC6241HVCDD#TRPBF LTC6241HVCS8#PBF LTC6241HVCS8#TRPBF LTC6241HVHS8#PBF LTC6241HVHS8#TRPBF LTC6241HVIDD#PBF LTC6241HVIDD#TRPBF LTC6241HVIS8#PBF LTC6241HVIS8#TRPBF LTC6241IDD#PBF LTC6241IDD#TRPBF LTC6241IS8#PBF LTC6241IS8#TRPBF
- LTC6242CDHC#PBF LTC6242CDHC#TRPBF LTC6242CGN#PBF LTC6242CGN#TRPBF LTC6242HGN#PBF LTC6242HGN#TRPBF LTC6242HVCDHC#PBF LTC6242HVCDHC#TRPBF LTC6242HVCGN#PBF LTC6242HVCGN#TRPBF LTC6242HVHGN#PBF LTC6242HVHGN#TRPBF LTC6242HVIDHC#PBF LTC6242HVIDHC#TRPBF LTC6242HVIGN#PBF LTC6242HVIGN#TRPBF LTC6242IDHC#PBF LTC6242IDHC#TRPBF LTC6242IGN#PBF LTC6242IGN#TRPBF
Text Version of Document
LTC6240/LTC6241/LTC6242

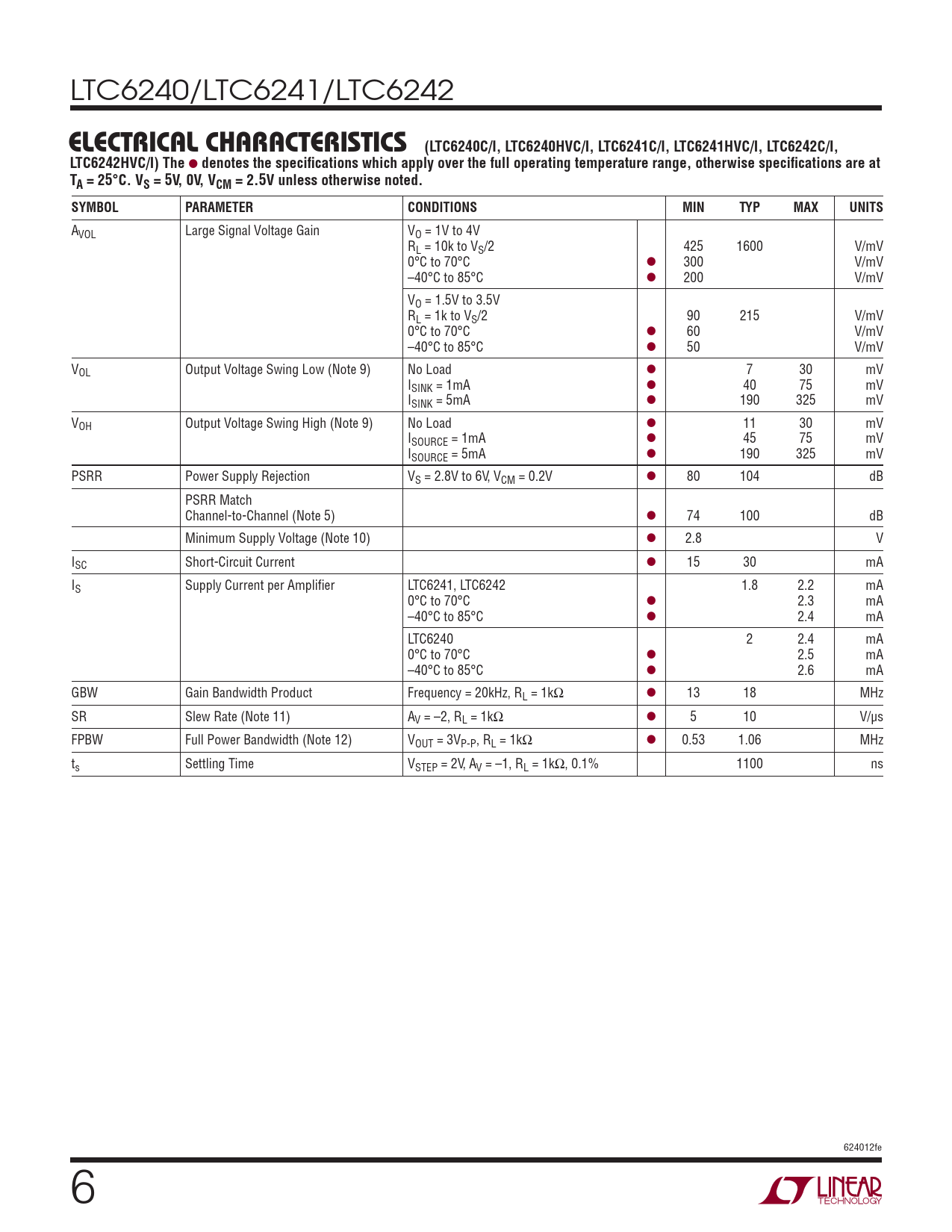

ELECTRICAL CHARACTERISTICS (LTC6240C/I, LTC6240HVC/I, LTC6241C/I, LTC6241HVC/I, LTC6242C/I, LTC6242HVC/I) The
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VS = 5V, 0V, VCM = 2.5V unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
AVOL Large Signal Voltage Gain VO = 1V to 4V RL = 10k to VS/2 425 1600 V/mV 0°C to 70°C l 300 V/mV –40°C to 85°C l 200 V/mV VO = 1.5V to 3.5V RL = 1k to VS/2 90 215 V/mV 0°C to 70°C l 60 V/mV –40°C to 85°C l 50 V/mV VOL Output Voltage Swing Low (Note 9) No Load l 7 30 mV ISINK = 1mA l 40 75 mV ISINK = 5mA l 190 325 mV VOH Output Voltage Swing High (Note 9) No Load l 11 30 mV ISOURCE = 1mA l 45 75 mV ISOURCE = 5mA l 190 325 mV PSRR Power Supply Rejection VS = 2.8V to 6V, VCM = 0.2V l 80 104 dB PSRR Match Channel-to-Channel (Note 5) l 74 100 dB Minimum Supply Voltage (Note 10) l 2.8 V ISC Short-Circuit Current l 15 30 mA IS Supply Current per Amplifi er LTC6241, LTC6242 1.8 2.2 mA 0°C to 70°C l 2.3 mA –40°C to 85°C l 2.4 mA LTC6240 2 2.4 mA 0°C to 70°C l 2.5 mA –40°C to 85°C l 2.6 mA GBW Gain Bandwidth Product Frequency = 20kHz, RL = 1kΩ l 13 18 MHz SR Slew Rate (Note 11) AV = –2, RL = 1kΩ l 5 10 V/μs FPBW Full Power Bandwidth (Note 12) VOUT = 3VP-P, RL = 1kΩ l 0.53 1.06 MHz ts Settling Time VSTEP = 2V, AV = –1, RL = 1kΩ, 0.1% 1100 ns 624012fe 6
