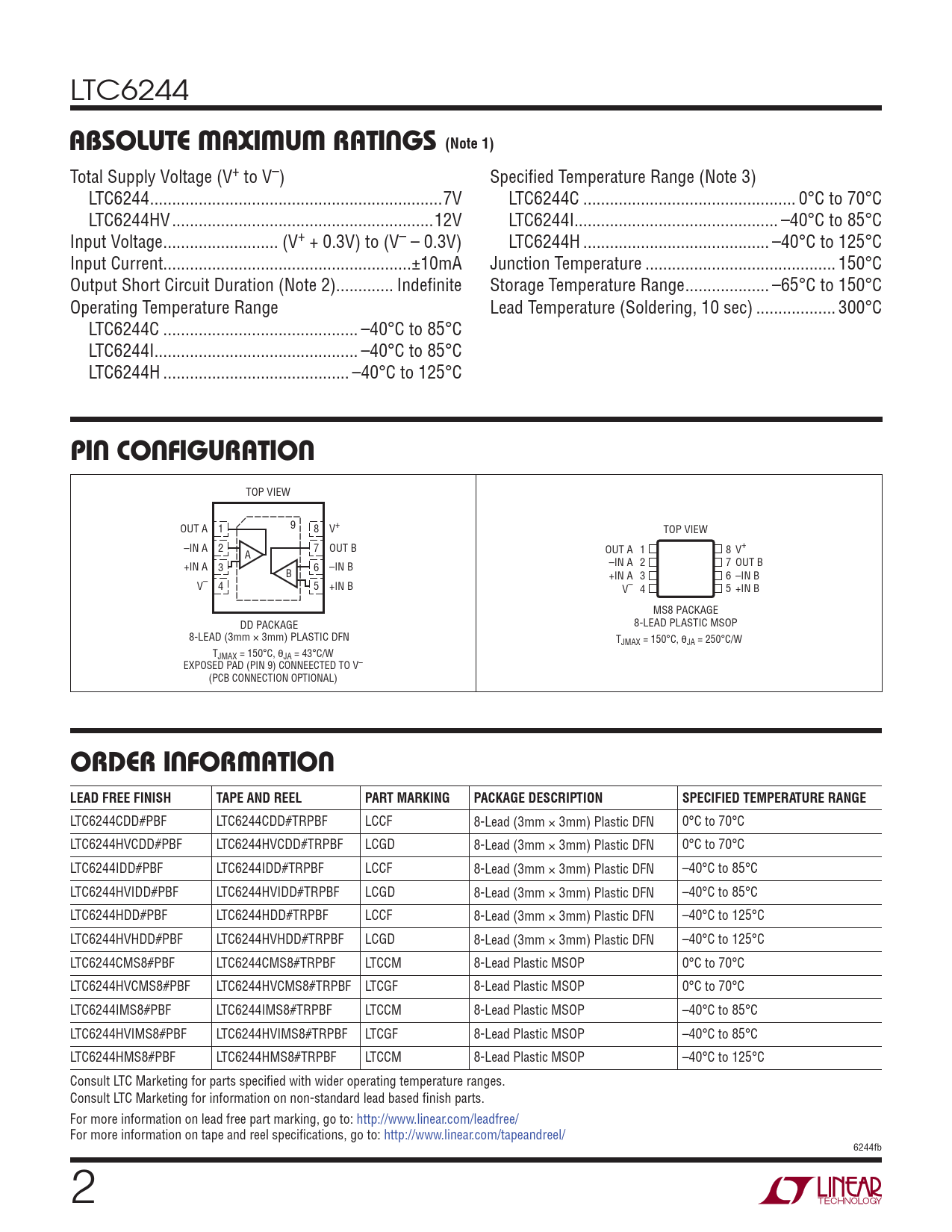

LTC6244
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V+ to V–) Specifi ed Temperature Range (Note 3) LTC6244 ..7V LTC6244C .. 0°C to 70°C LTC6244HV ...12V LTC6244I.. –40°C to 85°C Input Voltage .. (V+ + 0.3V) to (V– – 0.3V) LTC6244H .. –40°C to 125°C Input Current ..±10mA Junction Temperature ... 150°C Output Short Circuit Duration (Note 2)... Indefi nite Storage Temperature Range ... –65°C to 150°C Operating Temperature Range Lead Temperature (Soldering, 10 sec) .. 300°C LTC6244C .. –40°C to 85°C LTC6244I.. –40°C to 85°C LTC6244H .. –40°C to 125°C
PIN CONFIGURATION
TOP VIEW 9 OUT A 1 8 V+ TOP VIEW –IN A 2 7 OUT B OUT A 1 8 V+ A +IN A 3 6 –IN B –IN A 2 7 OUT B B +IN A 3 6 –IN B V– 4 5 +IN B V– 4 5 +IN B MS8 PACKAGE DD PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD (3mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 250°C/W TJMAX = 150°C, θJA = 43°C/W EXPOSED PAD (PIN 9) CONNEECTED TO V– (PCB CONNECTION OPTIONAL)
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6244CDD#PBF LTC6244CDD#TRPBF LCCF 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC6244HVCDD#PBF LTC6244HVCDD#TRPBF LCGD 8-Lead (3mm × 3mm) Plastic DFN 0°C to 70°C LTC6244IDD#PBF LTC6244IDD#TRPBF LCCF 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC6244HVIDD#PBF LTC6244HVIDD#TRPBF LCGD 8-Lead (3mm × 3mm) Plastic DFN –40°C to 85°C LTC6244HDD#PBF LTC6244HDD#TRPBF LCCF 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC6244HVHDD#PBF LTC6244HVHDD#TRPBF LCGD 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC6244CMS8#PBF LTC6244CMS8#TRPBF LTCCM 8-Lead Plastic MSOP 0°C to 70°C LTC6244HVCMS8#PBF LTC6244HVCMS8#TRPBF LTCGF 8-Lead Plastic MSOP 0°C to 70°C LTC6244IMS8#PBF LTC6244IMS8#TRPBF LTCCM 8-Lead Plastic MSOP –40°C to 85°C LTC6244HVIMS8#PBF LTC6244HVIMS8#TRPBF LTCGF 8-Lead Plastic MSOP –40°C to 85°C LTC6244HMS8#PBF LTC6244HMS8#TRPBF LTCCM 8-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 6244fb 2
