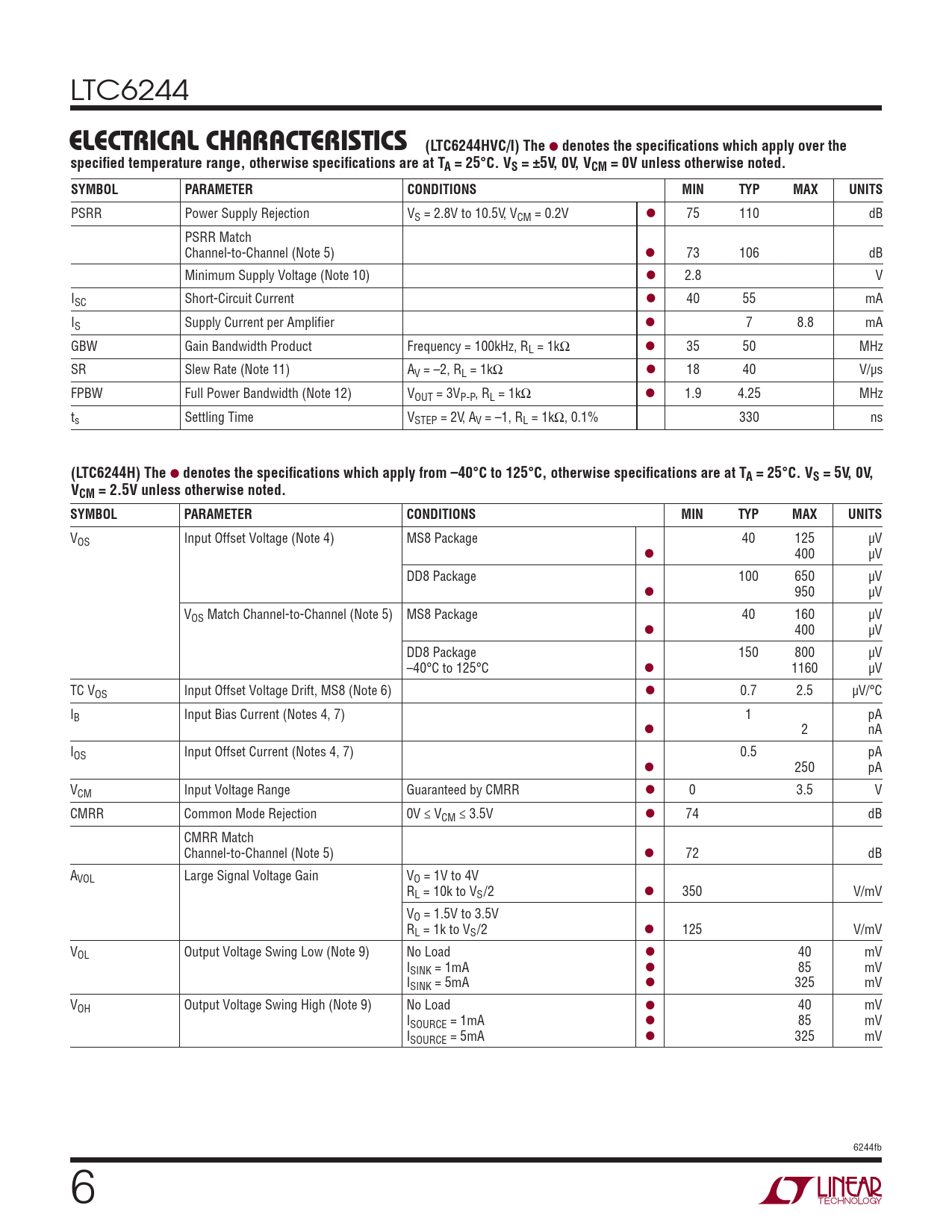

ELECTRICAL CHARACTERISTICS. TC6244HVC/I). The. denotes the specifi cations which apply over the
Model Line for this Datasheet
- LTC6244CDD#PBF LTC6244CDD#TRPBF LTC6244CMS8#PBF LTC6244CMS8#TRPBF LTC6244HDD#PBF LTC6244HDD#TRPBF LTC6244HMS8#PBF LTC6244HMS8#TRPBF LTC6244HVCDD#PBF LTC6244HVCDD#TRPBF LTC6244HVCMS8#PBF LTC6244HVCMS8#TRPBF LTC6244HVHDD#PBF LTC6244HVHDD#TRPBF LTC6244HVIDD#PBF LTC6244HVIDD#TRPBF LTC6244HVIMS8#PBF LTC6244HVIMS8#TRPBF LTC6244IDD#PBF LTC6244IDD#TRPBF LTC6244IMS8#PBF LTC6244IMS8#TRPBF
Text Version of Document
LTC6244
(L ELECTRICAL CHARACTERISTICS TC6244HVC/I) The
l
denotes the specifi cations which apply over the specifi ed temperature range, otherwise specifi cations are at TA = 25°C. VS = ±5V, 0V, VCM = 0V unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
PSRR Power Supply Rejection VS = 2.8V to 10.5V, VCM = 0.2V l 75 110 dB PSRR Match Channel-to-Channel (Note 5) l 73 106 dB Minimum Supply Voltage (Note 10) l 2.8 V ISC Short-Circuit Current l 40 55 mA IS Supply Current per Amplifi er l 7 8.8 mA GBW Gain Bandwidth Product Frequency = 100kHz, RL = 1kΩ l 35 50 MHz SR Slew Rate (Note 11) AV = –2, RL = 1kΩ l 18 40 V/μs FPBW Full Power Bandwidth (Note 12) VOUT = 3VP-P, RL = 1kΩ l 1.9 4.25 MHz ts Settling Time VSTEP = 2V, AV = –1, RL = 1kΩ, 0.1% 330 ns
(LTC6244H) The
l
denotes the specifi cations which apply from –40°C to 125°C, otherwise specifi cations are at TA = 25°C. VS = 5V, 0V, VCM = 2.5V unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage (Note 4) MS8 Package 40 125 μV l 400 μV DD8 Package 100 650 μV l 950 μV VOS Match Channel-to-Channel (Note 5) MS8 Package 40 160 μV l 400 μV DD8 Package 150 800 μV –40°C to 125°C l 1160 μV TC VOS Input Offset Voltage Drift, MS8 (Note 6) l 0.7 2.5 μV/°C IB Input Bias Current (Notes 4, 7) 1 pA l 2 nA IOS Input Offset Current (Notes 4, 7) 0.5 pA l 250 pA VCM Input Voltage Range Guaranteed by CMRR l 0 3.5 V CMRR Common Mode Rejection 0V ≤ VCM ≤ 3.5V l 74 dB CMRR Match Channel-to-Channel (Note 5) l 72 dB AVOL Large Signal Voltage Gain VO = 1V to 4V RL = 10k to VS/2 l 350 V/mV VO = 1.5V to 3.5V RL = 1k to VS/2 l 125 V/mV VOL Output Voltage Swing Low (Note 9) No Load l 40 mV ISINK = 1mA l 85 mV ISINK = 5mA l 325 mV VOH Output Voltage Swing High (Note 9) No Load l 40 mV ISOURCE = 1mA l 85 mV ISOURCE = 5mA l 325 mV 6244fb 6
