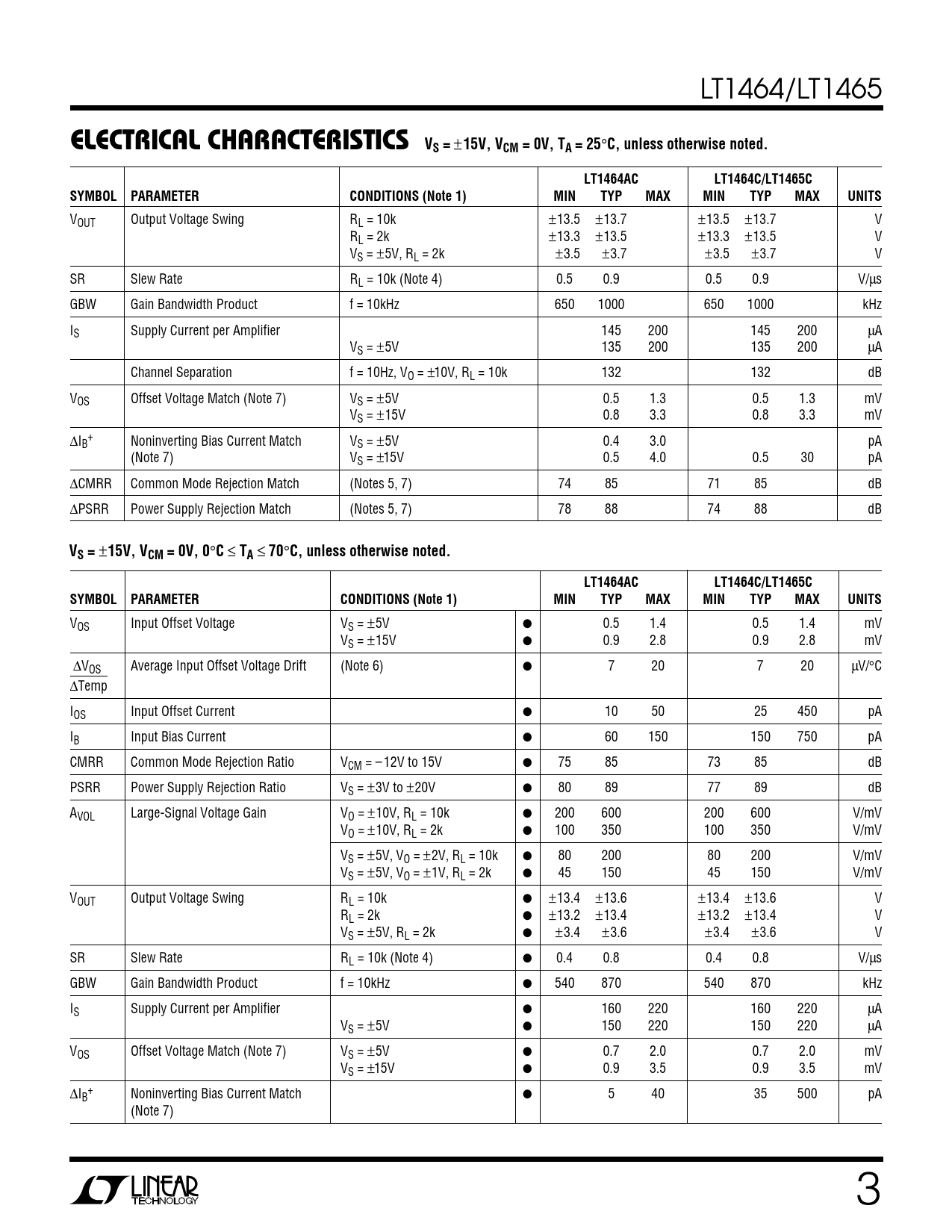

ELECTRICAL CHARACTERISTICS VS =. 15V, VCM = 0V, TA = 25. C, unless otherwise noted. LT1464AC. LT1464C/LT1465C. SYMBOL. PARAMETER
Model Line for this Datasheet
Text Version of Document
LT1464/LT1465
ELECTRICAL CHARACTERISTICS VS =
±
15V, VCM = 0V, TA = 25
°
C, unless otherwise noted. LT1464AC LT1464C/LT1465C SYMBOL PARAMETER CONDITIONS (Note 1) MIN TYP MAX MIN TYP MAX UNITS
VOUT Output Voltage Swing RL = 10k ±13.5 ±13.7 ±13.5 ±13.7 V RL = 2k ±13.3 ±13.5 ±13.3 ±13.5 V VS = ±5V, RL = 2k ±3.5 ±3.7 ±3.5 ±3.7 V SR Slew Rate RL = 10k (Note 4) 0.5 0.9 0.5 0.9 V/µs GBW Gain Bandwidth Product f = 10kHz 650 1000 650 1000 kHz IS Supply Current per Amplifier 145 200 145 200 µA VS = ±5V 135 200 135 200 µA Channel Separation f = 10Hz, VO = ±10V, RL = 10k 132 132 dB VOS Offset Voltage Match (Note 7) VS = ±5V 0.5 1.3 0.5 1.3 mV VS = ±15V 0.8 3.3 0.8 3.3 mV ∆I + B Noninverting Bias Current Match VS = ±5V 0.4 3.0 pA (Note 7) VS = ±15V 0.5 4.0 0.5 30 pA ∆CMRR Common Mode Rejection Match (Notes 5, 7) 74 85 71 85 dB ∆PSRR Power Supply Rejection Match (Notes 5, 7) 78 88 74 88 dB
VS =
±
15V, VCM = 0V, 0
°
C
≤
TA
≤
70
°
C, unless otherwise noted. LT1464AC LT1464C/LT1465C SYMBOL PARAMETER CONDITIONS (Note 1) MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage VS = ±5V ● 0.5 1.4 0.5 1.4 mV VS = ±15V ● 0.9 2.8 0.9 2.8 mV ∆VOS Average Input Offset Voltage Drift (Note 6) ● 7 20 7 20 µV/°C ∆Temp IOS Input Offset Current ● 10 50 25 450 pA IB Input Bias Current ● 60 150 150 750 pA CMRR Common Mode Rejection Ratio VCM = – 12V to 15V ● 75 85 73 85 dB PSRR Power Supply Rejection Ratio VS = ±3V to ±20V ● 80 89 77 89 dB AVOL Large-Signal Voltage Gain VO = ±10V, RL = 10k ● 200 600 200 600 V/mV VO = ±10V, RL = 2k ● 100 350 100 350 V/mV VS = ±5V, VO = ±2V, RL = 10k ● 80 200 80 200 V/mV VS = ±5V, VO = ±1V, RL = 2k ● 45 150 45 150 V/mV VOUT Output Voltage Swing RL = 10k ● ±13.4 ±13.6 ±13.4 ±13.6 V RL = 2k ● ±13.2 ±13.4 ±13.2 ±13.4 V VS = ±5V, RL = 2k ● ±3.4 ±3.6 ±3.4 ±3.6 V SR Slew Rate RL = 10k (Note 4) ● 0.4 0.8 0.4 0.8 V/µs GBW Gain Bandwidth Product f = 10kHz ● 540 870 540 870 kHz IS Supply Current per Amplifier ● 160 220 160 220 µA VS = ±5V ● 150 220 150 220 µA VOS Offset Voltage Match (Note 7) VS = ±5V ● 0.7 2.0 0.7 2.0 mV VS = ±15V ● 0.9 3.5 0.9 3.5 mV ∆I + B Noninverting Bias Current Match ● 5 40 35 500 pA (Note 7) 3
ELECTRICAL CHARACTERISTICS VS =
±
15V, VCM = 0V, TA = 25
°
C, unless otherwise noted. LT1464AC LT1464C/LT1465C SYMBOL PARAMETER CONDITIONS (Note 1) MIN TYP MAX MIN TYP MAX UNITS
VOUT Output Voltage Swing RL = 10k ±13.5 ±13.7 ±13.5 ±13.7 V RL = 2k ±13.3 ±13.5 ±13.3 ±13.5 V VS = ±5V, RL = 2k ±3.5 ±3.7 ±3.5 ±3.7 V SR Slew Rate RL = 10k (Note 4) 0.5 0.9 0.5 0.9 V/µs GBW Gain Bandwidth Product f = 10kHz 650 1000 650 1000 kHz IS Supply Current per Amplifier 145 200 145 200 µA VS = ±5V 135 200 135 200 µA Channel Separation f = 10Hz, VO = ±10V, RL = 10k 132 132 dB VOS Offset Voltage Match (Note 7) VS = ±5V 0.5 1.3 0.5 1.3 mV VS = ±15V 0.8 3.3 0.8 3.3 mV ∆I + B Noninverting Bias Current Match VS = ±5V 0.4 3.0 pA (Note 7) VS = ±15V 0.5 4.0 0.5 30 pA ∆CMRR Common Mode Rejection Match (Notes 5, 7) 74 85 71 85 dB ∆PSRR Power Supply Rejection Match (Notes 5, 7) 78 88 74 88 dB
