Datasheet LTC1047 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | Dual Micropower Zero-Drift Operational Amplifier with Internal Capacitors |
| Pages / Page | 12 / 7 — TYPICAL APPLICATIO S. Low Offset, Low Drift Instrumentation Amplifier |
| File Format / Size | PDF / 162 Kb |
| Document Language | English |

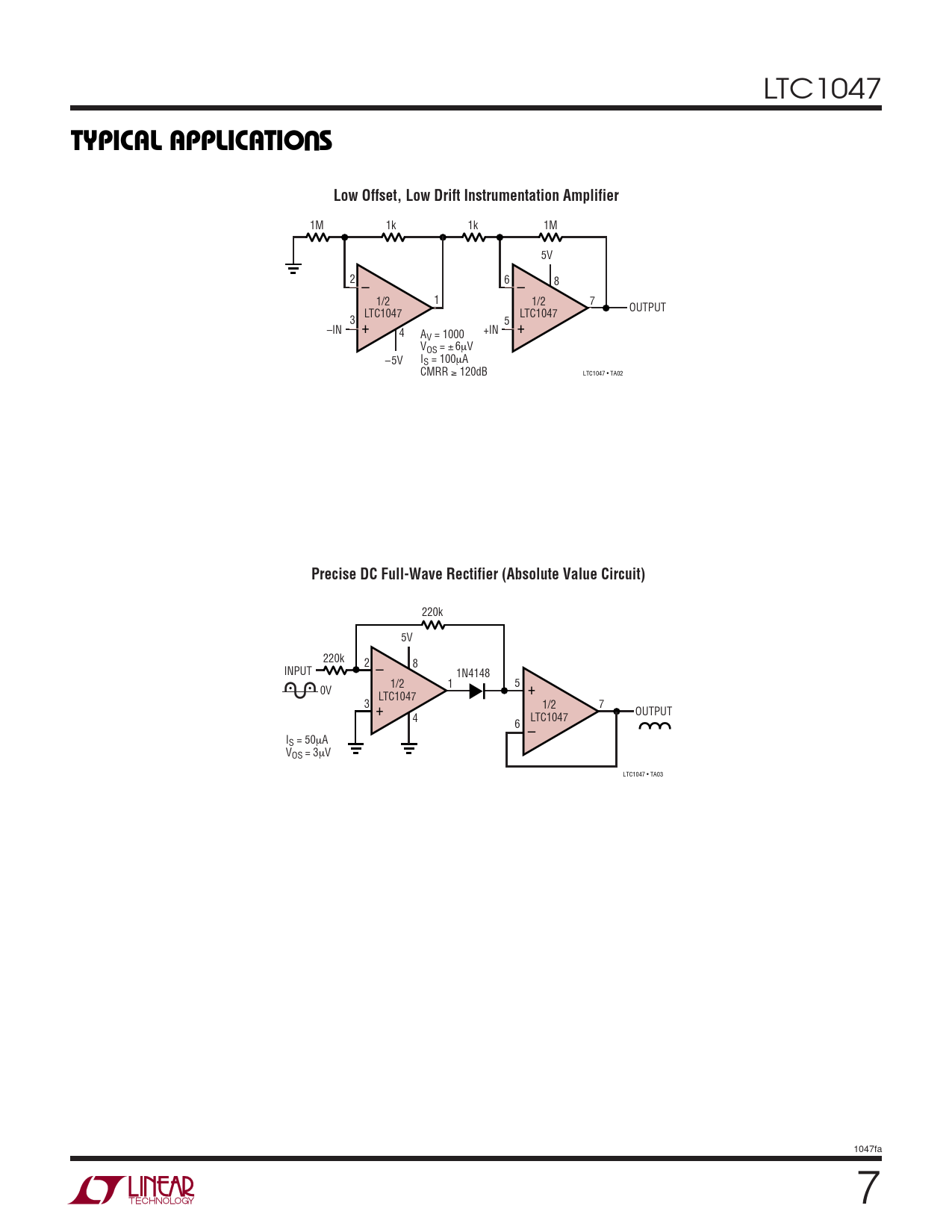

TYPICAL APPLICATIO S. Low Offset, Low Drift Instrumentation Amplifier
Model Line for this Datasheet
Text Version of Document
LTC1047
U TYPICAL APPLICATIO S Low Offset, Low Drift Instrumentation Amplifier
1M 1k 1k 1M 5V 2 6 8 – – 1/2 1 1/2 7 OUTPUT LTC1047 LTC1047 3 5 –IN + + A +IN 4 V = 1000 VOS = ± 6µV –5V IS = 100µA CMRR ≥ 120dB LTC1047 • TA02
Precise DC Full-Wave Rectifier (Absolute Value Circuit)
220k 5V 220k 2 8 INPUT – 1N4148 1/2 1 5 0V + LTC1047 3 1/2 7 + OUTPUT 4 LTC1047 6 – IS = 50µA VOS = 3µV LTC1047 • TA03 1047fa 7
