Datasheet LTC1049 (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | Low Power Zero-Drift Operational Amplifier with Internal Capacitors |
| Pages / Page | 12 / 10 — package DescripTion. N8 Package. 8-Lead PDIP (Narrow .300 Inch) |
| File Format / Size | PDF / 203 Kb |
| Document Language | English |
package DescripTion. N8 Package. 8-Lead PDIP (Narrow .300 Inch)
Model Line for this Datasheet
Text Version of Document
LTC1049
package DescripTion N8 Package 8-Lead PDIP (Narrow .300 Inch)

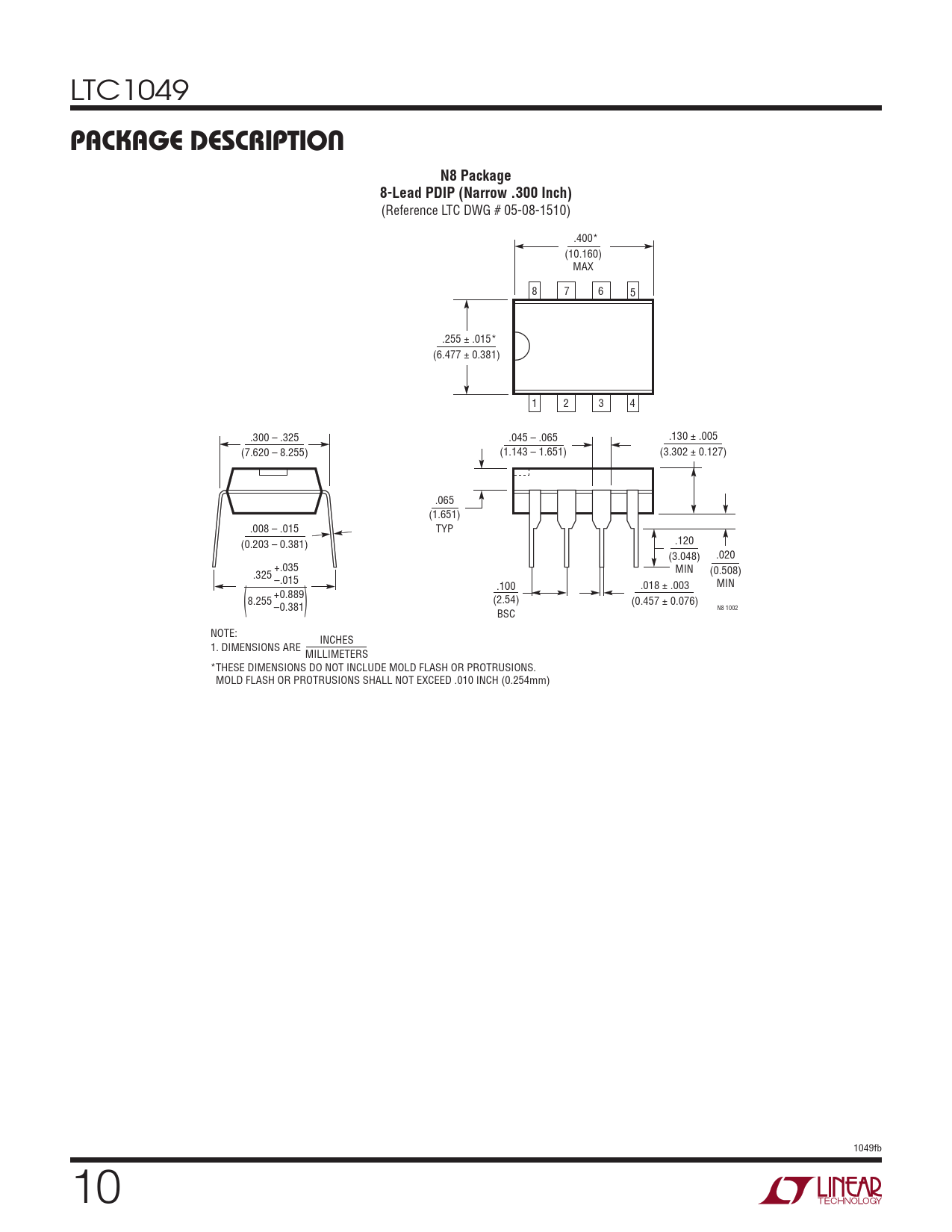

(Reference LTC DWG # 05-08-1510) .400* (10.160) MAX 8 7 6 5 .255 ± .015* (6.477 ± 0.381) 1 2 3 4 .300 – .325 .045 – .065 .130 ± .005 (7.620 – 8.255) (1.143 – 1.651) (3.302 ± 0.127) .065 (1.651) .008 – .015 TYP .120 (0.203 – 0.381) (3.048) .020 +.035 MIN (0.508) .325 –.015 .100 .018 ± .003 MIN +0.889 8.255 (2.54) (0.457 ± 0.076) ( ) –0.381 N8 1002 BSC NOTE: INCHES 1. DIMENSIONS ARE MILLIMETERS *THESE DIMENSIONS DO NOT INCLUDE MOLD FLASH OR PROTRUSIONS. MOLD FLASH OR PROTRUSIONS SHALL NOT EXCEED .010 INCH (0.254mm) 1049fb 10 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Package/order information Electrical Characteristics Typical Performance Characteristics Test Circuits Applications Information Typical Applications Package Description Typical Application
