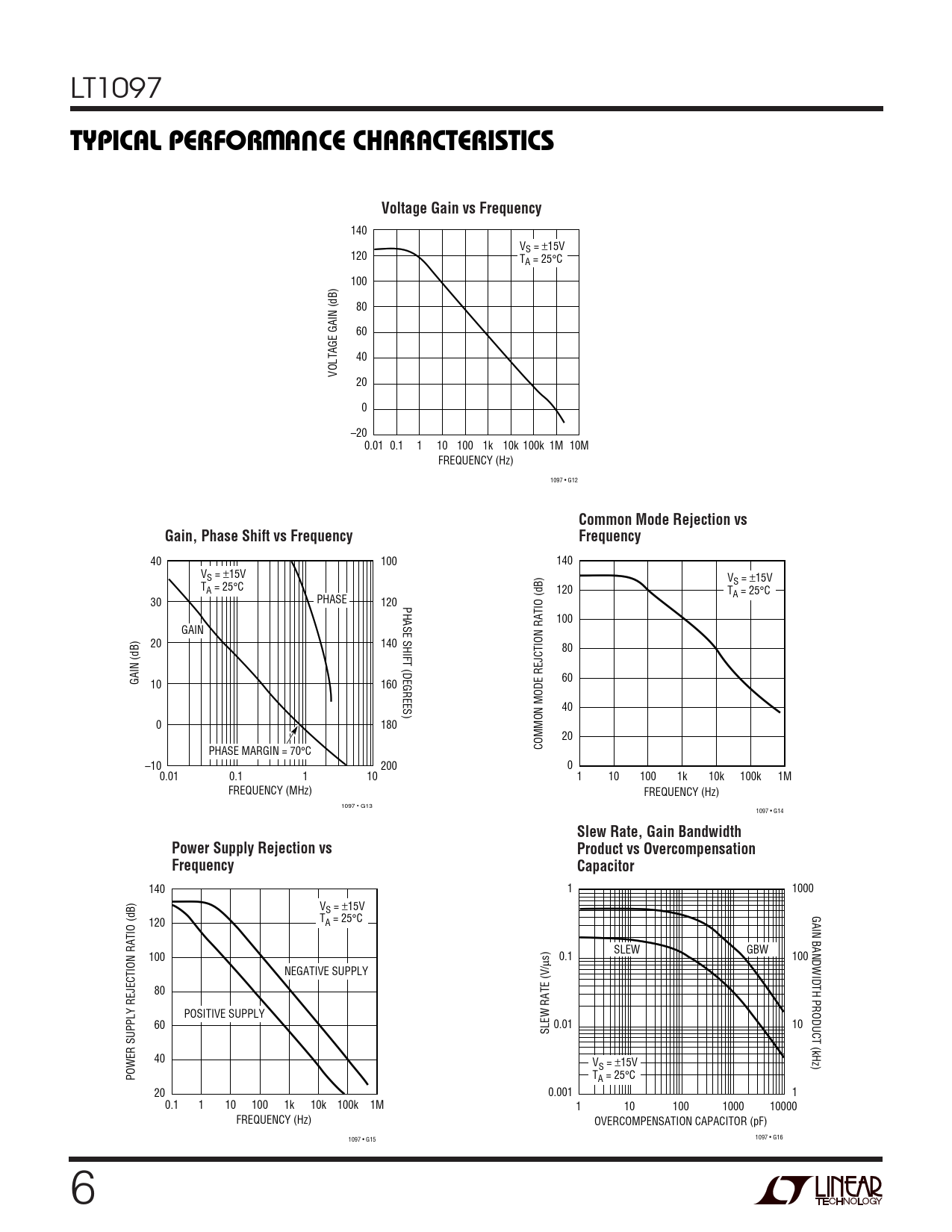

TYPICAL PERFORMANCE CHARACTERISTICS. Voltage Gain vs Frequency. Common Mode Rejection vs. Gain, Phase Shift vs Frequency

TYPICAL PERFORMANCE CHARACTERISTICS Voltage Gain vs Frequency Common Mode Rejection vs Gain, Phase Shift vs Frequency

Model Line for this Datasheet

Text Version of Document

LT1097
W U TYPICAL PERFORMANCE CHARACTERISTICS Voltage Gain vs Frequency
140 VS = ±15V 120 TA = 25°C 100 80 60 40 VOLTAGE GAIN (dB) 20 0 –20 0.01 0.1 1 10 100 1k 10k 100k 1M 10M FREQUENCY (Hz) 1097 • G12
Common Mode Rejection vs Gain, Phase Shift vs Frequency Frequency
40 100 140 VS = ±15V V T S = ±15V A = 25°C 120 TA = 25°C 30 PHASE 120 PHASE SHIFT (DEGREES) 100 GAIN 20 140 80 GAIN (dB) 60 10 160 40 0 180 20 PHASE MARGIN = 70°C COMMON MODE REJCTION RATIO (dB) –10 200 0 0.01 0.1 1 10 1 10 100 1k 10k 100k 1M FREQUENCY (MHz) FREQUENCY (Hz) 1097 • G13 1097 • G14
Slew Rate, Gain Bandwidth Power Supply Rejection vs Product vs Overcompensation Frequency Capacitor
140 1 1000 VS = ±15V GAIN BANDWIDTH PRODUCT (kHz) 120 TA = 25°C SLEW GBW 100 µs) 0.1 100 NEGATIVE SUPPLY 80 POSITIVE SUPPLY 60 0.01 10 SLEW RATE (V/ 40 VS = ±15V POWER SUPPLY REJECTION RATIO (dB) TA = 25°C 20 0.001 1 0.1 1 10 100 1k 10k 100k 1M 1 10 100 1000 10000 FREQUENCY (Hz) OVERCOMPENSATION CAPACITOR (pF) 1097 • G15 1097 • G16 6
