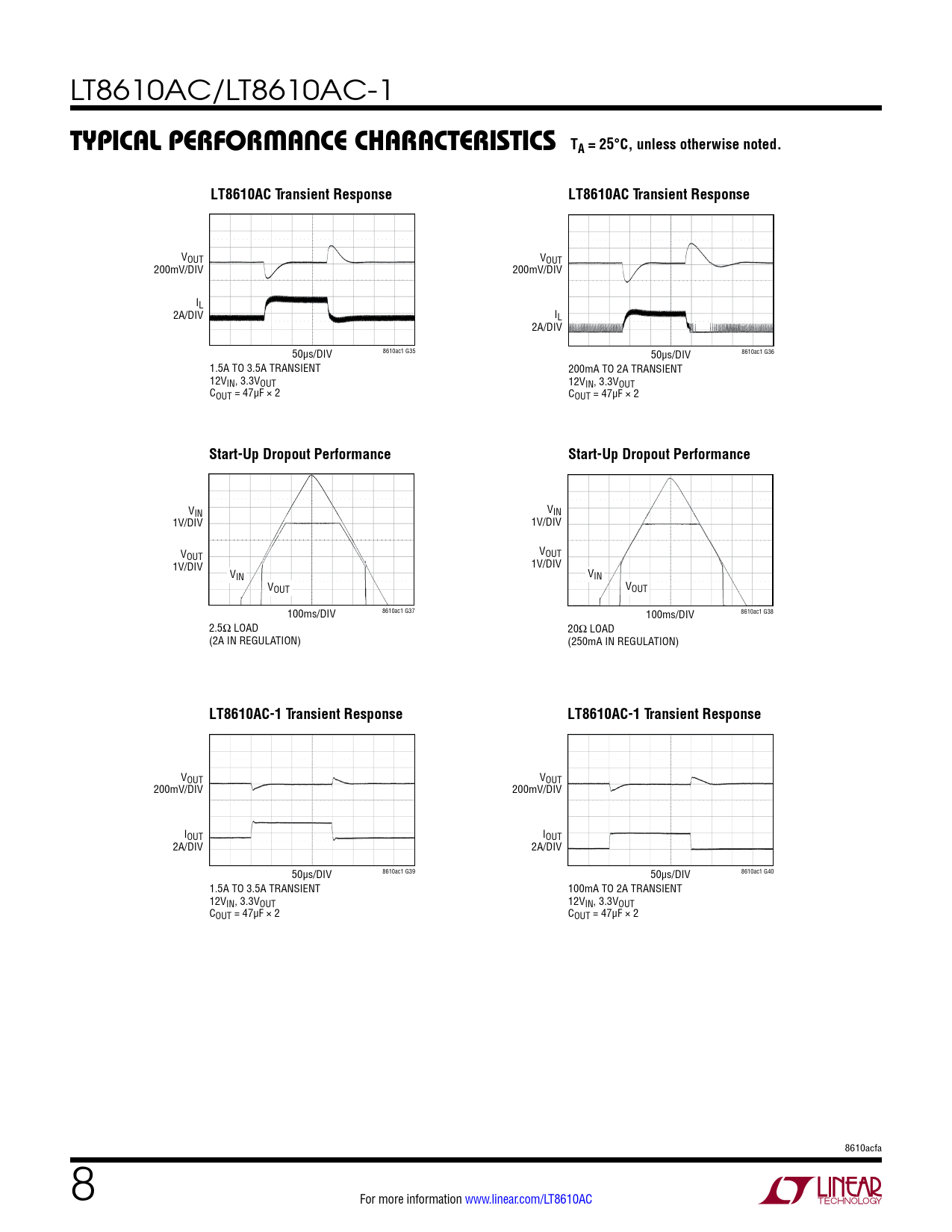

Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. LT8610AC Transient Response
Text Version of Document
LT8610AC/LT8610AC-1
Typical perForMance characTerisTics TA = 25°C, unless otherwise noted. LT8610AC Transient Response LT8610AC Transient Response
VOUT VOUT 200mV/DIV 200mV/DIV IL 2A/DIV IL 2A/DIV 50µs/DIV 8610ac1 G35 50µs/DIV 8610ac1 G36 1.5A TO 3.5A TRANSIENT 200mA TO 2A TRANSIENT 12VIN, 3.3VOUT 12VIN, 3.3VOUT COUT = 47µF × 2 COUT = 47µF × 2
Start-Up Dropout Performance Start-Up Dropout Performance
VIN VIN 1V/DIV 1V/DIV V V OUT OUT 1V/DIV 1V/DIV VIN VIN VOUT VOUT 100ms/DIV 8610ac1 G37 100ms/DIV 8610ac1 G38 2.5Ω LOAD 20Ω LOAD (2A IN REGULATION) (250mA IN REGULATION)
LT8610AC-1 Transient Response LT8610AC-1 Transient Response
VOUT VOUT 200mV/DIV 200mV/DIV IOUT IOUT 2A/DIV 2A/DIV 50µs/DIV 8610ac1 G39 50µs/DIV 8610ac1 G40 1.5A TO 3.5A TRANSIENT 100mA TO 2A TRANSIENT 12VIN, 3.3VOUT 12VIN, 3.3VOUT COUT = 47µF × 2 COUT = 47µF × 2 8610acfa 8 For more information www.linear.com/LT8610AC Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Typical Application Related Parts
