| Description | 42V, 6A Synchronous Step-Down Regulator with 3μA Quiescent Current |
| Pages / Page | 22 / 5 — TYPICAL PERFORMANCE CHARACTERISTICS. Top FET Current Limit vs Duty. No … |
| File Format / Size | PDF / 365 Kb |
| Document Language | English |

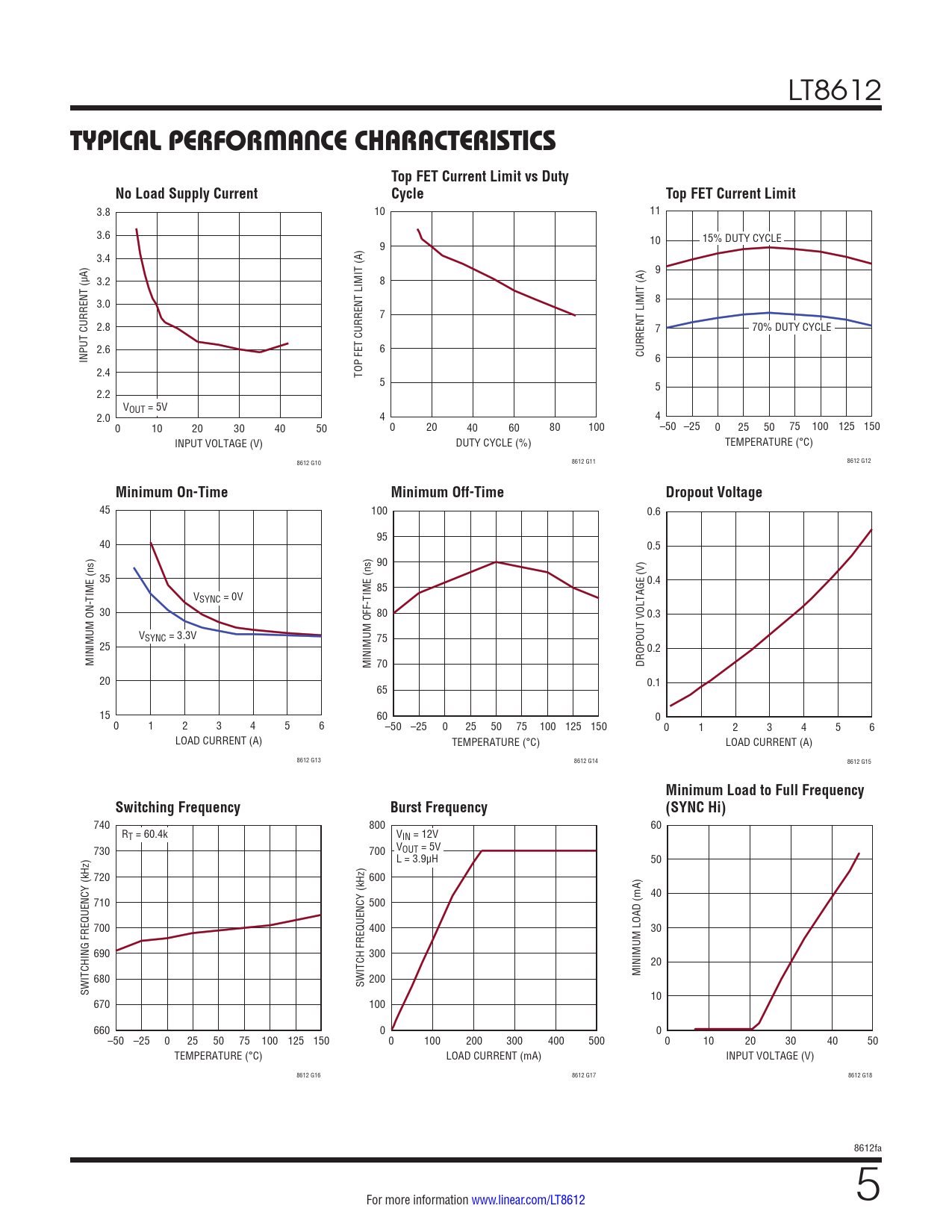

TYPICAL PERFORMANCE CHARACTERISTICS. Top FET Current Limit vs Duty. No Load Supply Current. Cycle. Top FET Current Limit
