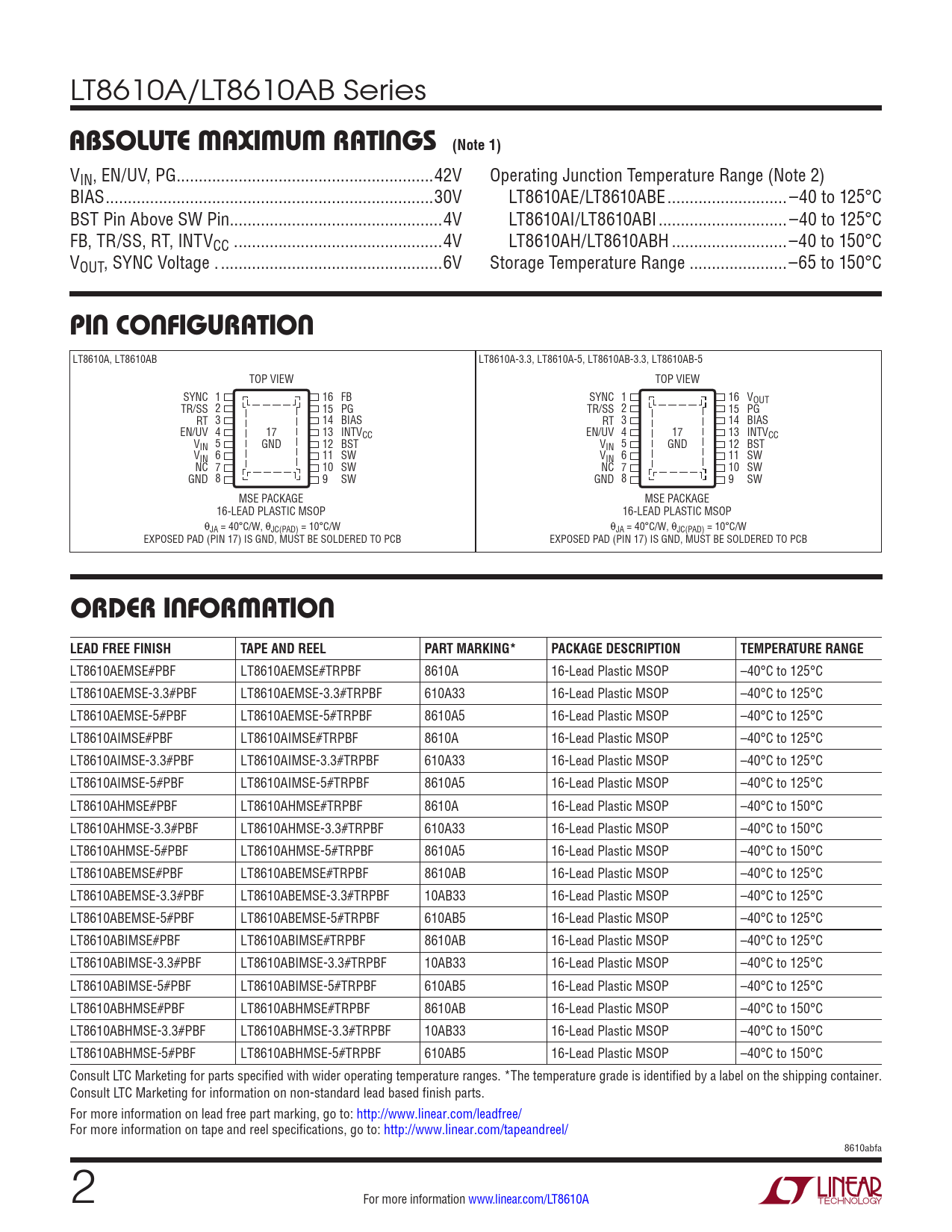

Datasheet LT8610A, LT8610AB (Analog Devices) - 2

LT8610A/LT8610AB Series
ABSOLUTE MAXIMUM RATINGS (Note 1)
VIN, EN/UV, PG ..42V Operating Junction Temperature Range (Note 2) BIAS ..30V LT8610AE/LT8610ABE ... –40 to 125°C BST Pin Above SW Pin..4V LT8610AI/LT8610ABI ... –40 to 125°C FB, TR/SS, RT, INTVCC . ..4V LT8610AH/LT8610ABH ..–40 to 150°C VOUT, SYNC Voltage . ..6V Storage Temperature Range ..–65 to 150°C
PIN CONFIGURATION
LT8610A, LT8610AB LT8610A-3.3, LT8610A-5, LT8610AB-3.3, LT8610AB-5 TOP VIEW TOP VIEW SYNC 1 16 FB SYNC 1 16 VOUT TR/SS 2 15 PG TR/SS 2 15 PG RT 3 14 BIAS RT 3 14 BIAS EN/UV 4 17 13 INTVCC EN/UV 4 17 13 INTVCC V 5 IN GND 12 BST V 5 IN GND 12 BST V 6 IN 11 SW V 6 IN 11 SW NC 7 10 SW NC 7 10 SW GND 8 9 SW GND 8 9 SW MSE PACKAGE MSE PACKAGE 16-LEAD PLASTIC MSOP 16-LEAD PLASTIC MSOP θJA = 40°C/W, θJC(PAD) = 10°C/W θJA = 40°C/W, θJC(PAD) = 10°C/W EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT8610AEMSE#PBF LT8610AEMSE#TRPBF 8610A 16-Lead Plastic MSOP –40°C to 125°C LT8610AEMSE-3.3#PBF LT8610AEMSE-3.3#TRPBF 610A33 16-Lead Plastic MSOP –40°C to 125°C LT8610AEMSE-5#PBF LT8610AEMSE-5#TRPBF 8610A5 16-Lead Plastic MSOP –40°C to 125°C LT8610AIMSE#PBF LT8610AIMSE#TRPBF 8610A 16-Lead Plastic MSOP –40°C to 125°C LT8610AIMSE-3.3#PBF LT8610AIMSE-3.3#TRPBF 610A33 16-Lead Plastic MSOP –40°C to 125°C LT8610AIMSE-5#PBF LT8610AIMSE-5#TRPBF 8610A5 16-Lead Plastic MSOP –40°C to 125°C LT8610AHMSE#PBF LT8610AHMSE#TRPBF 8610A 16-Lead Plastic MSOP –40°C to 150°C LT8610AHMSE-3.3#PBF LT8610AHMSE-3.3#TRPBF 610A33 16-Lead Plastic MSOP –40°C to 150°C LT8610AHMSE-5#PBF LT8610AHMSE-5#TRPBF 8610A5 16-Lead Plastic MSOP –40°C to 150°C LT8610ABEMSE#PBF LT8610ABEMSE#TRPBF 8610AB 16-Lead Plastic MSOP –40°C to 125°C LT8610ABEMSE-3.3#PBF LT8610ABEMSE-3.3#TRPBF 10AB33 16-Lead Plastic MSOP –40°C to 125°C LT8610ABEMSE-5#PBF LT8610ABEMSE-5#TRPBF 610AB5 16-Lead Plastic MSOP –40°C to 125°C LT8610ABIMSE#PBF LT8610ABIMSE#TRPBF 8610AB 16-Lead Plastic MSOP –40°C to 125°C LT8610ABIMSE-3.3#PBF LT8610ABIMSE-3.3#TRPBF 10AB33 16-Lead Plastic MSOP –40°C to 125°C LT8610ABIMSE-5#PBF LT8610ABIMSE-5#TRPBF 610AB5 16-Lead Plastic MSOP –40°C to 125°C LT8610ABHMSE#PBF LT8610ABHMSE#TRPBF 8610AB 16-Lead Plastic MSOP –40°C to 150°C LT8610ABHMSE-3.3#PBF LT8610ABHMSE-3.3#TRPBF 10AB33 16-Lead Plastic MSOP –40°C to 150°C LT8610ABHMSE-5#PBF LT8610ABHMSE-5#TRPBF 610AB5 16-Lead Plastic MSOP –40°C to 150°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 8610abfa 2 For more information www.linear.com/LT8610A Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
