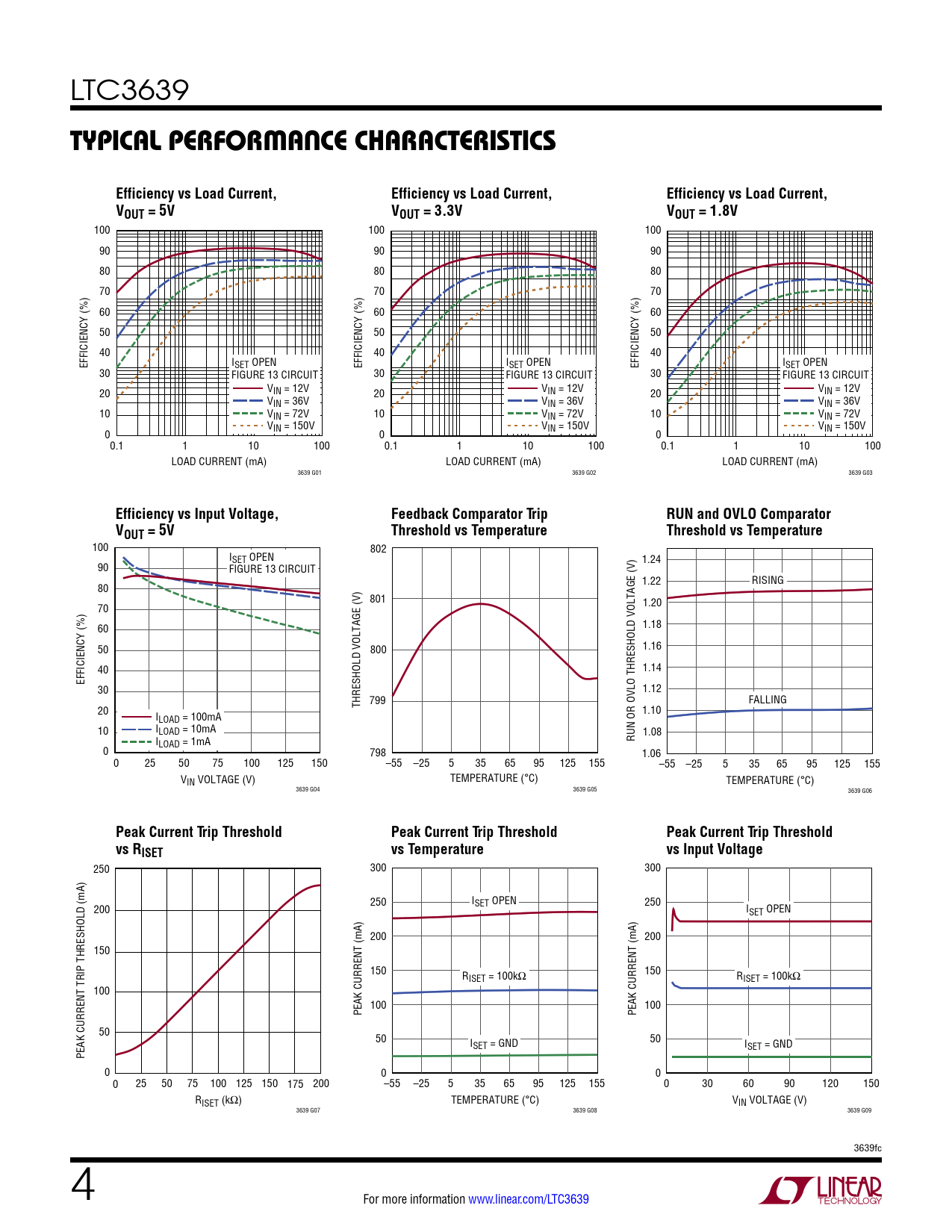

TYPICAL PERFORMANCE CHARACTERISTICS. Efficiency vs Load Current,. VOUT = 5V. VOUT = 3.3V. VOUT = 1.8V
