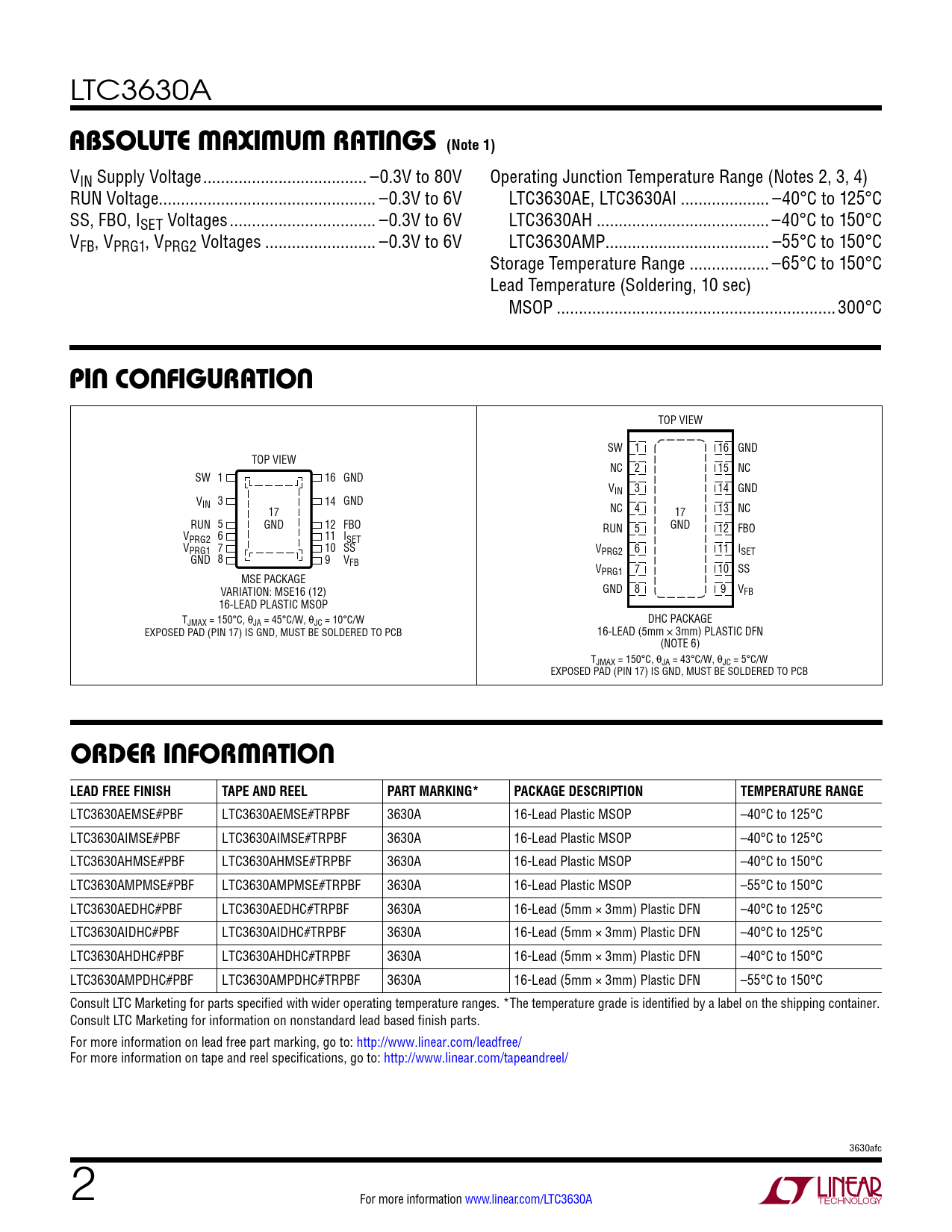

LTC3630A
absoluTe MaxiMuM raTings (Note 1)
VIN Supply Voltage ... –0.3V to 80V Operating Junction Temperature Range (Notes 2, 3, 4) RUN Voltage... –0.3V to 6V LTC3630AE, LTC3630AI .. –40°C to 125°C SS, FBO, ISET Voltages ... –0.3V to 6V LTC3630AH ... –40°C to 150°C VFB, VPRG1, VPRG2 Voltages ... –0.3V to 6V LTC3630AMP ... –55°C to 150°C Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) MSOP ...300°C
pin conFiguraTion
TOP VIEW SW 1 16 GND TOP VIEW NC 2 15 NC SW 1 16 GND VIN 3 14 GND V 3 IN 14 GND 17 NC 4 13 17 NC RUN 5 GND 12 FBO GND RUN 5 12 FBO V 6 PRG2 11 ISET V 7 PRG1 10 SS VPRG2 6 11 ISET GND 8 9 VFB VPRG1 7 10 SS MSE PACKAGE VARIATION: MSE16 (12) GND 8 9 VFB 16-LEAD PLASTIC MSOP TJMAX = 150°C, θJA = 45°C/W, θJC = 10°C/W DHC PACKAGE EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB 16-LEAD (5mm × 3mm) PLASTIC DFN (NOTE 6) TJMAX = 150°C, θJA = 43°C/W, θJC = 5°C/W EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3630AEMSE#PBF LTC3630AEMSE#TRPBF 3630A 16-Lead Plastic MSOP –40°C to 125°C LTC3630AIMSE#PBF LTC3630AIMSE#TRPBF 3630A 16-Lead Plastic MSOP –40°C to 125°C LTC3630AHMSE#PBF LTC3630AHMSE#TRPBF 3630A 16-Lead Plastic MSOP –40°C to 150°C LTC3630AMPMSE#PBF LTC3630AMPMSE#TRPBF 3630A 16-Lead Plastic MSOP –55°C to 150°C LTC3630AEDHC#PBF LTC3630AEDHC#TRPBF 3630A 16-Lead (5mm × 3mm) Plastic DFN –40°C to 125°C LTC3630AIDHC#PBF LTC3630AIDHC#TRPBF 3630A 16-Lead (5mm × 3mm) Plastic DFN –40°C to 125°C LTC3630AHDHC#PBF LTC3630AHDHC#TRPBF 3630A 16-Lead (5mm × 3mm) Plastic DFN –40°C to 150°C LTC3630AMPDHC#PBF LTC3630AMPDHC#TRPBF 3630A 16-Lead (5mm × 3mm) Plastic DFN –55°C to 150°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 3630afc 2 For more information www.linear.com/LTC3630A Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
