Datasheet LTC3890-1 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 60V Low IQ, Dual, 2-Phase Synchronous Step-Down DC/DC Controller |
| Pages / Page | 36 / 7 — TYPICAL PERFORMANCE CHARACTERISTICS. TRACK/SS Pull-Up Current. Shutdown … |
| File Format / Size | PDF / 898 Kb |
| Document Language | English |

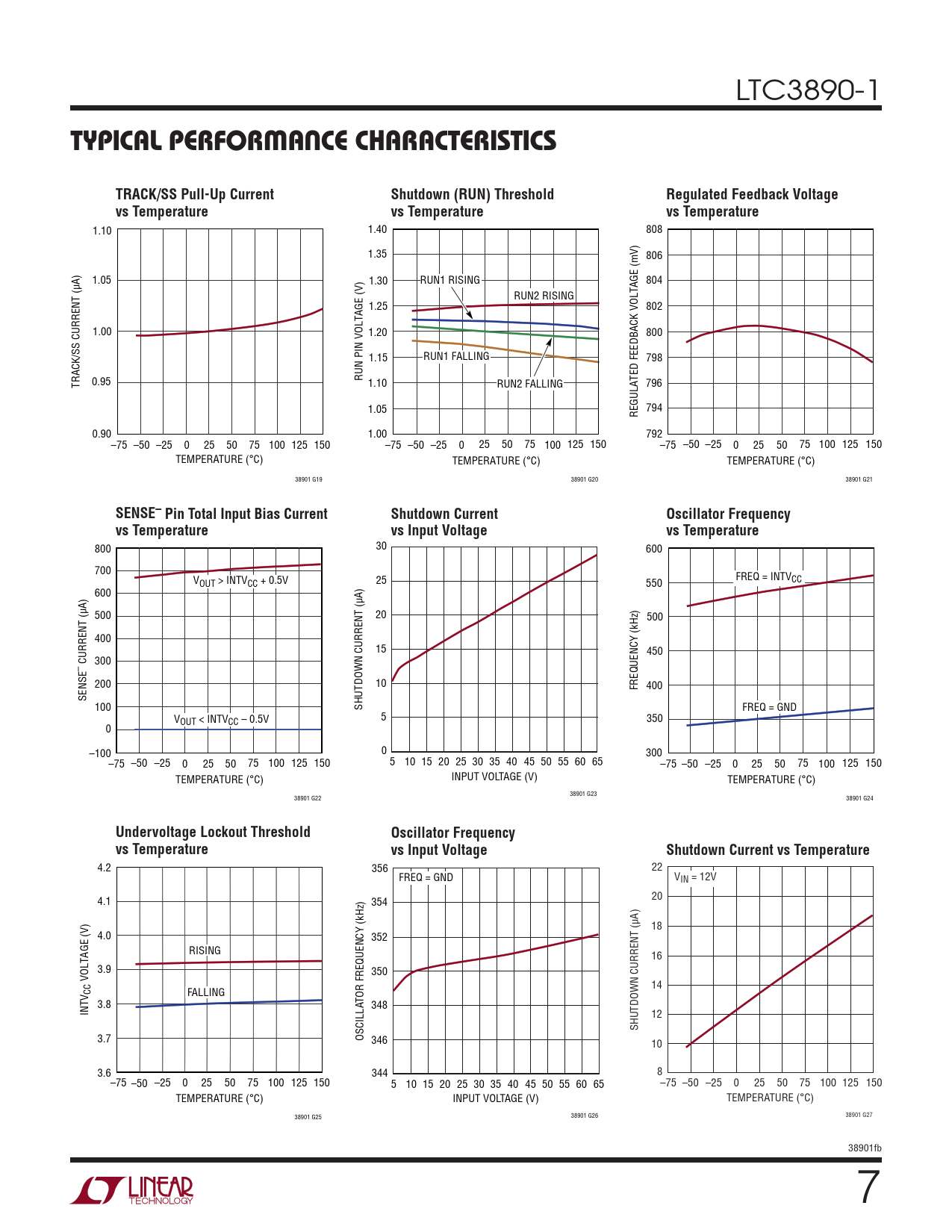

TYPICAL PERFORMANCE CHARACTERISTICS. TRACK/SS Pull-Up Current. Shutdown (RUN) Threshold. Regulated Feedback Voltage
Model Line for this Datasheet
Text Version of Document
LTC3890-1
TYPICAL PERFORMANCE CHARACTERISTICS TRACK/SS Pull-Up Current Shutdown (RUN) Threshold Regulated Feedback Voltage vs Temperature vs Temperature vs Temperature
1.10 1.40 808 1.35 806 1.05 1.30 RUN1 RISING 804 RUN2 RISING 1.25 802 1.00 1.20 800 1.15 RUN1 FALLING 798 RUN PIN VOLTAGE (V) TRACK/SS CURRENT (µA) 0.95 1.10 RUN2 FALLING 796 1.05 REGULATED FEEDBACK VOLTAGE (mV) 794 0.90 1.00 792 –75 –50 –25 0 25 50 75 100 125 150 –75 –50 –25 0 25 50 75 100 125 150 –75 –50 –25 0 25 50 75 100 125 150 TEMPERATURE (°C) TEMPERATURE (°C) TEMPERATURE (°C) 38901 G19 38901 G20 38901 G21
SENSE– Pin Total Input Bias Current Shutdown Current Oscillator Frequency vs Temperature vs Input Voltage vs Temperature
800 30 600 700 VOUT > INTVCC + 0.5V 25 550 FREQ = INTVCC 600 500 20 500 400 15 450 300 – CURRENT (µA) 200 10 FREQUENCY (kHz) 400 SENSE 100 SHUTDOWN CURRENT (µA) FREQ = GND V 5 OUT < INTVCC – 0.5V 350 0 0 –100 300 –75 –50 –25 0 25 50 75 100 125 150 5 10 15 20 25 30 35 40 45 50 55 60 65 –75 –50 –25 0 25 50 75 100 125 150 INPUT VOLTAGE (V) TEMPERATURE (°C) TEMPERATURE (°C) 38901 G23 38901 G22 38901 G24
Undervoltage Lockout Threshold Oscillator Frequency vs Temperature vs Input Voltage Shutdown Current vs Temperature
4.2 356 22 FREQ = GND VIN = 12V 4.1 354 20 18 4.0 352 RISING 16 3.9 350 VOLTAGE (V) 14 CC FALLING TOR FREQUENCY (kHz) 3.8 348 INTV 12 SHUTDOWN CURRENT (µA) 3.7 OSCILLA 346 10 3.6 344 8 –75 –50 –25 0 25 50 75 100 125 150 5 10 15 20 25 30 35 40 45 50 55 60 65 –75 –50 –25 0 25 50 75 100 125 150 TEMPERATURE (°C) INPUT VOLTAGE (V) TEMPERATURE (°C) 38901 G25 38901 G26 38901 G27 38901fb 7 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Functional Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
