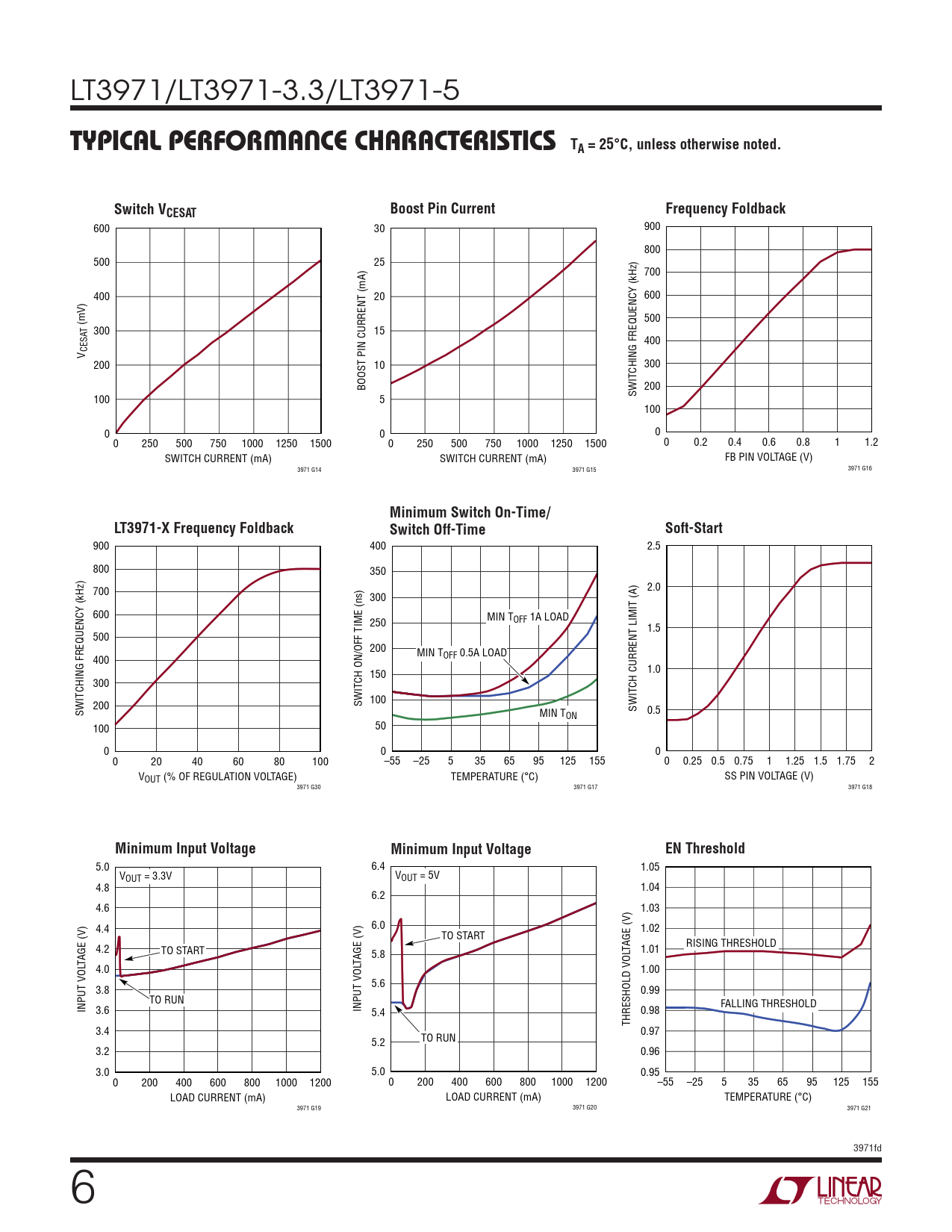

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. Switch VCESAT. Boost Pin Current. Frequency Foldback
