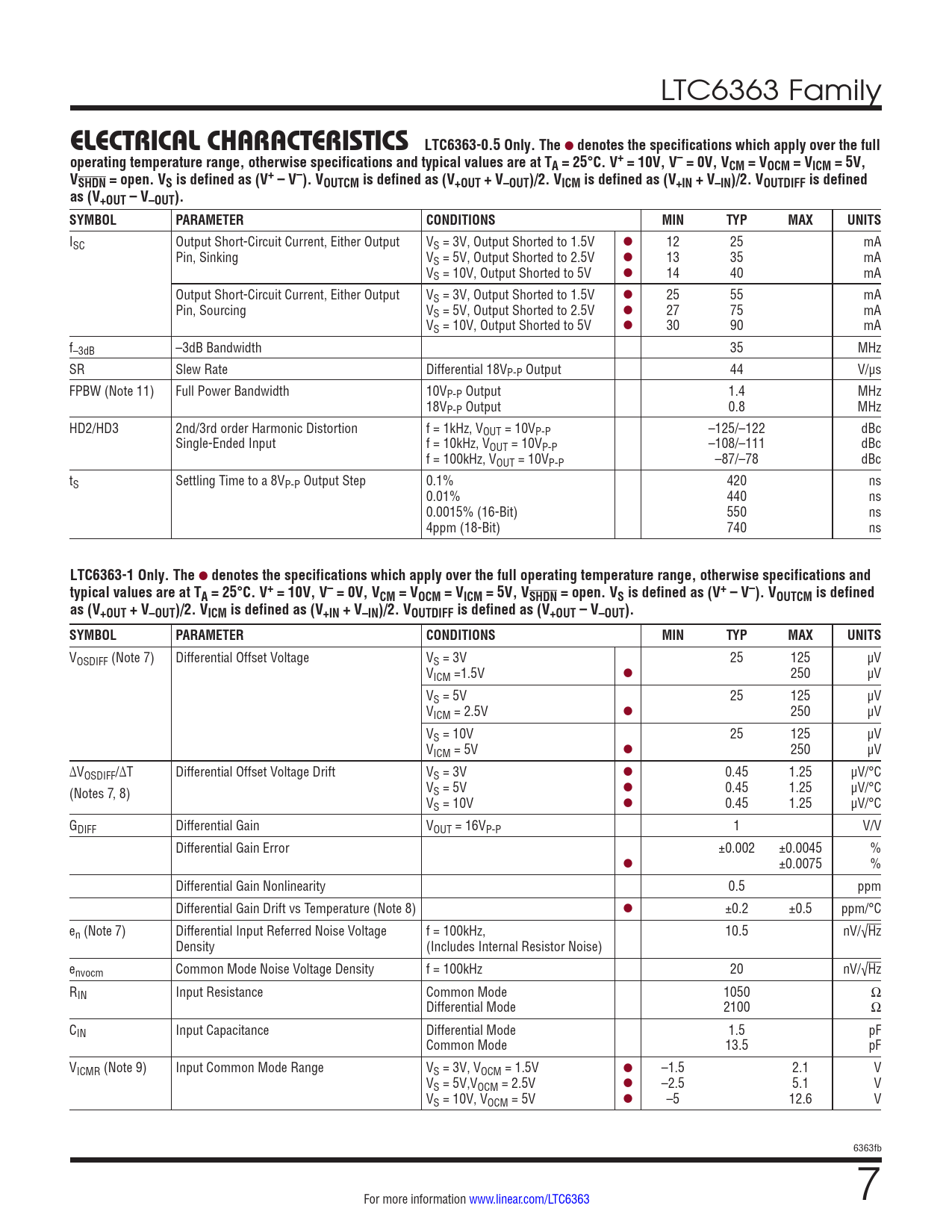

LTC6363 Family ELECTRICAL CHARACTERISTICS
LTC6363-0.5 Only. The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications and typical values are at TA = 25°C. V+ = 10V, V– = 0V, VCM = VOCM = VICM = 5V, VSHDN = open. VS is defined as (V+ – V–). VOUTCM is defined as (V+OUT + V–OUT)/2. VICM is defined as (V+IN + V–IN)/2. VOUTDIFF is defined as (V+OUT – V–OUT). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
ISC Output Short-Circuit Current, Either Output VS = 3V, Output Shorted to 1.5V l 12 25 mA Pin, Sinking VS = 5V, Output Shorted to 2.5V l 13 35 mA VS = 10V, Output Shorted to 5V l 14 40 mA Output Short-Circuit Current, Either Output VS = 3V, Output Shorted to 1.5V l 25 55 mA Pin, Sourcing VS = 5V, Output Shorted to 2.5V l 27 75 mA VS = 10V, Output Shorted to 5V l 30 90 mA f–3dB –3dB Bandwidth 35 MHz SR Slew Rate Differential 18VP-P Output 44 V/µs FPBW (Note 11) Full Power Bandwidth 10VP-P Output 1.4 MHz 18VP-P Output 0.8 MHz HD2/HD3 2nd/3rd order Harmonic Distortion f = 1kHz, VOUT = 10VP-P –125/–122 dBc Single-Ended Input f = 10kHz, VOUT = 10VP-P –108/–111 dBc f = 100kHz, VOUT = 10VP-P –87/–78 dBc tS Settling Time to a 8VP-P Output Step 0.1% 420 ns 0.01% 440 ns 0.0015% (16-Bit) 550 ns 4ppm (18-Bit) 740 ns
