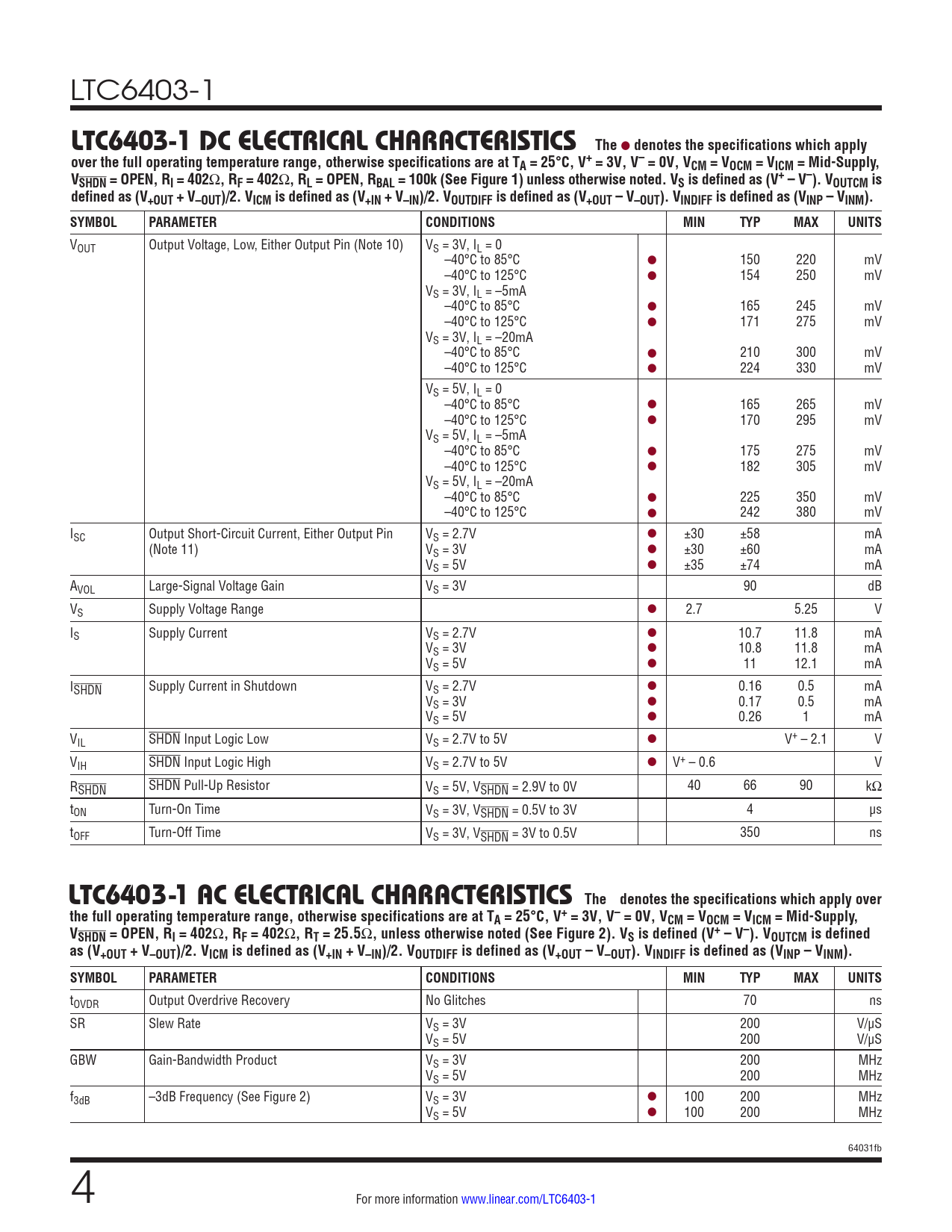

LTC6403-1 DC ELECTRICAL CHARACTERISTICS The. denotes the specifications which apply
Model Line for this Datasheet
Text Version of Document
LTC6403-1
LTC6403-1 DC ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, V+ = 3V, V– = 0V, VCM = VOCM = VICM = Mid-Supply, VSHDN = OPEN, RI = 402
Ω
, RF = 402
Ω
, RL = OPEN, RBAL = 100k (See Figure 1) unless otherwise noted. VS is defined as (V+ – V–). VOUTCM is defined as (V+OUT + V–OUT)/2. VICM is defined as (V+IN + V–IN)/2. VOUTDIFF is defined as (V+OUT – V–OUT). VINDIFF is defined as (VINP – VINM). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOUT Output Voltage, Low, Either Output Pin (Note 10) VS = 3V, IL = 0 –40°C to 85°C l 150 220 mV –40°C to 125°C l 154 250 mV VS = 3V, IL = –5mA –40°C to 85°C l 165 245 mV –40°C to 125°C l 171 275 mV VS = 3V, IL = –20mA –40°C to 85°C l 210 300 mV –40°C to 125°C l 224 330 mV VS = 5V, IL = 0 –40°C to 85°C l 165 265 mV –40°C to 125°C l 170 295 mV VS = 5V, IL = –5mA –40°C to 85°C l 175 275 mV –40°C to 125°C l 182 305 mV VS = 5V, IL = –20mA –40°C to 85°C l 225 350 mV –40°C to 125°C l 242 380 mV ISC Output Short-Circuit Current, Either Output Pin VS = 2.7V l ±30 ±58 mA (Note 11) VS = 3V l ±30 ±60 mA VS = 5V l ±35 ±74 mA AVOL Large-Signal Voltage Gain VS = 3V 90 dB VS Supply Voltage Range l 2.7 5.25 V IS Supply Current VS = 2.7V l 10.7 11.8 mA VS = 3V l 10.8 11.8 mA VS = 5V l 11 12.1 mA ISHDN Supply Current in Shutdown VS = 2.7V l 0.16 0.5 mA VS = 3V l 0.17 0.5 mA VS = 5V l 0.26 1 mA VIL SHDN Input Logic Low VS = 2.7V to 5V l V+ – 2.1 V VIH SHDN Input Logic High VS = 2.7V to 5V l V+ – 0.6 V RSHDN SHDN Pull-Up Resistor VS = 5V, VSHDN = 2.9V to 0V 40 66 90 kΩ tON Turn-On Time VS = 3V, VSHDN = 0.5V to 3V 4 µs tOFF Turn-Off Time VS = 3V, VSHDN = 3V to 0.5V 350 ns
LTC6403-1 AC ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, V+ = 3V, V– = 0V, VCM = VOCM = VICM = Mid-Supply, VSHDN = OPEN, RI = 402
Ω
, RF = 402
Ω
, RT = 25.5
Ω
, unless otherwise noted (See Figure 2). VS is defined (V+ – V–). VOUTCM is defined as (V+OUT + V–OUT)/2. VICM is defined as (V+IN + V–IN)/2. VOUTDIFF is defined as (V+OUT – V–OUT). VINDIFF is defined as (VINP – VINM). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
tOVDR Output Overdrive Recovery No Glitches 70 ns SR Slew Rate VS = 3V 200 V/µS VS = 5V 200 V/µS GBW Gain-Bandwidth Product VS = 3V 200 MHz VS = 5V 200 MHz f3dB –3dB Frequency (See Figure 2) VS = 3V l 100 200 MHz VS = 5V l 100 200 MHz 64031fb 4 For more information www.linear.com/LTC6403-1
LTC6403-1 DC ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, V+ = 3V, V– = 0V, VCM = VOCM = VICM = Mid-Supply, VSHDN = OPEN, RI = 402
Ω
, RF = 402
Ω
, RL = OPEN, RBAL = 100k (See Figure 1) unless otherwise noted. VS is defined as (V+ – V–). VOUTCM is defined as (V+OUT + V–OUT)/2. VICM is defined as (V+IN + V–IN)/2. VOUTDIFF is defined as (V+OUT – V–OUT). VINDIFF is defined as (VINP – VINM). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOUT Output Voltage, Low, Either Output Pin (Note 10) VS = 3V, IL = 0 –40°C to 85°C l 150 220 mV –40°C to 125°C l 154 250 mV VS = 3V, IL = –5mA –40°C to 85°C l 165 245 mV –40°C to 125°C l 171 275 mV VS = 3V, IL = –20mA –40°C to 85°C l 210 300 mV –40°C to 125°C l 224 330 mV VS = 5V, IL = 0 –40°C to 85°C l 165 265 mV –40°C to 125°C l 170 295 mV VS = 5V, IL = –5mA –40°C to 85°C l 175 275 mV –40°C to 125°C l 182 305 mV VS = 5V, IL = –20mA –40°C to 85°C l 225 350 mV –40°C to 125°C l 242 380 mV ISC Output Short-Circuit Current, Either Output Pin VS = 2.7V l ±30 ±58 mA (Note 11) VS = 3V l ±30 ±60 mA VS = 5V l ±35 ±74 mA AVOL Large-Signal Voltage Gain VS = 3V 90 dB VS Supply Voltage Range l 2.7 5.25 V IS Supply Current VS = 2.7V l 10.7 11.8 mA VS = 3V l 10.8 11.8 mA VS = 5V l 11 12.1 mA ISHDN Supply Current in Shutdown VS = 2.7V l 0.16 0.5 mA VS = 3V l 0.17 0.5 mA VS = 5V l 0.26 1 mA VIL SHDN Input Logic Low VS = 2.7V to 5V l V+ – 2.1 V VIH SHDN Input Logic High VS = 2.7V to 5V l V+ – 0.6 V RSHDN SHDN Pull-Up Resistor VS = 5V, VSHDN = 2.9V to 0V 40 66 90 kΩ tON Turn-On Time VS = 3V, VSHDN = 0.5V to 3V 4 µs tOFF Turn-Off Time VS = 3V, VSHDN = 3V to 0.5V 350 ns
LTC6403-1 AC ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C, V+ = 3V, V– = 0V, VCM = VOCM = VICM = Mid-Supply, VSHDN = OPEN, RI = 402
Ω
, RF = 402
Ω
, RT = 25.5
Ω
, unless otherwise noted (See Figure 2). VS is defined (V+ – V–). VOUTCM is defined as (V+OUT + V–OUT)/2. VICM is defined as (V+IN + V–IN)/2. VOUTDIFF is defined as (V+OUT – V–OUT). VINDIFF is defined as (VINP – VINM). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
tOVDR Output Overdrive Recovery No Glitches 70 ns SR Slew Rate VS = 3V 200 V/µS VS = 5V 200 V/µS GBW Gain-Bandwidth Product VS = 3V 200 MHz VS = 5V 200 MHz f3dB –3dB Frequency (See Figure 2) VS = 3V l 100 200 MHz VS = 5V l 100 200 MHz 64031fb 4 For more information www.linear.com/LTC6403-1
