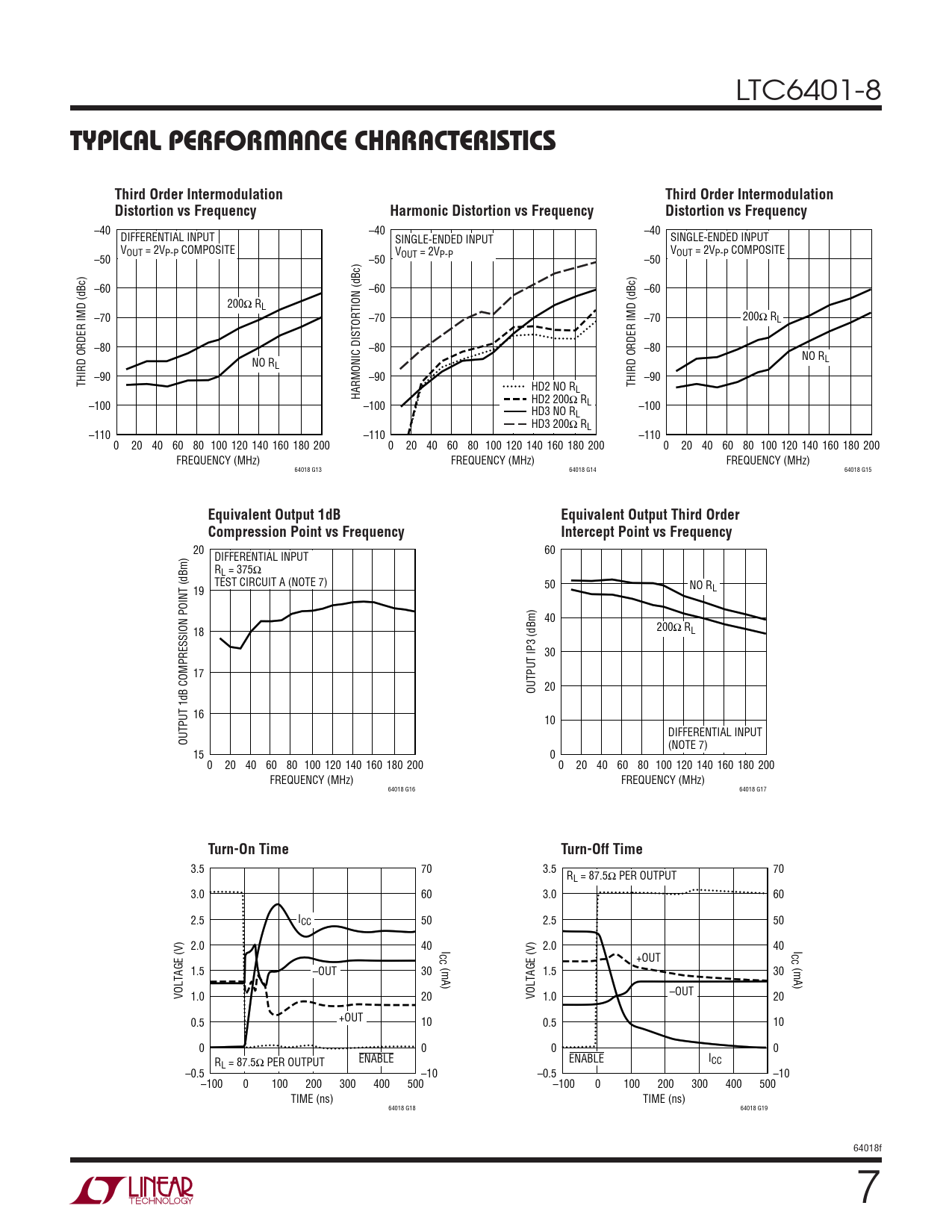

TYPICAL PERFORMANCE CHARACTERISTICS. Third Order Intermodulation. Distortion vs Frequency. Harmonic Distortion vs Frequency
