LT6402-12

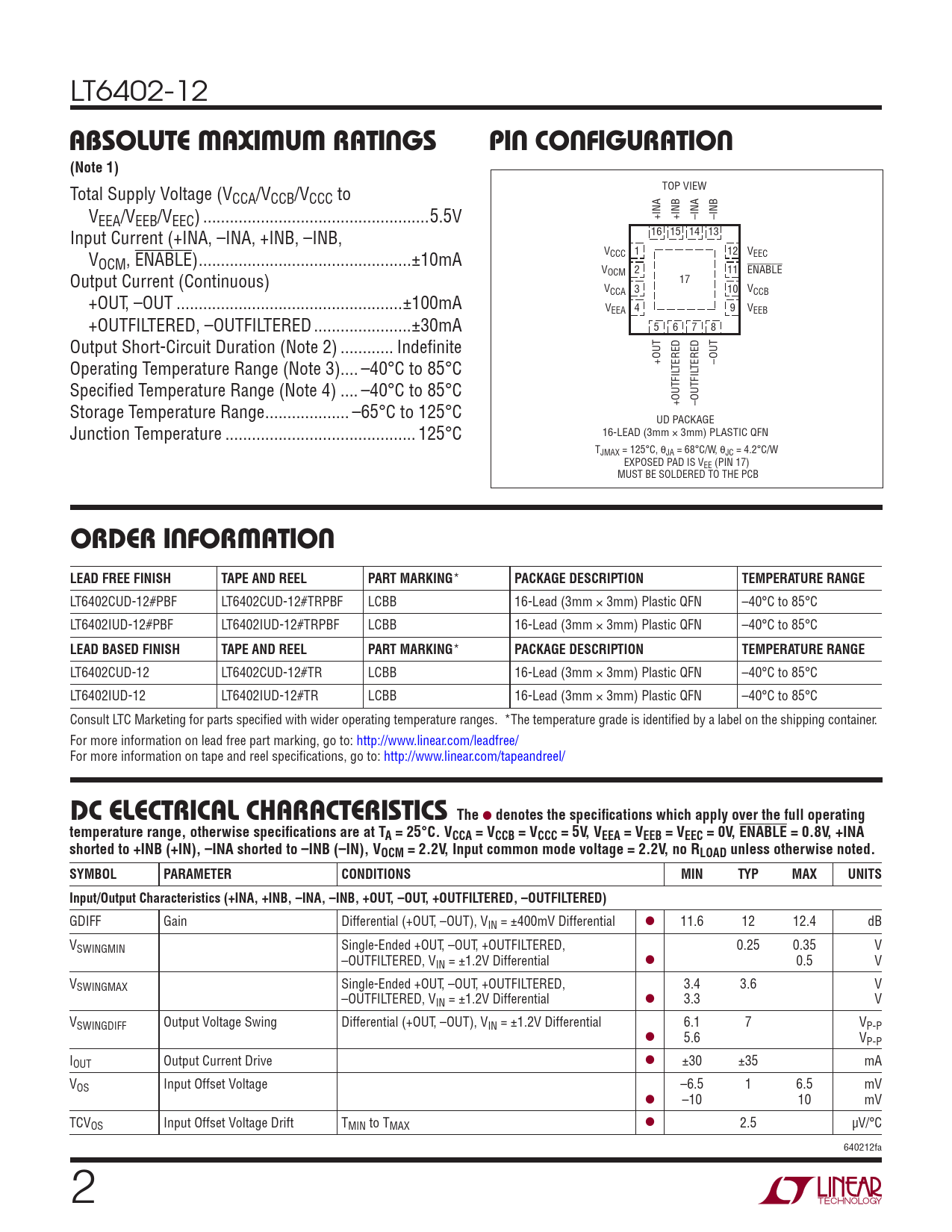

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
TOP VIEW Total Supply Voltage (VCCA/VCCB/VCCC to VEEA/VEEB/VEEC) ...5.5V +INA +INB –INA –INB Input Current (+INA, –INA, +INB, –INB, 16 15 14 13 V 1 12 V V CCC EEC OCM, ENABLE) ..±10mA V 2 11 OCM ENABLE Output Current (Continuous) 17 VCCA 3 10 VCCB +OUT, –OUT ...±100mA VEEA 4 9 VEEB +OUTFILTERED, –OUTFILTERED ..±30mA 5 6 7 8 Output Short-Circuit Duration (Note 2) .. Indefi nite Operating Temperature Range (Note 3).. –40°C to 85°C +OUT –OUT TERED TERED Specifi ed Temperature Range (Note 4) .. –40°C to 85°C +OUTFIL –OUTFIL Storage Temperature Range ... –65°C to 125°C UD PACKAGE Junction Temperature ... 125°C 16-LEAD (3mm × 3mm) PLASTIC QFN TJMAX = 125°C, θJA = 68°C/W, θJC = 4.2°C/W EXPOSED PAD IS VEE (PIN 17) MUST BE SOLDERED TO THE PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING
*
PACKAGE DESCRIPTION TEMPERATURE RANGE
LT6402CUD-12#PBF LT6402CUD-12#TRPBF LCBB 16-Lead (3mm × 3mm) Plastic QFN –40°C to 85°C LT6402IUD-12#PBF LT6402IUD-12#TRPBF LCBB 16-Lead (3mm × 3mm) Plastic QFN –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING
*
PACKAGE DESCRIPTION TEMPERATURE RANGE
LT6402CUD-12 LT6402CUD-12#TR LCBB 16-Lead (3mm × 3mm) Plastic QFN –40°C to 85°C LT6402IUD-12 LT6402IUD-12#TR LCBB 16-Lead (3mm × 3mm) Plastic QFN –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
The DC ELECTRICAL CHARACTERISTICS
l
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VCCA = VCCB = VCCC = 5V, VEEA = VEEB = VEEC = 0V, ENABLE = 0.8V, +INA shorted to +INB (+IN), –INA shorted to –INB (–IN), VOCM = 2.2V, Input common mode voltage = 2.2V, no RLOAD unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Input/Output Characteristics (+INA, +INB, –INA, –INB, +OUT, –OUT, +OUTFILTERED, –OUTFILTERED)
GDIFF Gain Differential (+OUT, –OUT), VIN = ±400mV Differential l 11.6 12 12.4 dB VSWINGMIN Single-Ended +OUT, –OUT, +OUTFILTERED, 0.25 0.35 V –OUTFILTERED, VIN = ±1.2V Differential l 0.5 V VSWINGMAX Single-Ended +OUT, –OUT, +OUTFILTERED, 3.4 3.6 V –OUTFILTERED, VIN = ±1.2V Differential l 3.3 V VSWINGDIFF Output Voltage Swing Differential (+OUT, –OUT), VIN = ±1.2V Differential 6.1 7 VP-P l 5.6 VP-P IOUT Output Current Drive l ±30 ±35 mA VOS Input Offset Voltage –6.5 1 6.5 mV l –10 10 mV TCVOS Input Offset Voltage Drift TMIN to TMAX l 2.5 μV/°C 640212fa 2
