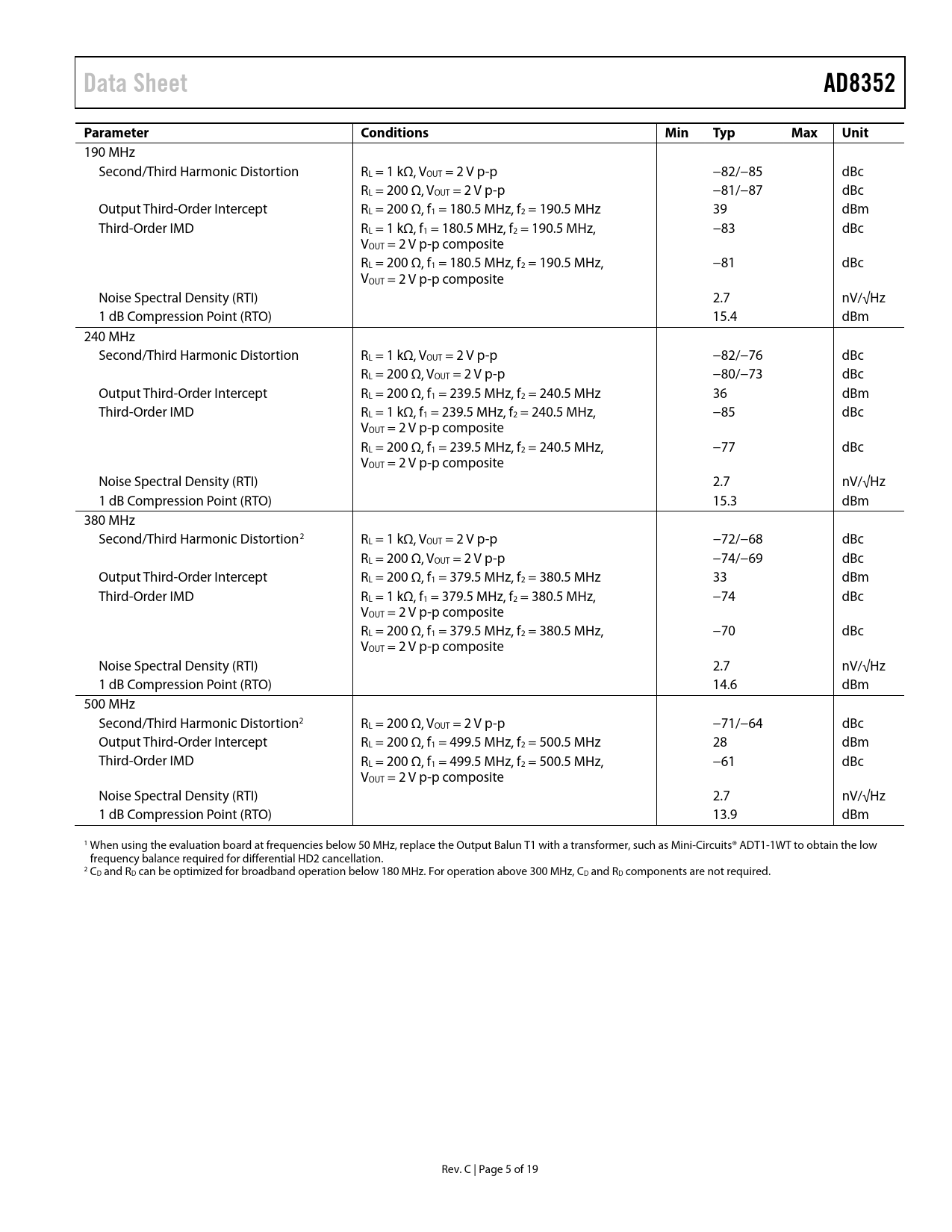

Data Sheet AD8352 Parameter Conditions Min Typ Max Unit
190 MHz Second/Third Harmonic Distortion RL = 1 kΩ, VOUT = 2 V p-p −82/−85 dBc RL = 200 Ω, VOUT = 2 V p-p −81/−87 dBc Output Third-Order Intercept RL = 200 Ω, f1 = 180.5 MHz, f2 = 190.5 MHz 39 dBm Third-Order IMD RL = 1 kΩ, f1 = 180.5 MHz, f2 = 190.5 MHz, −83 dBc VOUT = 2 V p-p composite RL = 200 Ω, f1 = 180.5 MHz, f2 = 190.5 MHz, −81 dBc VOUT = 2 V p-p composite Noise Spectral Density (RTI) 2.7 nV/√Hz 1 dB Compression Point (RTO) 15.4 dBm 240 MHz Second/Third Harmonic Distortion RL = 1 kΩ, VOUT = 2 V p-p −82/−76 dBc RL = 200 Ω, VOUT = 2 V p-p −80/−73 dBc Output Third-Order Intercept RL = 200 Ω, f1 = 239.5 MHz, f2 = 240.5 MHz 36 dBm Third-Order IMD RL = 1 kΩ, f1 = 239.5 MHz, f2 = 240.5 MHz, −85 dBc VOUT = 2 V p-p composite RL = 200 Ω, f1 = 239.5 MHz, f2 = 240.5 MHz, −77 dBc VOUT = 2 V p-p composite Noise Spectral Density (RTI) 2.7 nV/√Hz 1 dB Compression Point (RTO) 15.3 dBm 380 MHz Second/Third Harmonic Distortion2 RL = 1 kΩ, VOUT = 2 V p-p −72/−68 dBc RL = 200 Ω, VOUT = 2 V p-p −74/−69 dBc Output Third-Order Intercept RL = 200 Ω, f1 = 379.5 MHz, f2 = 380.5 MHz 33 dBm Third-Order IMD RL = 1 kΩ, f1 = 379.5 MHz, f2 = 380.5 MHz, −74 dBc VOUT = 2 V p-p composite RL = 200 Ω, f1 = 379.5 MHz, f2 = 380.5 MHz, −70 dBc VOUT = 2 V p-p composite Noise Spectral Density (RTI) 2.7 nV/√Hz 1 dB Compression Point (RTO) 14.6 dBm 500 MHz Second/Third Harmonic Distortion2 RL = 200 Ω, VOUT = 2 V p-p −71/−64 dBc Output Third-Order Intercept RL = 200 Ω, f1 = 499.5 MHz, f2 = 500.5 MHz 28 dBm Third-Order IMD RL = 200 Ω, f1 = 499.5 MHz, f2 = 500.5 MHz, −61 dBc VOUT = 2 V p-p composite Noise Spectral Density (RTI) 2.7 nV/√Hz 1 dB Compression Point (RTO) 13.9 dBm 1 When using the evaluation board at frequencies below 50 MHz, replace the Output Balun T1 with a transformer, such as Mini-Circuits® ADT1-1WT to obtain the low frequency balance required for differential HD2 cancellation. 2 CD and RD can be optimized for broadband operation below 180 MHz. For operation above 300 MHz, CD and RD components are not required. Rev. C | Page 5 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS NOISE DISTORTION SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION GAIN AND DISTORTION ADJUSTMENT (DIFFERENTIAL INPUT) SINGLE-ENDED INPUT OPERATION NARROW-BAND, THIRD-ORDER INTERMODULATION CANCELLATION HIGH PERFORMANCE ADC DRIVING LAYOUT AND TRANSMISSION LINE EFFECTS EVALUATION BOARD EVALUATION BOARD LOADING SCHEMES SOLDERING INFORMATION EVALUATION BOARD SCHEMATICS OUTLINE DIMENSIONS ORDERING GUIDE
