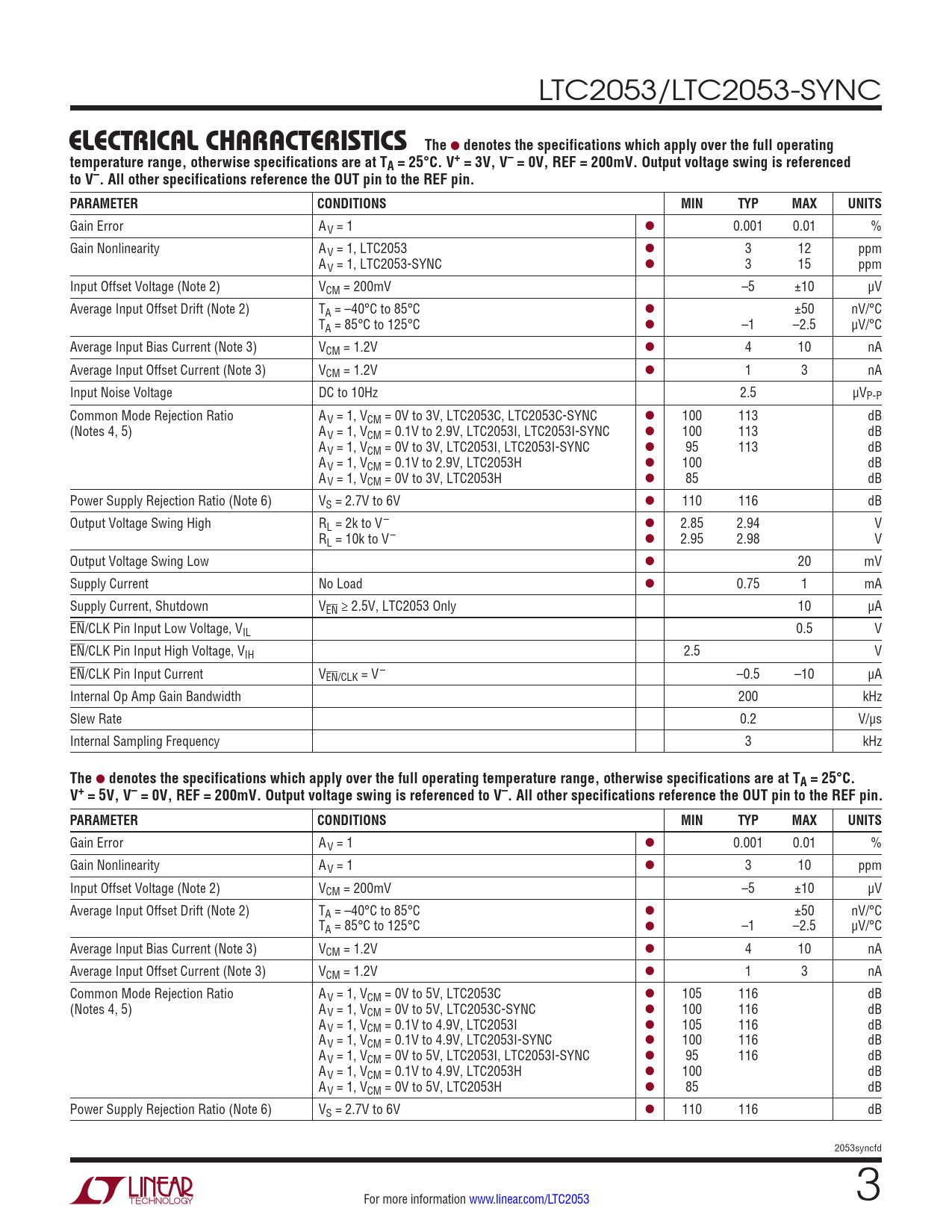

e lecTrical characTerisTics The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LTC2053/LTC2053-SYNC
e lecTrical characTerisTics The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. V+ = 3V, V– = 0V, REF = 200mV. Output voltage swing is referenced to V–. All other specifications reference the OUT pin to the REF pin. PARAMETER CONDITIONS MIN TYP MAX UNITS
Gain Error AV = 1 l 0.001 0.01 % Gain Nonlinearity AV = 1, LTC2053 l 3 12 ppm AV = 1, LTC2053-SYNC l 3 15 ppm Input Offset Voltage (Note 2) VCM = 200mV –5 ±10 µV Average Input Offset Drift (Note 2) TA = –40°C to 85°C l ±50 nV/°C TA = 85°C to 125°C l –1 –2.5 µV/°C Average Input Bias Current (Note 3) VCM = 1.2V l 4 10 nA Average Input Offset Current (Note 3) VCM = 1.2V l 1 3 nA Input Noise Voltage DC to 10Hz 2.5 µVP-P Common Mode Rejection Ratio AV = 1, VCM = 0V to 3V, LTC2053C, LTC2053C-SYNC l 100 113 dB (Notes 4, 5) AV = 1, VCM = 0.1V to 2.9V, LTC2053I, LTC2053I-SYNC l 100 113 dB AV = 1, VCM = 0V to 3V, LTC2053I, LTC2053I-SYNC l 95 113 dB AV = 1, VCM = 0.1V to 2.9V, LTC2053H l 100 dB AV = 1, VCM = 0V to 3V, LTC2053H l 85 dB Power Supply Rejection Ratio (Note 6) VS = 2.7V to 6V l 110 116 dB Output Voltage Swing High RL = 2k to V– l 2.85 2.94 V RL = 10k to V– l 2.95 2.98 V Output Voltage Swing Low l 20 mV Supply Current No Load l 0.75 1 mA Supply Current, Shutdown VEN ≥ 2.5V, LTC2053 Only 10 µA EN/CLK Pin Input Low Voltage, VIL 0.5 V EN/CLK Pin Input High Voltage, VIH 2.5 V EN/CLK Pin Input Current VEN/CLK = V– –0.5 –10 µA Internal Op Amp Gain Bandwidth 200 kHz Slew Rate 0.2 V/µs Internal Sampling Frequency 3 kHz
