Datasheet LT1210X (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | High Temperature 1.0A, 35MHz Current Feedback Amplifier |
| Pages / Page | 18 / 4 — RSD = 0. , IS = 30mA, VS = ±5V, Peaking ≤ 1dB. , IS = 35mA, VS = ±15V, … |
| File Format / Size | PDF / 635 Kb |
| Document Language | English |
RSD = 0. , IS = 30mA, VS = ±5V, Peaking ≤ 1dB. , IS = 35mA, VS = ±15V, Peaking ≤ 1dB. –3dB BW. RL (Ω). RF (Ω). RG (Ω). (MHz)
Model Line for this Datasheet
Text Version of Document

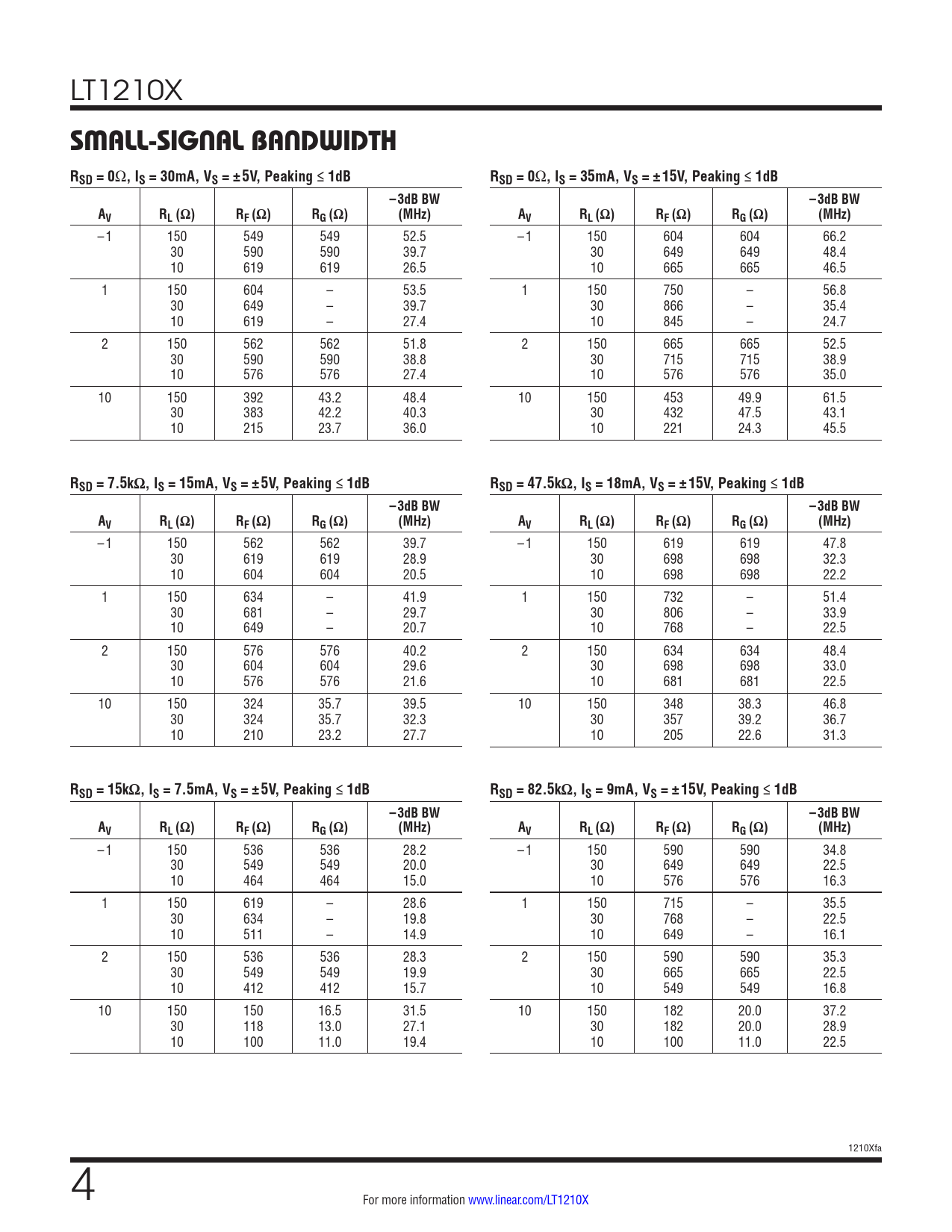

LT1210X SMALL-SIGNAL BANDWIDTH
RSD = 0
Ω
, IS = 30mA, VS = ±5V, Peaking ≤ 1dB RSD = 0
Ω
, IS = 35mA, VS = ±15V, Peaking ≤ 1dB –3dB BW –3dB BW AV RL (Ω) RF (Ω) RG (Ω) (MHz) AV RL (Ω) RF (Ω) RG (Ω) (MHz)
–1 150 549 549 52.5 –1 150 604 604 66.2 30 590 590 39.7 30 649 649 48.4 10 619 619 26.5 10 665 665 46.5 1 150 604 – 53.5 1 150 750 – 56.8 30 649 – 39.7 30 866 – 35.4 10 619 – 27.4 10 845 – 24.7 2 150 562 562 51.8 2 150 665 665 52.5 30 590 590 38.8 30 715 715 38.9 10 576 576 27.4 10 576 576 35.0 10 150 392 43.2 48.4 10 150 453 49.9 61.5 30 383 42.2 40.3 30 432 47.5 43.1 10 215 23.7 36.0 10 221 24.3 45.5
RSD = 7.5kΩ, IS = 15mA, VS = ±5V, Peaking ≤ 1dB RSD = 47.5kΩ, IS = 18mA, VS = ±15V, Peaking ≤ 1dB –3dB BW –3dB BW AV RL (Ω) RF (Ω) RG (Ω) (MHz) AV RL (Ω) RF (Ω) RG (Ω) (MHz)
–1 150 562 562 39.7 –1 150 619 619 47.8 30 619 619 28.9 30 698 698 32.3 10 604 604 20.5 10 698 698 22.2 1 150 634 – 41.9 1 150 732 – 51.4 30 681 – 29.7 30 806 – 33.9 10 649 – 20.7 10 768 – 22.5 2 150 576 576 40.2 2 150 634 634 48.4 30 604 604 29.6 30 698 698 33.0 10 576 576 21.6 10 681 681 22.5 10 150 324 35.7 39.5 10 150 348 38.3 46.8 30 324 35.7 32.3 30 357 39.2 36.7 10 210 23.2 27.7 10 205 22.6 31.3
RSD = 15kΩ, IS = 7.5mA, VS = ±5V, Peaking ≤ 1dB RSD = 82.5kΩ, IS = 9mA, VS = ±15V, Peaking ≤ 1dB –3dB BW –3dB BW AV RL (Ω) RF (Ω) RG (Ω) (MHz) AV RL (Ω) RF (Ω) RG (Ω) (MHz)
–1 150 536 536 28.2 –1 150 590 590 34.8 30 549 549 20.0 30 649 649 22.5 10 464 464 15.0 10 576 576 16.3 1 150 619 – 28.6 1 150 715 – 35.5 30 634 – 19.8 30 768 – 22.5 10 511 – 14.9 10 649 – 16.1 2 150 536 536 28.3 2 150 590 590 35.3 30 549 549 19.9 30 665 665 22.5 10 412 412 15.7 10 549 549 16.8 10 150 150 16.5 31.5 10 150 182 20.0 37.2 30 118 13.0 27.1 30 182 20.0 28.9 10 100 11.0 19.4 10 100 11.0 22.5 1210Xfa 4 For more information www.linear.com/LT1210X
