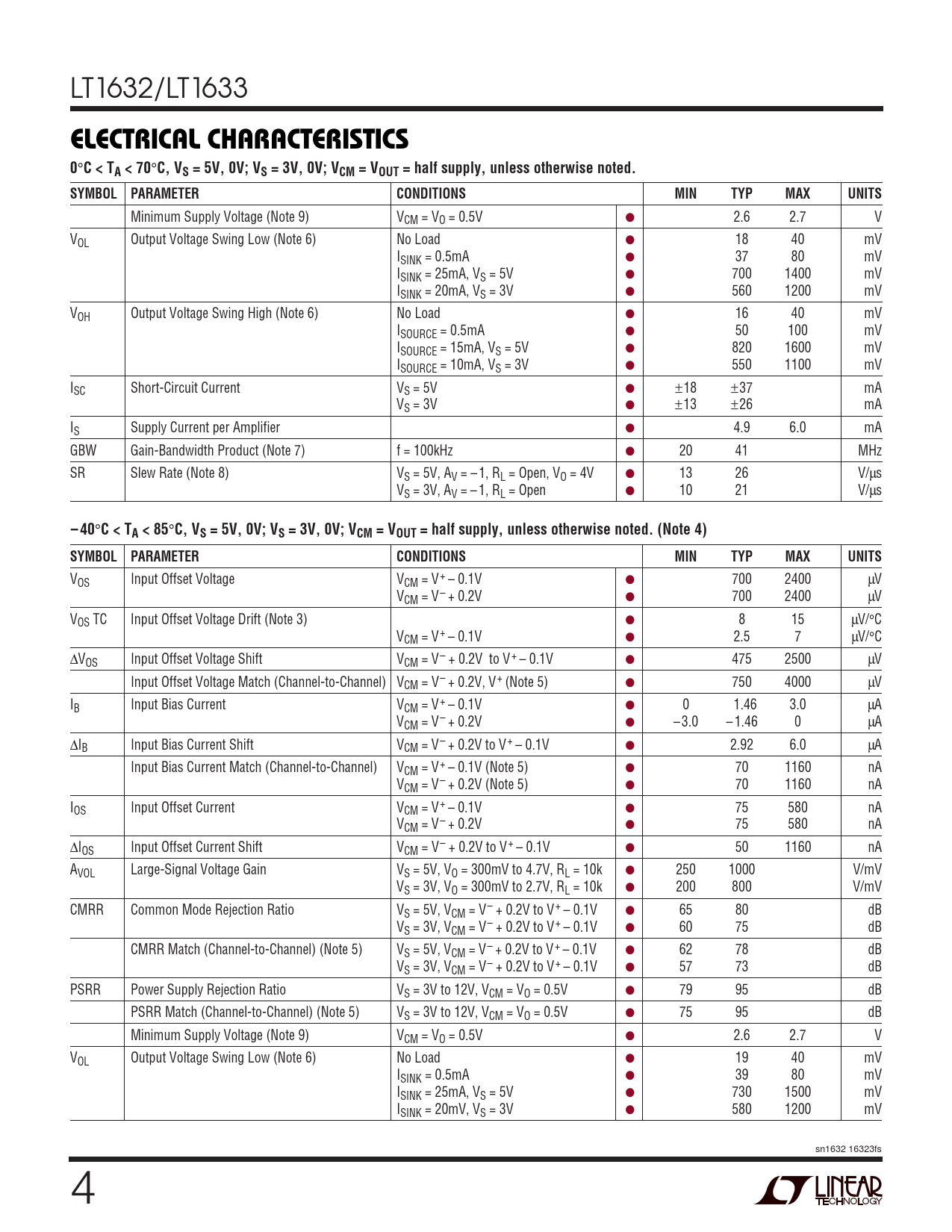

LT1632/LT1633
ELECTRICAL CHARACTERISTICS 0
°
C < TA < 70
°
C, VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Supply Voltage (Note 9) VCM = VO = 0.5V ● 2.6 2.7 V VOL Output Voltage Swing Low (Note 6) No Load ● 18 40 mV ISINK = 0.5mA ● 37 80 mV ISINK = 25mA, VS = 5V ● 700 1400 mV ISINK = 20mA, VS = 3V ● 560 1200 mV VOH Output Voltage Swing High (Note 6) No Load ● 16 40 mV ISOURCE = 0.5mA ● 50 100 mV ISOURCE = 15mA, VS = 5V ● 820 1600 mV ISOURCE = 10mA, VS = 3V ● 550 1100 mV ISC Short-Circuit Current VS = 5V ● ±18 ±37 mA VS = 3V ● ±13 ±26 mA IS Supply Current per Amplifier ● 4.9 6.0 mA GBW Gain-Bandwidth Product (Note 7) f = 100kHz ● 20 41 MHz SR Slew Rate (Note 8) VS = 5V, AV = – 1, RL = Open, VO = 4V ● 13 26 V/µs VS = 3V, AV = – 1, RL = Open ● 10 21 V/µs
– 40
°
C < TA < 85
°
C, VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = V+ – 0.1V ● 700 2400 µV VCM = V– + 0.2V ● 700 2400 µV VOS TC Input Offset Voltage Drift (Note 3) ● 8 15 µV/°C VCM = V+ – 0.1V ● 2.5 7 µV/°C ∆VOS Input Offset Voltage Shift VCM = V– + 0.2V to V+ – 0.1V ● 475 2500 µV Input Offset Voltage Match (Channel-to-Channel) VCM = V– + 0.2V, V+ (Note 5) ● 750 4000 µV IB Input Bias Current VCM = V+ – 0.1V ● 0 1.46 3.0 µA VCM = V– + 0.2V ● – 3.0 – 1.46 0 µA ∆IB Input Bias Current Shift VCM = V– + 0.2V to V+ – 0.1V ● 2.92 6.0 µA Input Bias Current Match (Channel-to-Channel) VCM = V+ – 0.1V (Note 5) ● 70 1160 nA VCM = V– + 0.2V (Note 5) ● 70 1160 nA IOS Input Offset Current VCM = V+ – 0.1V ● 75 580 nA VCM = V– + 0.2V ● 75 580 nA ∆IOS Input Offset Current Shift VCM = V– + 0.2V to V+ – 0.1V ● 50 1160 nA AVOL Large-Signal Voltage Gain VS = 5V, VO = 300mV to 4.7V, RL = 10k ● 250 1000 V/mV VS = 3V, VO = 300mV to 2.7V, RL = 10k ● 200 800 V/mV CMRR Common Mode Rejection Ratio VS = 5V, VCM = V– + 0.2V to V+ – 0.1V ● 65 80 dB VS = 3V, VCM = V– + 0.2V to V+ – 0.1V ● 60 75 dB CMRR Match (Channel-to-Channel) (Note 5) VS = 5V, VCM = V– + 0.2V to V+ – 0.1V ● 62 78 dB VS = 3V, VCM = V– + 0.2V to V+ – 0.1V ● 57 73 dB PSRR Power Supply Rejection Ratio VS = 3V to 12V, VCM = VO = 0.5V ● 79 95 dB PSRR Match (Channel-to-Channel) (Note 5) VS = 3V to 12V, VCM = VO = 0.5V ● 75 95 dB Minimum Supply Voltage (Note 9) VCM = VO = 0.5V ● 2.6 2.7 V VOL Output Voltage Swing Low (Note 6) No Load ● 19 40 mV ISINK = 0.5mA ● 39 80 mV ISINK = 25mA, VS = 5V ● 730 1500 mV ISINK = 20mV, VS = 3V ● 580 1200 mV sn1632 16323fs 4
ELECTRICAL CHARACTERISTICS 0
°
C < TA < 70
°
C, VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Supply Voltage (Note 9) VCM = VO = 0.5V ● 2.6 2.7 V VOL Output Voltage Swing Low (Note 6) No Load ● 18 40 mV ISINK = 0.5mA ● 37 80 mV ISINK = 25mA, VS = 5V ● 700 1400 mV ISINK = 20mA, VS = 3V ● 560 1200 mV VOH Output Voltage Swing High (Note 6) No Load ● 16 40 mV ISOURCE = 0.5mA ● 50 100 mV ISOURCE = 15mA, VS = 5V ● 820 1600 mV ISOURCE = 10mA, VS = 3V ● 550 1100 mV ISC Short-Circuit Current VS = 5V ● ±18 ±37 mA VS = 3V ● ±13 ±26 mA IS Supply Current per Amplifier ● 4.9 6.0 mA GBW Gain-Bandwidth Product (Note 7) f = 100kHz ● 20 41 MHz SR Slew Rate (Note 8) VS = 5V, AV = – 1, RL = Open, VO = 4V ● 13 26 V/µs VS = 3V, AV = – 1, RL = Open ● 10 21 V/µs
– 40
°
C < TA < 85
°
C, VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. (Note 4) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = V+ – 0.1V ● 700 2400 µV VCM = V– + 0.2V ● 700 2400 µV VOS TC Input Offset Voltage Drift (Note 3) ● 8 15 µV/°C VCM = V+ – 0.1V ● 2.5 7 µV/°C ∆VOS Input Offset Voltage Shift VCM = V– + 0.2V to V+ – 0.1V ● 475 2500 µV Input Offset Voltage Match (Channel-to-Channel) VCM = V– + 0.2V, V+ (Note 5) ● 750 4000 µV IB Input Bias Current VCM = V+ – 0.1V ● 0 1.46 3.0 µA VCM = V– + 0.2V ● – 3.0 – 1.46 0 µA ∆IB Input Bias Current Shift VCM = V– + 0.2V to V+ – 0.1V ● 2.92 6.0 µA Input Bias Current Match (Channel-to-Channel) VCM = V+ – 0.1V (Note 5) ● 70 1160 nA VCM = V– + 0.2V (Note 5) ● 70 1160 nA IOS Input Offset Current VCM = V+ – 0.1V ● 75 580 nA VCM = V– + 0.2V ● 75 580 nA ∆IOS Input Offset Current Shift VCM = V– + 0.2V to V+ – 0.1V ● 50 1160 nA AVOL Large-Signal Voltage Gain VS = 5V, VO = 300mV to 4.7V, RL = 10k ● 250 1000 V/mV VS = 3V, VO = 300mV to 2.7V, RL = 10k ● 200 800 V/mV CMRR Common Mode Rejection Ratio VS = 5V, VCM = V– + 0.2V to V+ – 0.1V ● 65 80 dB VS = 3V, VCM = V– + 0.2V to V+ – 0.1V ● 60 75 dB CMRR Match (Channel-to-Channel) (Note 5) VS = 5V, VCM = V– + 0.2V to V+ – 0.1V ● 62 78 dB VS = 3V, VCM = V– + 0.2V to V+ – 0.1V ● 57 73 dB PSRR Power Supply Rejection Ratio VS = 3V to 12V, VCM = VO = 0.5V ● 79 95 dB PSRR Match (Channel-to-Channel) (Note 5) VS = 3V to 12V, VCM = VO = 0.5V ● 75 95 dB Minimum Supply Voltage (Note 9) VCM = VO = 0.5V ● 2.6 2.7 V VOL Output Voltage Swing Low (Note 6) No Load ● 19 40 mV ISINK = 0.5mA ● 39 80 mV ISINK = 25mA, VS = 5V ● 730 1500 mV ISINK = 20mV, VS = 3V ● 580 1200 mV sn1632 16323fs 4
