Datasheet LT1632, LT1633 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 45MHz, 45V/µs, Quad Rail-to-Rail Input and Output Precision Op Amps |
| Pages / Page | 16 / 6 — ELECTRICAL CHARACTERISTICS TA = 25. C, VS =. 15V, VCM = 0V, VOUT = 0V, … |
| File Format / Size | PDF / 299 Kb |
| Document Language | English |

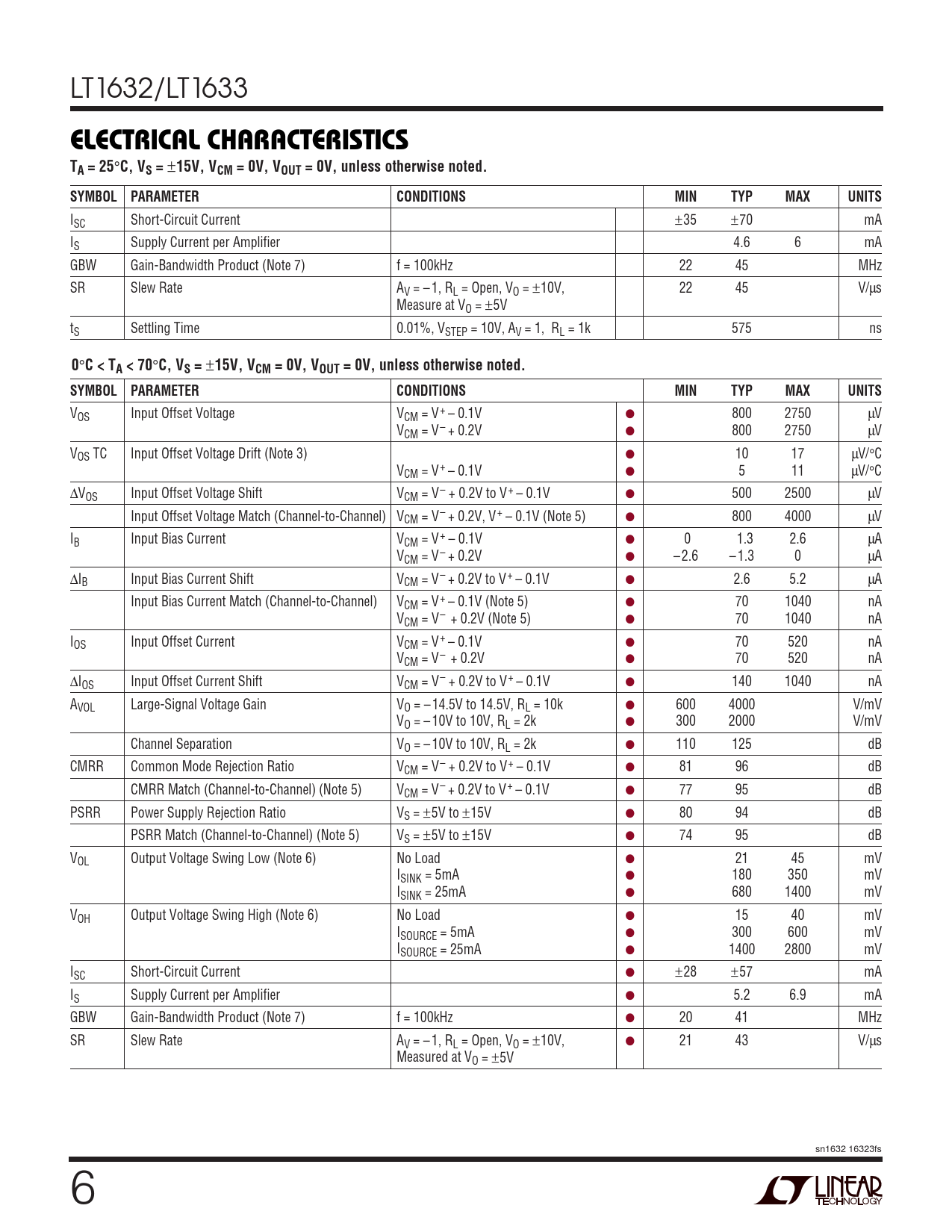

ELECTRICAL CHARACTERISTICS TA = 25. C, VS =. 15V, VCM = 0V, VOUT = 0V, unless otherwise noted. SYMBOL. PARAMETER. CONDITIONS. MIN
Model Line for this Datasheet
Text Version of Document
LT1632/LT1633
ELECTRICAL CHARACTERISTICS TA = 25
°
C, VS =
±
15V, VCM = 0V, VOUT = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
ISC Short-Circuit Current ±35 ±70 mA IS Supply Current per Amplifier 4.6 6 mA GBW Gain-Bandwidth Product (Note 7) f = 100kHz 22 45 MHz SR Slew Rate AV = – 1, RL = Open, VO = ±10V, 22 45 V/µs Measure at VO = ±5V tS Settling Time 0.01%, VSTEP = 10V, AV = 1, RL = 1k 575 ns
0
°
C < TA < 70
°
C, VS =
±
15V, VCM = 0V, VOUT = 0V, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = V+ – 0.1V ● 800 2750 µV VCM = V– + 0.2V ● 800 2750 µV VOS TC Input Offset Voltage Drift (Note 3) ● 10 17 µV/°C VCM = V+ – 0.1V ● 5 11 µV/°C ∆VOS Input Offset Voltage Shift VCM = V– + 0.2V to V+ – 0.1V ● 500 2500 µV Input Offset Voltage Match (Channel-to-Channel) VCM = V– + 0.2V, V+ – 0.1V (Note 5) ● 800 4000 µV IB Input Bias Current VCM = V+ – 0.1V ● 0 1.3 2.6 µA VCM = V– + 0.2V ● – 2.6 – 1.3 0 µA ∆IB Input Bias Current Shift VCM = V– + 0.2V to V+ – 0.1V ● 2.6 5.2 µA Input Bias Current Match (Channel-to-Channel) VCM = V+ – 0.1V (Note 5) ● 70 1040 nA VCM = V– + 0.2V (Note 5) ● 70 1040 nA IOS Input Offset Current VCM = V+ – 0.1V ● 70 520 nA VCM = V– + 0.2V ● 70 520 nA ∆IOS Input Offset Current Shift VCM = V– + 0.2V to V+ – 0.1V ● 140 1040 nA AVOL Large-Signal Voltage Gain VO = – 14.5V to 14.5V, RL = 10k ● 600 4000 V/mV VO = – 10V to 10V, RL = 2k ● 300 2000 V/mV Channel Separation VO = – 10V to 10V, RL = 2k ● 110 125 dB CMRR Common Mode Rejection Ratio VCM = V– + 0.2V to V+ – 0.1V ● 81 96 dB CMRR Match (Channel-to-Channel) (Note 5) VCM = V– + 0.2V to V+ – 0.1V ● 77 95 dB PSRR Power Supply Rejection Ratio VS = ±5V to ±15V ● 80 94 dB PSRR Match (Channel-to-Channel) (Note 5) VS = ±5V to ±15V ● 74 95 dB VOL Output Voltage Swing Low (Note 6) No Load ● 21 45 mV ISINK = 5mA ● 180 350 mV ISINK = 25mA ● 680 1400 mV VOH Output Voltage Swing High (Note 6) No Load ● 15 40 mV ISOURCE = 5mA ● 300 600 mV ISOURCE = 25mA ● 1400 2800 mV ISC Short-Circuit Current ● ±28 ±57 mA IS Supply Current per Amplifier ● 5.2 6.9 mA GBW Gain-Bandwidth Product (Note 7) f = 100kHz ● 20 41 MHz SR Slew Rate AV = – 1, RL = Open, VO = ±10V, ● 21 43 V/µs Measured at VO = ±5V sn1632 16323fs 6
