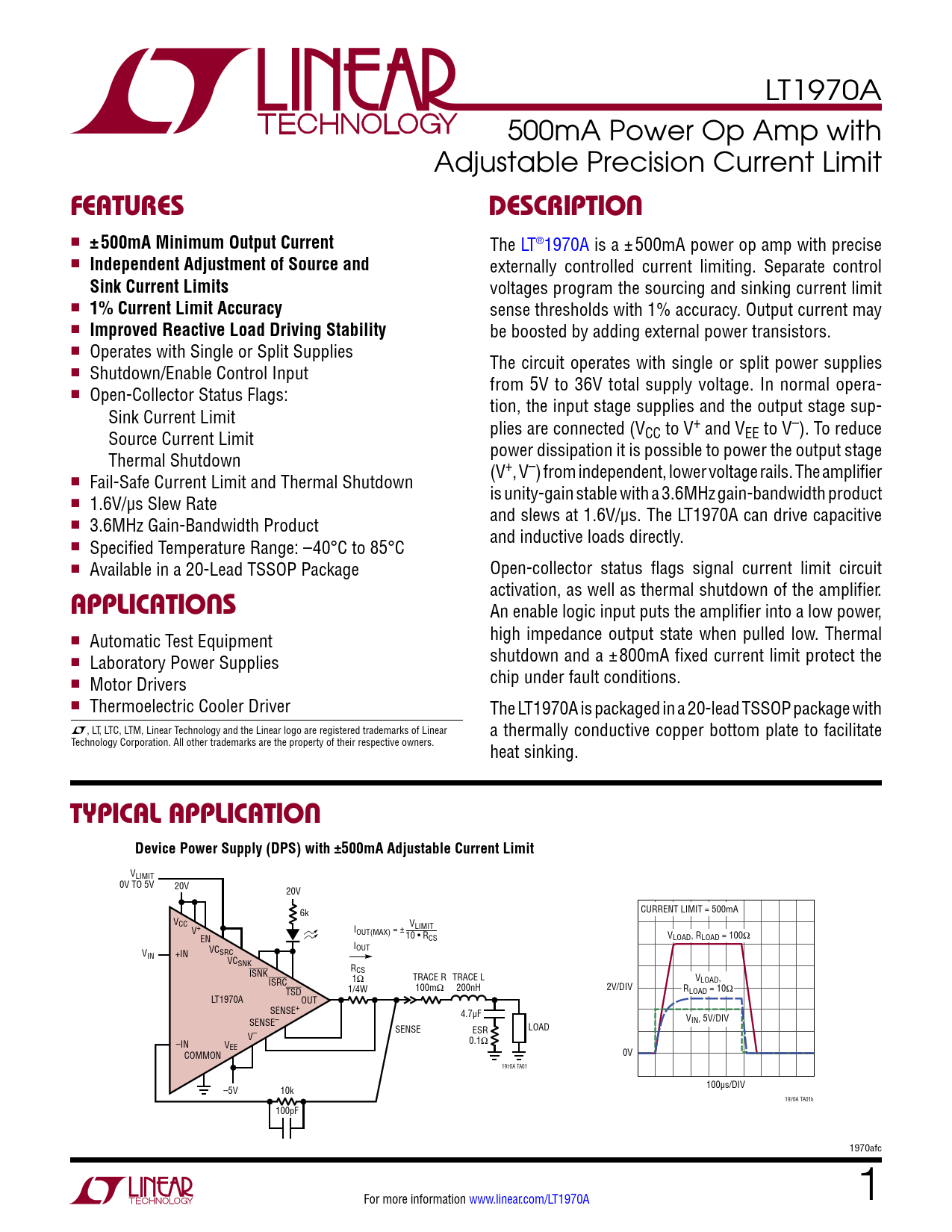

LT1970A 500mA Power Op Amp with Adjustable Precision Current Limit
FeaTures DescripTion
n
± 500mA Minimum Output Current
The LT®1970A is a ±500mA power op amp with precise n
Independent Adjustment of Source and
externally controlled current limiting. Separate control
Sink Current Limits
voltages program the sourcing and sinking current limit n
1% Current Limit Accuracy
sense thresholds with 1% accuracy. Output current may n
Improved Reactive Load Driving Stability
be boosted by adding external power transistors. n Operates with Single or Split Supplies The circuit operates with single or split power supplies n Shutdown/Enable Control Input from 5V to 36V total supply voltage. In normal opera- n Open-Collector Status Flags: tion, the input stage supplies and the output stage sup- Sink Current Limit plies are connected (VCC to V+ and VEE to V–). To reduce Source Current Limit power dissipation it is possible to power the output stage Thermal Shutdown (V+, V–) from independent, lower voltage rails. The amplifier n Fail-Safe Current Limit and Thermal Shutdown is unity-gain stable with a 3.6MHz gain-bandwidth product n 1.6V/µs Slew Rate and slews at 1.6V/µs. The LT1970A can drive capacitive n 3.6MHz Gain-Bandwidth Product and inductive loads directly. n Specified Temperature Range: –40°C to 85°C n Available in a 20-Lead TSSOP Package Open-collector status flags signal current limit circuit activation, as well as thermal shutdown of the amplifier.
applicaTions
An enable logic input puts the amplifier into a low power, n high impedance output state when pulled low. Thermal Automatic Test Equipment n shutdown and a ±800mA fixed current limit protect the Laboratory Power Supplies n chip under fault conditions. Motor Drivers n Thermoelectric Cooler Driver The LT1970A is packaged in a 20-lead TSSOP package with L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear a thermally conductive copper bottom plate to facilitate Technology Corporation. All other trademarks are the property of their respective owners. heat sinking.
Typical applicaTion Device Power Supply (DPS) with ±500mA Adjustable Current Limit
