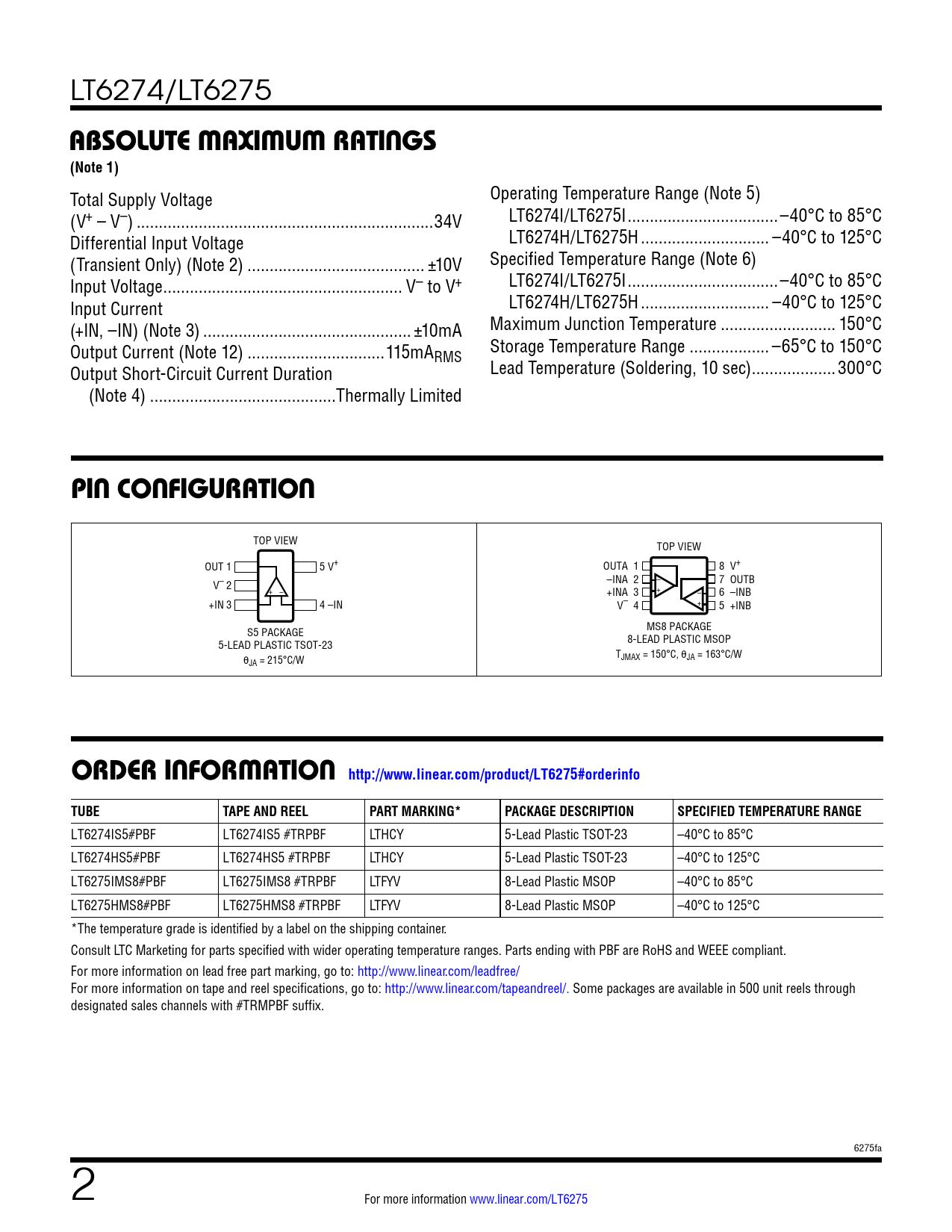

LT6274/LT6275
ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage Operating Temperature Range (Note 5) (V+ – V–) ...34V LT6274I/LT6275I ..–40°C to 85°C Differential Input Voltage LT6274H/LT6275H ... –40°C to 125°C (Transient Only) (Note 2) .. ±10V Specified Temperature Range (Note 6) Input Voltage .. V– to V+ LT6274I/LT6275I ..–40°C to 85°C Input Current LT6274H/LT6275H ... –40°C to 125°C (+IN, –IN) (Note 3) ... ±10mA Maximum Junction Temperature .. 150°C Output Current (Note 12) ...115mA Storage Temperature Range .. –65°C to 150°C RMS Output Short-Circuit Current Duration Lead Temperature (Soldering, 10 sec) ...300°C (Note 4) ..Thermally Limited
PIN CONFIGURATION
TOP VIEW TOP VIEW OUT 1 5 V+ OUTA 1 8 V+ – V– 2 –INA 2 7 OUTB + + – +INA 3 – 6 –INB +IN + 3 4 –IN V– 4 5 +INB S5 PACKAGE MS8 PACKAGE 5-LEAD PLASTIC TSOT-23 8-LEAD PLASTIC MSOP T θ JMAX = 150°C, θJA = 163°C/W JA = 215°C/W
ORDER INFORMATION http://www.linear.com/product/LT6275#orderinfo TUBE TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6274IS5#PBF LT6274IS5 #TRPBF LTHCY 5-Lead Plastic TSOT-23 –40°C to 85°C LT6274HS5#PBF LT6274HS5 #TRPBF LTHCY 5-Lead Plastic TSOT-23 –40°C to 125°C LT6275IMS8#PBF LT6275IMS8 #TRPBF LTFYV 8-Lead Plastic MSOP –40°C to 85°C LT6275HMS8#PBF LT6275HMS8 #TRPBF LTFYV 8-Lead Plastic MSOP –40°C to 125°C *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for parts specified with wider operating temperature ranges. Parts ending with PBF are RoHS and WEEE compliant. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 6275fa 2 For more information www.linear.com/LT6275
