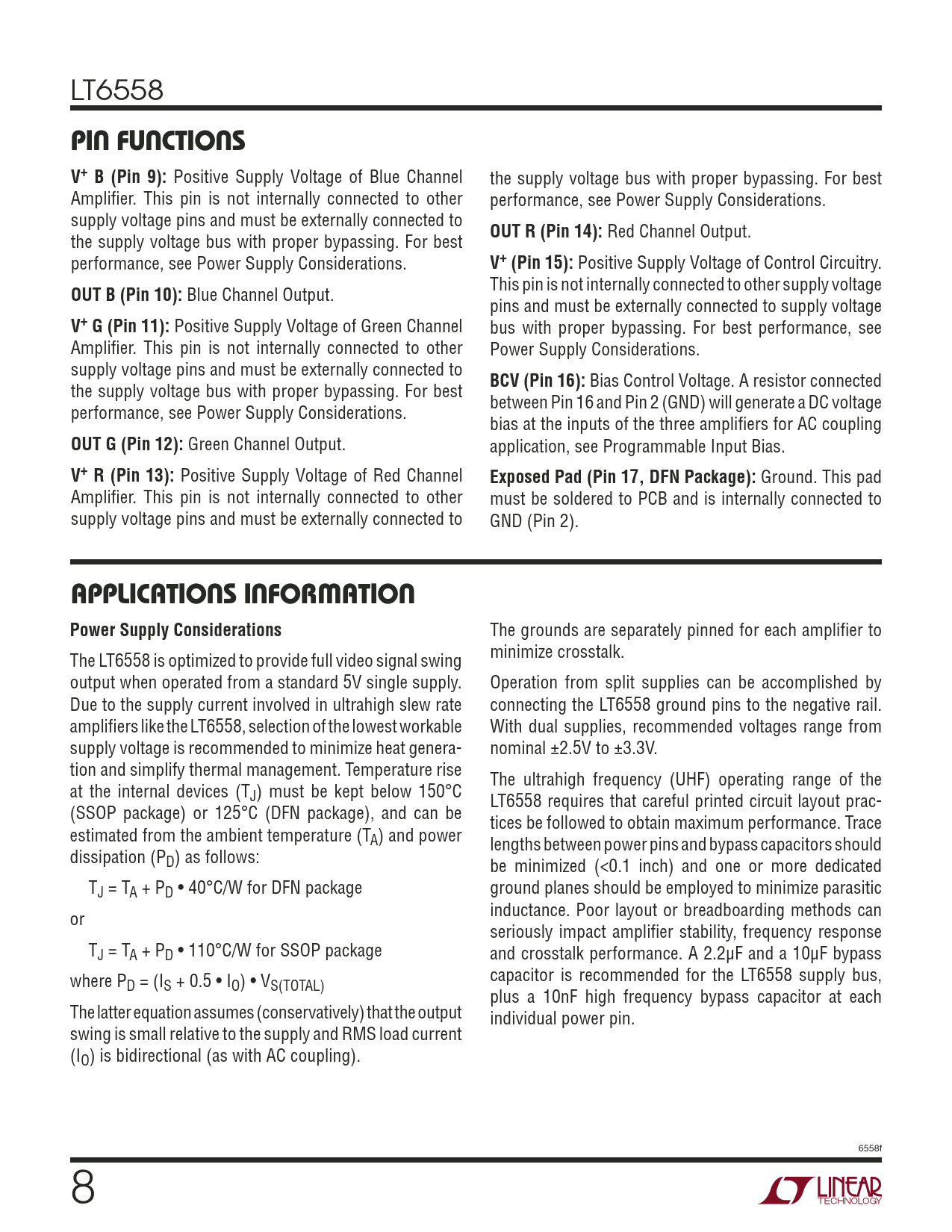

LT6558
PIN FUNCTIONS V+ B (Pin 9):
Positive Supply Voltage of Blue Channel the supply voltage bus with proper bypassing. For best Amplifi er. This pin is not internally connected to other performance, see Power Supply Considerations. supply voltage pins and must be externally connected to
OUT R (Pin 14):
Red Channel Output. the supply voltage bus with proper bypassing. For best performance, see Power Supply Considerations.
V+ (Pin 15):
Positive Supply Voltage of Control Circuitry. This pin is not internally connected to other supply voltage
OUT B (Pin 10):
Blue Channel Output. pins and must be externally connected to supply voltage
V+ G (Pin 11):
Positive Supply Voltage of Green Channel bus with proper bypassing. For best performance, see Amplifi er. This pin is not internally connected to other Power Supply Considerations. supply voltage pins and must be externally connected to
BCV (Pin 16):
Bias Control Voltage. A resistor connected the supply voltage bus with proper bypassing. For best between Pin 16 and Pin 2 (GND) will generate a DC voltage performance, see Power Supply Considerations. bias at the inputs of the three amplifi ers for AC coupling
OUT G (Pin 12):
Green Channel Output. application, see Programmable Input Bias.
V+ R (Pin 13):
Positive Supply Voltage of Red Channel
Exposed Pad (Pin 17, DFN Package):
Ground. This pad Amplifi er. This pin is not internally connected to other must be soldered to PCB and is internally connected to supply voltage pins and must be externally connected to GND (Pin 2).
