Datasheet RH1814M (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | Quad 3mA, 100MHz, 750V/µs Operational Amplifier |
| Pages / Page | 8 / 5 — TABLE 2: ELECTRICAL CHARACTERISTICS (Post-Irradiation). VS = 5V, OV, VCM … |
| File Format / Size | PDF / 625 Kb |
| Document Language | English |

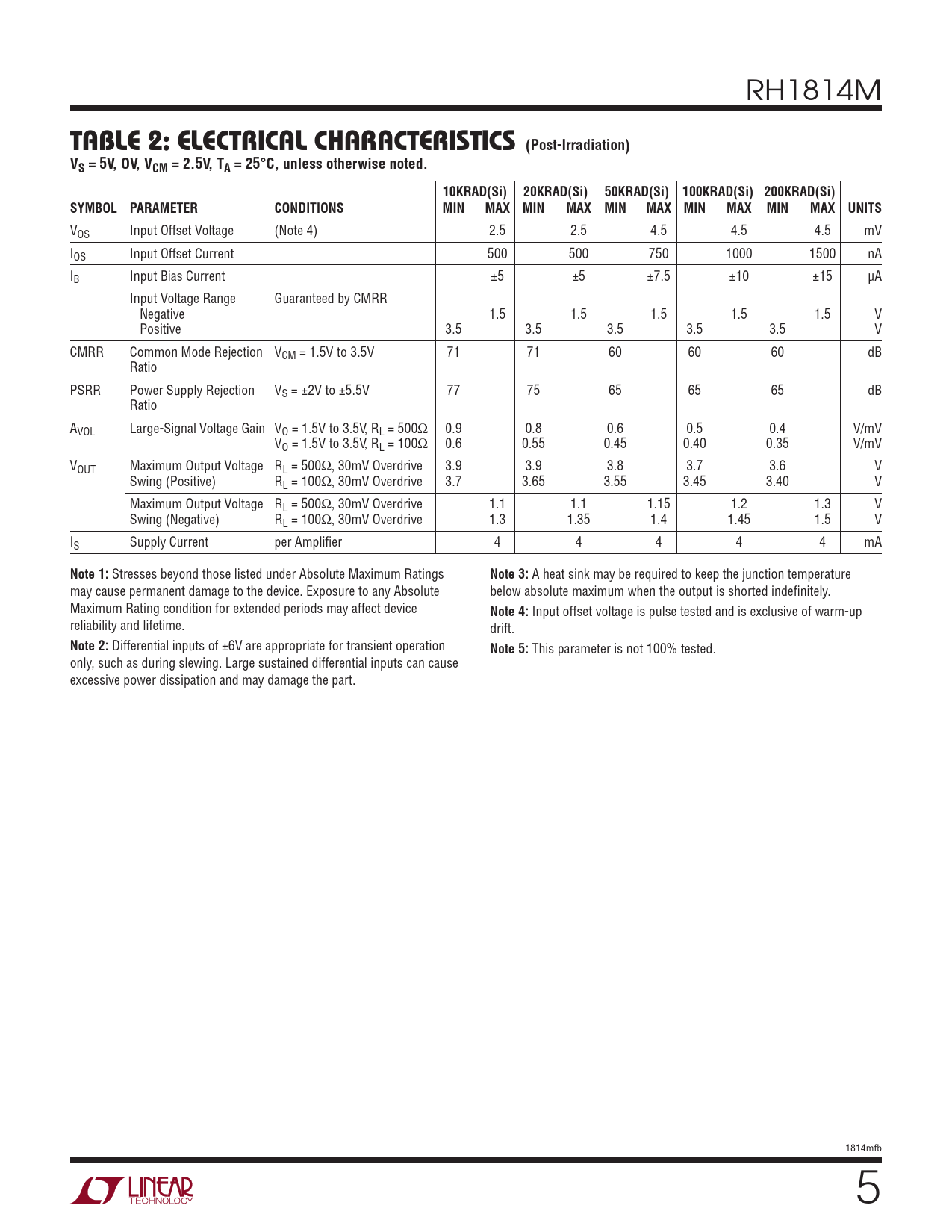

TABLE 2: ELECTRICAL CHARACTERISTICS (Post-Irradiation). VS = 5V, OV, VCM = 2.5V, TA = 25°C, unless otherwise noted
Model Line for this Datasheet
Text Version of Document
RH1814M
TABLE 2: ELECTRICAL CHARACTERISTICS (Post-Irradiation) VS = 5V, OV, VCM = 2.5V, TA = 25°C, unless otherwise noted. 10KRAD(Si) 20KRAD(Si) 50KRAD(Si) 100KRAD(Si) 200KRAD(Si) SYMBOL PARAMETER CONDITIONS MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX UNITS
VOS Input Offset Voltage (Note 4) 2.5 2.5 4.5 4.5 4.5 mV IOS Input Offset Current 500 500 750 1000 1500 nA IB Input Bias Current ±5 ±5 ±7.5 ±10 ±15 µA Input Voltage Range Guaranteed by CMRR Negative 1.5 1.5 1.5 1.5 1.5 V Positive 3.5 3.5 3.5 3.5 3.5 V CMRR Common Mode Rejection VCM = 1.5V to 3.5V 71 71 60 60 60 dB Ratio PSRR Power Supply Rejection VS = ±2V to ±5.5V 77 75 65 65 65 dB Ratio AVOL Large-Signal Voltage Gain VO = 1.5V to 3.5V, RL = 500Ω 0.9 0.8 0.6 0.5 0.4 V/mV VO = 1.5V to 3.5V, RL = 100Ω 0.6 0.55 0.45 0.40 0.35 V/mV VOUT Maximum Output Voltage RL = 500Ω, 30mV Overdrive 3.9 3.9 3.8 3.7 3.6 V Swing (Positive) RL = 100Ω, 30mV Overdrive 3.7 3.65 3.55 3.45 3.40 V Maximum Output Voltage RL = 500Ω, 30mV Overdrive 1.1 1.1 1.15 1.2 1.3 V Swing (Negative) RL = 100Ω, 30mV Overdrive 1.3 1.35 1.4 1.45 1.5 V IS Supply Current per Amplifier 4 4 4 4 4 mA
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
Note 3:
A heat sink may be required to keep the junction temperature may cause permanent damage to the device. Exposure to any Absolute below absolute maximum when the output is shorted indefinitely. Maximum Rating condition for extended periods may affect device
Note 4:
Input offset voltage is pulse tested and is exclusive of warm-up reliability and lifetime. drift.
Note 2:
Differential inputs of ±6V are appropriate for transient operation
Note 5:
This parameter is not 100% tested. only, such as during slewing. Large sustained differential inputs can cause excessive power dissipation and may damage the part. 1814mfb 5 Document Outline Description Absolute Maximum Ratings Electrical Characteristics Burn-In Circuit Package Information Table 1: Electrical Characteristics Table 2: Electrical Characteristics Table 1: Electrical Characteristics Table 2: Electrical Characteristics TABLE 2: Electrical Test Requirements Total Dose Bias Circuit Typical Performance Characteristics Revision History
