Datasheet LT1801, LT1802 (Analog Devices) - 5

ManufacturerAnalog Devices
DescriptionQuad 80MHz, 25V/µs Low Power Rail-to-Rail Input and Output Precision Op Amps
Pages / Page20 / 5 — ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply …
File Format / SizePDF / 354 Kb
Document LanguageEnglish

ELECTRICAL CHARACTERISTICS. The. denotes the specifi cations which apply over the temperature range

ELECTRICAL CHARACTERISTICS The denotes the specifi cations which apply over the temperature range

Model Line for this Datasheet

Text Version of Document

LT1801/LT1802
ELECTRICAL CHARACTERISTICS The
l

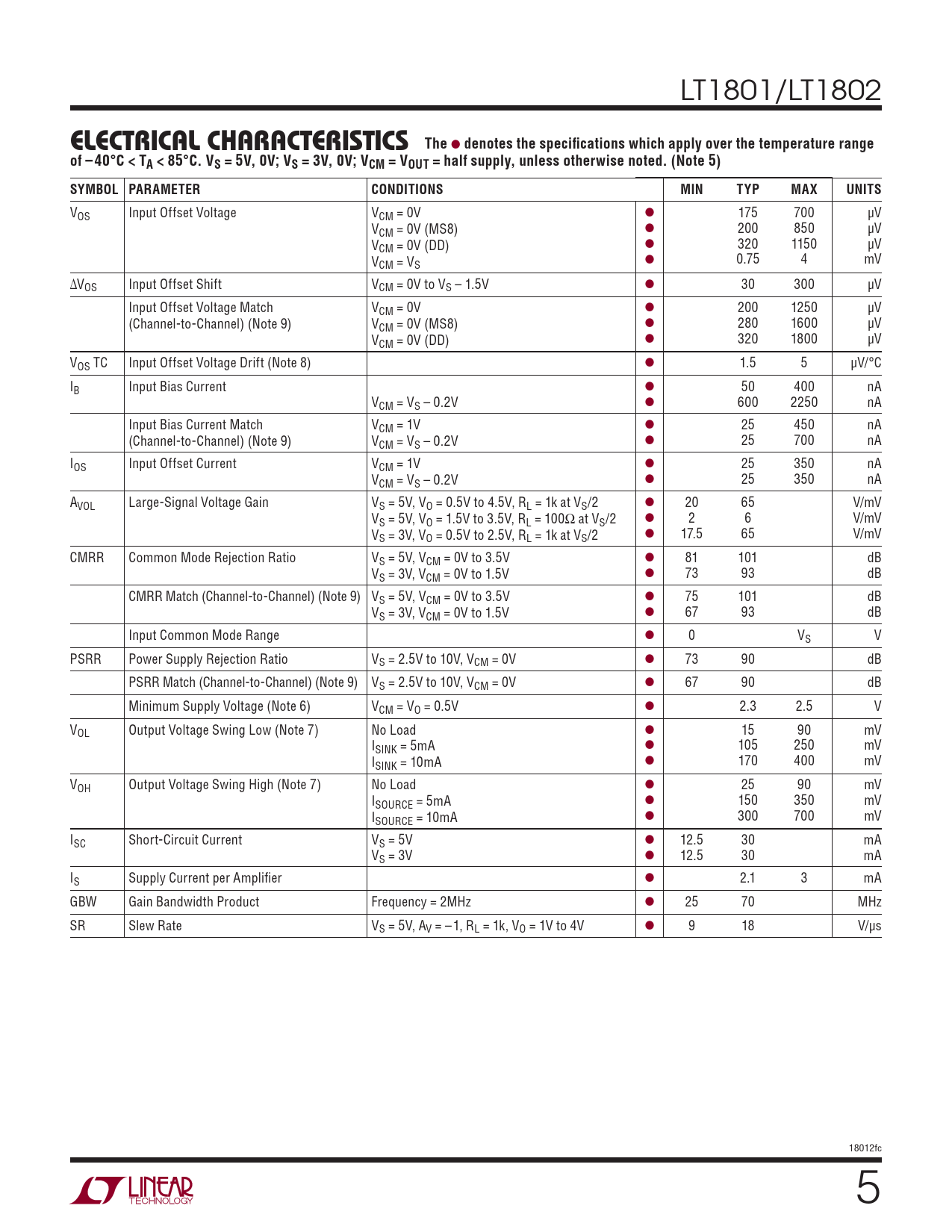

denotes the specifi cations which apply over the temperature range of – 40°C < TA < 85°C. VS = 5V, 0V; VS = 3V, 0V; VCM = VOUT = half supply, unless otherwise noted. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VCM = 0V l 175 700 μV V l CM = 0V (MS8) 200 850 μV V l CM = 0V (DD) 320 1150 μV V l 0.75 4 mV CM = VS ΔVOS Input Offset Shift VCM = 0V to VS – 1.5V l 30 300 μV Input Offset Voltage Match VCM = 0V l 200 1250 μV (Channel-to-Channel) (Note 9) V l CM = 0V (MS8) 280 1600 μV V l CM = 0V (DD) 320 1800 μV VOS TC Input Offset Voltage Drift (Note 8) l 1.5 5 μV/°C IB Input Bias Current l 50 400 nA VCM = VS – 0.2V l 600 2250 nA Input Bias Current Match VCM = 1V l 25 450 nA (Channel-to-Channel) (Note 9) V l CM = VS – 0.2V 25 700 nA IOS Input Offset Current VCM = 1V l 25 350 nA V l CM = VS – 0.2V 25 350 nA AVOL Large-Signal Voltage Gain VS = 5V, VO = 0.5V to 4.5V, RL = 1k at VS/2 l 20 65 V/mV V l S = 5V, VO = 1.5V to 3.5V, RL = 100Ω at VS/2 2 6 V/mV V l S = 3V, VO = 0.5V to 2.5V, RL = 1k at VS/2 17.5 65 V/mV CMRR Common Mode Rejection Ratio VS = 5V, VCM = 0V to 3.5V l 81 101 dB V l S = 3V, VCM = 0V to 1.5V 73 93 dB CMRR Match (Channel-to-Channel) (Note 9) VS = 5V, VCM = 0V to 3.5V l 75 101 dB V l S = 3V, VCM = 0V to 1.5V 67 93 dB Input Common Mode Range l 0 VS V PSRR Power Supply Rejection Ratio VS = 2.5V to 10V, VCM = 0V l 73 90 dB PSRR Match (Channel-to-Channel) (Note 9) VS = 2.5V to 10V, VCM = 0V l 67 90 dB Minimum Supply Voltage (Note 6) VCM = VO = 0.5V l 2.3 2.5 V VOL Output Voltage Swing Low (Note 7) No Load l 15 90 mV I l SINK = 5mA 105 250 mV I l SINK = 10mA 170 400 mV VOH Output Voltage Swing High (Note 7) No Load l 25 90 mV I l SOURCE = 5mA 150 350 mV I l SOURCE = 10mA 300 700 mV ISC Short-Circuit Current VS = 5V l 12.5 30 mA VS = 3V l 12.5 30 mA IS Supply Current per Amplifi er l 2.1 3 mA GBW Gain Bandwidth Product Frequency = 2MHz l 25 70 MHz SR Slew Rate VS = 5V, AV = – 1, RL = 1k, VO = 1V to 4V l 9 18 V/μs 18012fc 5
