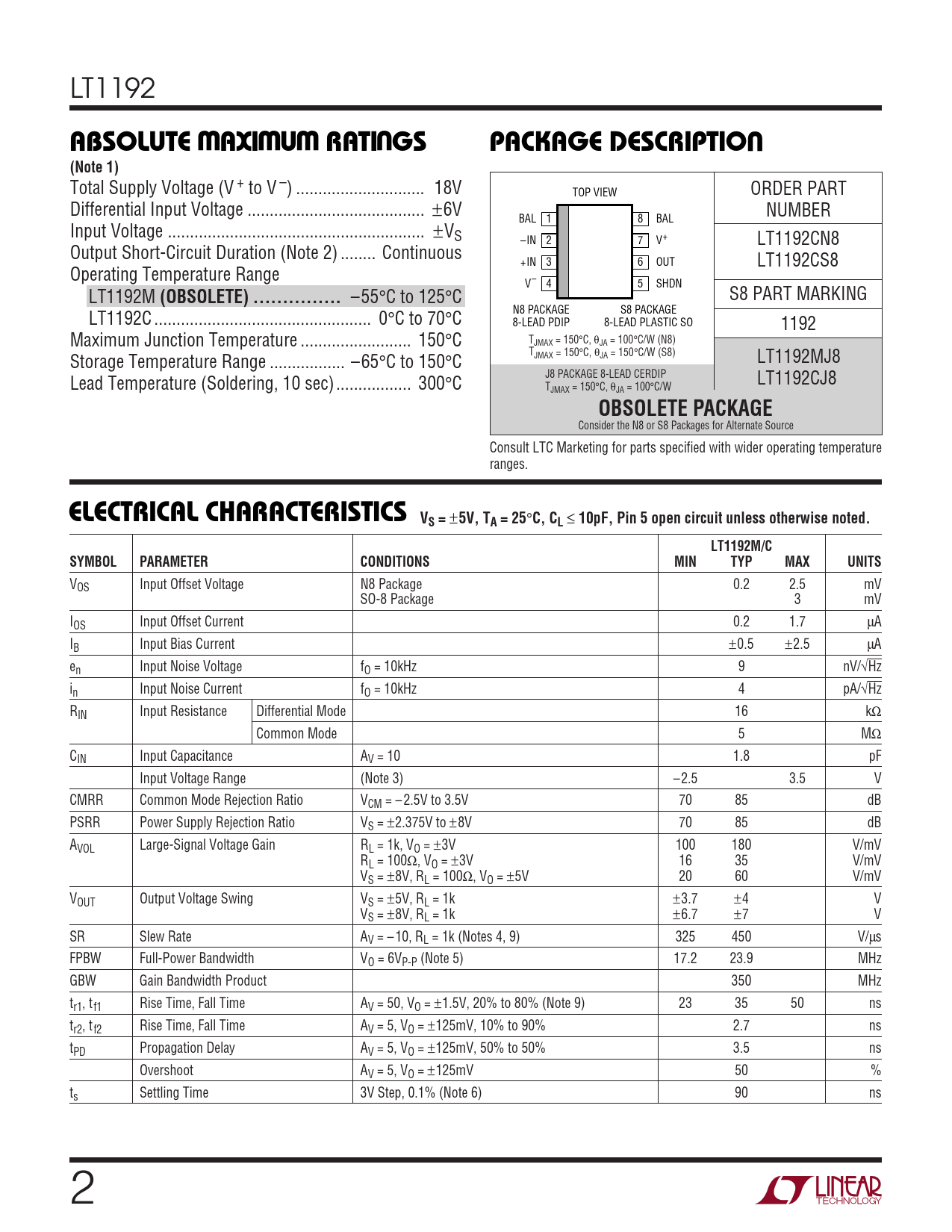

ABSOLUTE AXI U RATI GS. PACKAGE DESCRIPTIO. (Note 1). (OBSOLETE) ... OBSOLETE PACKAGE. ELECTRICAL CHARACTERISTICS VS =. 5V, TA = 25
Model Line for this Datasheet
Text Version of Document
LT1192
W W W U U ABSOLUTE AXI U RATI GS PACKAGE DESCRIPTIO (Note 1)
Total Supply Voltage (V + to V –) ... 18V TOP VIEW ORDER PART Differential Input Voltage .. ±6V NUMBER BAL 1 8 BAL Input Voltage .. ±VS –IN 2 7 V+ LT1192CN8 Output Short-Circuit Duration (Note 2) .. Continuous +IN 3 6 OUT LT1192CS8 Operating Temperature Range V– 4 5 SHDN LT1192M
(OBSOLETE) ...
–55°C to 125°C S8 PART MARKING N8 PACKAGE S8 PACKAGE LT1192C ... 0°C to 70°C 8-LEAD PDIP 8-LEAD PLASTIC SO 1192 Maximum Junction Temperature ... 150°C TJMAX = 150°C, θJA = 100°C/W (N8) T Storage Temperature Range ... –65°C to 150°C JMAX = 150°C, θJA = 150°C/W (S8) LT1192MJ8 J8 PACKAGE 8-LEAD CERDIP Lead Temperature (Soldering, 10 sec)... 300°C LT1192CJ8 TJMAX = 150°C, θJA = 100°C/W
OBSOLETE PACKAGE
Consider the N8 or S8 Packages for Alternate Source Consult LTC Marketing for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS VS =
±
5V, TA = 25
°
C, CL
≤
10pF, Pin 5 open circuit unless otherwise noted. LT1192M/C SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage N8 Package 0.2 2.5 mV SO-8 Package 3 mV IOS Input Offset Current 0.2 1.7 µA IB Input Bias Current ±0.5 ±2.5 µA en Input Noise Voltage fO = 10kHz 9 nV/√Hz in Input Noise Current fO = 10kHz 4 pA/√Hz RIN Input Resistance Differential Mode 16 kΩ Common Mode 5 MΩ CIN Input Capacitance AV = 10 1.8 pF Input Voltage Range (Note 3) –2.5 3.5 V CMRR Common Mode Rejection Ratio VCM = – 2.5V to 3.5V 70 85 dB PSRR Power Supply Rejection Ratio VS = ±2.375V to ±8V 70 85 dB AVOL Large-Signal Voltage Gain RL = 1k, VO = ±3V 100 180 V/mV RL = 100Ω, VO = ±3V 16 35 V/mV VS = ±8V, RL = 100Ω, VO = ±5V 20 60 V/mV VOUT Output Voltage Swing VS = ±5V, RL = 1k ±3.7 ±4 V VS = ±8V, RL = 1k ±6.7 ±7 V SR Slew Rate AV = – 10, RL = 1k (Notes 4, 9) 325 450 V/µs FPBW Full-Power Bandwidth VO = 6VP-P (Note 5) 17.2 23.9 MHz GBW Gain Bandwidth Product 350 MHz tr1, tf1 Rise Time, Fall Time AV = 50, VO = ±1.5V, 20% to 80% (Note 9) 23 35 50 ns tr2, tf2 Rise Time, Fall Time AV = 5, VO = ±125mV, 10% to 90% 2.7 ns tPD Propagation Delay AV = 5, VO = ±125mV, 50% to 50% 3.5 ns Overshoot AV = 5, VO = ±125mV 50 % ts Settling Time 3V Step, 0.1% (Note 6) 90 ns 2
