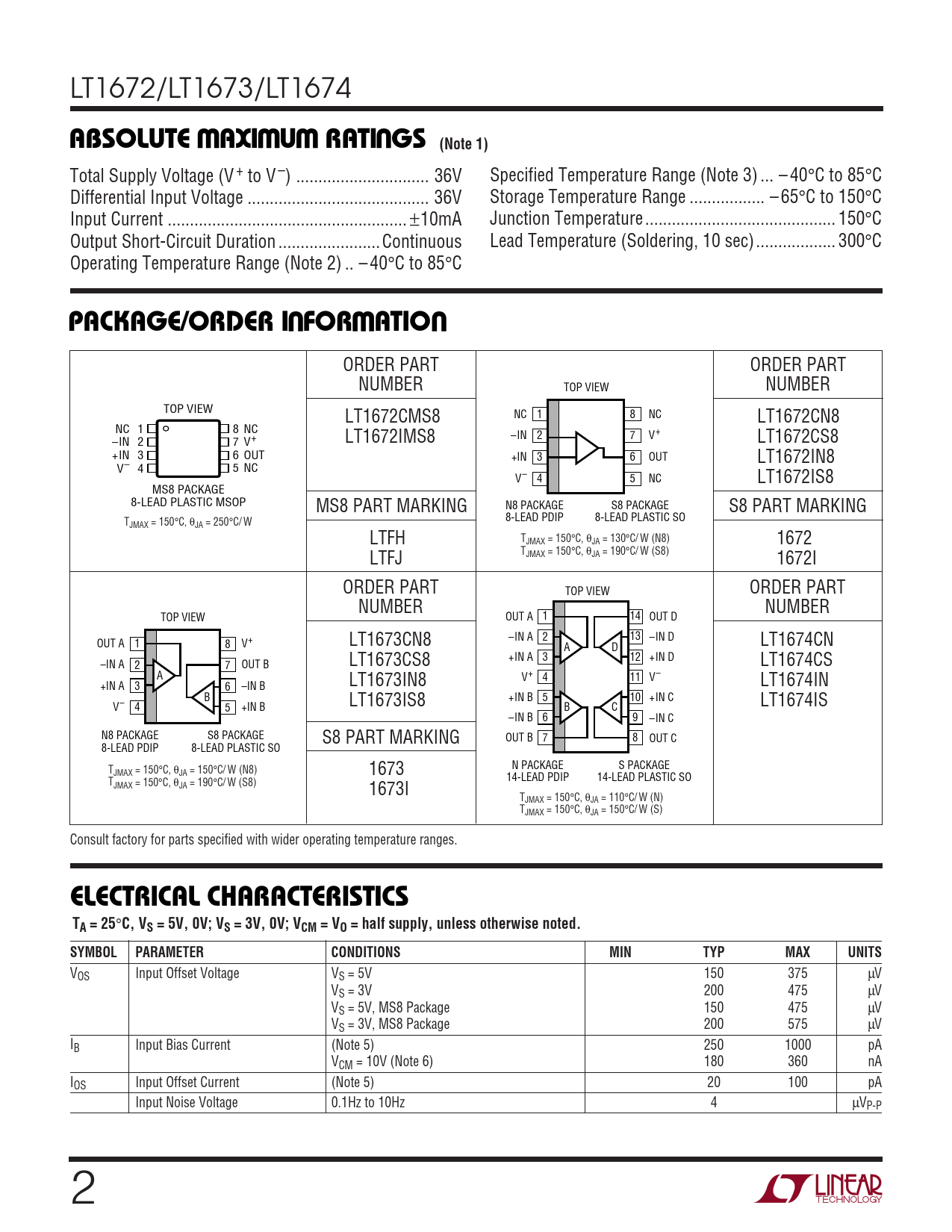

LT1672/LT1673/LT1674
W W W U ABSOLUTE AXI U RATI GS (Note 1)
Total Supply Voltage (V + to V –) .. 36V Specified Temperature Range (Note 3) ... – 40°C to 85°C Differential Input Voltage ... 36V Storage Temperature Range ... – 65°C to 150°C Input Current .. ±10mA Junction Temperature ... 150°C Output Short-Circuit Duration ... Continuous Lead Temperature (Soldering, 10 sec).. 300°C Operating Temperature Range (Note 2) .. – 40°C to 85°C
U W U PACKAGE/ORDER I FOR ATIO
ORDER PART ORDER PART NUMBER TOP VIEW NUMBER TOP VIEW LT1672CMS8 NC 1 8 NC LT1672CN8 NC 1 8 NC –IN 2 7 V+ LT1672CS8 –IN 2 7 V+ LT1672IMS8 +IN 3 6 OUT +IN 3 6 OUT LT1672IN8 V– 4 5 NC V– 4 5 NC LT1672IS8 MS8 PACKAGE 8-LEAD PLASTIC MSOP MS8 PART MARKING N8 PACKAGE S8 PACKAGE S8 PART MARKING T 8-LEAD PDIP 8-LEAD PLASTIC SO JMAX = 150°C, θJA = 250°C/ W LTFH TJMAX = 150°C, θJA = 130°C/ W (N8) 1672 LTFJ TJMAX = 150°C, θJA = 190°C/ W (S8) 1672I ORDER PART TOP VIEW ORDER PART NUMBER NUMBER TOP VIEW OUT A 1 14 OUT D –IN A 2 13 –IN D OUT A 1 8 V+ LT1673CN8 LT1674CN A D +IN A 3 12 +IN D LT1673CS8 LT1674CS –IN A 2 7 OUT B A V+ 4 11 V– LT1673IN8 LT1674IN +IN A 3 6 –IN B B +IN B 5 10 +IN C LT1673IS8 LT1674IS V– 4 5 +IN B B C –IN B 6 9 –IN C N8 PACKAGE S8 PACKAGE S8 PART MARKING OUT B 7 8 OUT C 8-LEAD PDIP 8-LEAD PLASTIC SO T N PACKAGE S PACKAGE JMAX = 150°C, θJA = 150°C/ W (N8) 1673 T 14-LEAD PDIP 14-LEAD PLASTIC SO JMAX = 150°C, θJA = 190°C/ W (S8) 1673I TJMAX = 150°C, θJA = 110°C/ W (N) TJMAX = 150°C, θJA = 150°C/ W (S) Consult factory for parts specified with wider operating temperature ranges.
ELECTRICAL CHARACTERISTICS TA = 25
°
C, VS = 5V, 0V; VS = 3V, 0V; VCM = VO = half supply, unless otherwise noted. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage VS = 5V 150 375 µV VS = 3V 200 475 µV VS = 5V, MS8 Package 150 475 µV VS = 3V, MS8 Package 200 575 µV IB Input Bias Current (Note 5) 250 1000 pA VCM = 10V (Note 6) 180 360 nA IOS Input Offset Current (Note 5) 20 100 pA Input Noise Voltage 0.1Hz to 10Hz 4 µVP-P 2
