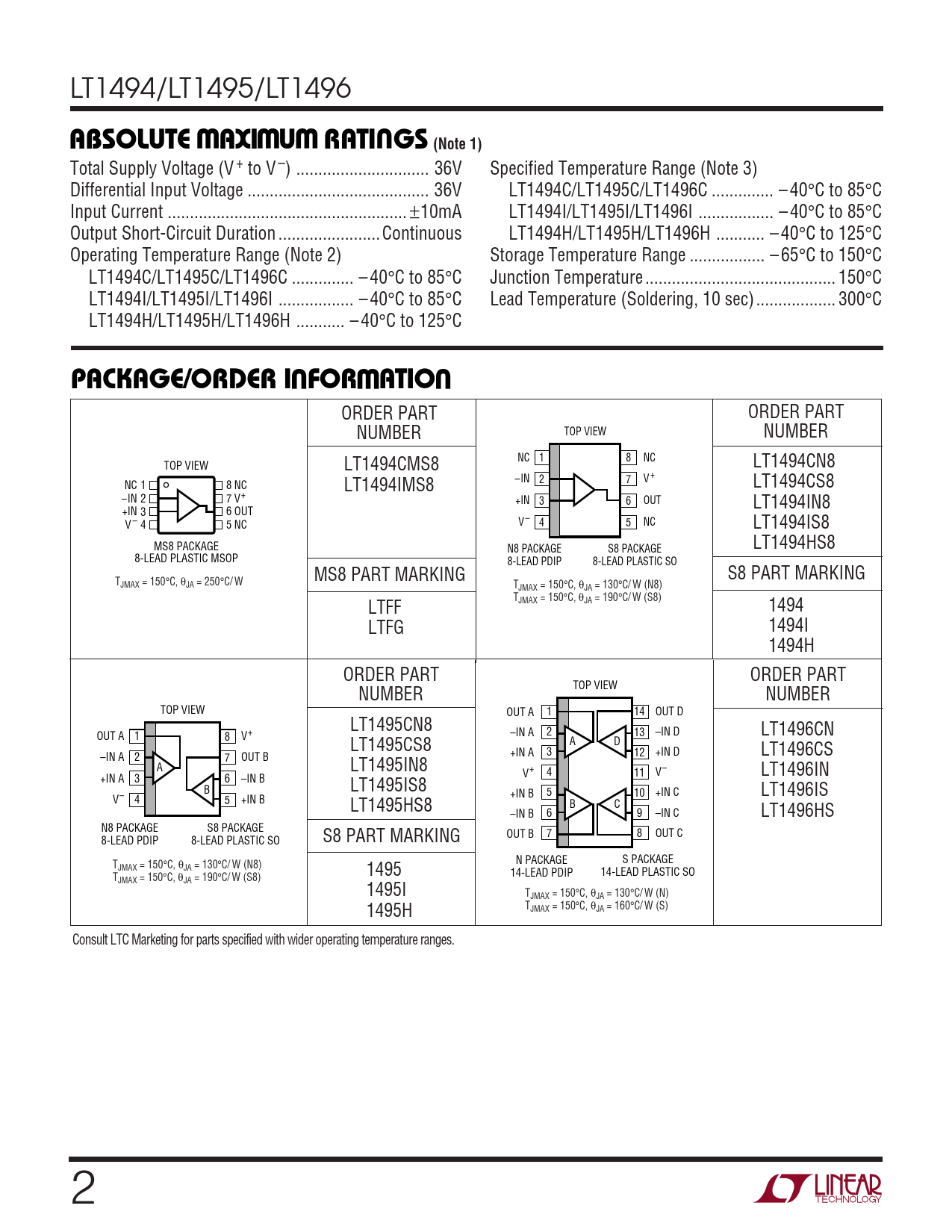

LT1494/LT1495/LT1496
W W W U ABSOLUTE MAXIMUM RATINGS (Note 1)
Total Supply Voltage (V + to V –) .. 36V Specified Temperature Range (Note 3) Differential Input Voltage ... 36V LT1494C/LT1495C/LT1496C .. – 40°C to 85°C Input Current .. ±10mA LT1494I/LT1495I/LT1496I ... – 40°C to 85°C Output Short-Circuit Duration ... Continuous LT1494H/LT1495H/LT1496H ... – 40°C to 125°C Operating Temperature Range (Note 2) Storage Temperature Range ... – 65°C to 150°C LT1494C/LT1495C/LT1496C .. – 40°C to 85°C Junction Temperature ... 150°C LT1494I/LT1495I/LT1496I ... – 40°C to 85°C Lead Temperature (Soldering, 10 sec).. 300°C LT1494H/LT1495H/LT1496H ... – 40°C to 125°C
U W U PACKAGE/ORDER INFORMATION
ORDER PART ORDER PART NUMBER TOP VIEW NUMBER TOP VIEW LT1494CMS8 NC 1 8 NC LT1494CN8 NC 1 8 NC LT1494IMS8 –IN 2 7 V + LT1494CS8 –IN 2 7 V+ +IN 3 6 OUT LT1494IN8 +IN 3 6 OUT V – 4 5 NC V – 4 5 NC LT1494IS8 MS8 PACKAGE LT1494HS8 N8 PACKAGE S8 PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD PDIP 8-LEAD PLASTIC SO MS8 PART MARKING S8 PART MARKING TJMAX = 150°C, θJA = 250°C/ W TJMAX = 150°C, θJA = 130°C/ W (N8) T LTFF JMAX = 150°C, θJA = 190°C/ W (S8) 1494 LTFG 1494I 1494H ORDER PART ORDER PART TOP VIEW NUMBER NUMBER TOP VIEW OUT A 1 14 OUT D LT1495CN8 –IN A 2 13 –IN D LT1496CN OUT A 1 8 V+ LT1495CS8 A D +IN A 3 12 +IN D LT1496CS –IN A 2 7 OUT B A LT1495IN8 V+ 4 11 V– LT1496IN +IN A 3 6 –IN B B LT1495IS8 +IN B 5 10 +IN C LT1496IS V– 4 5 +IN B LT1495HS8 B C –IN B 6 9 –IN C LT1496HS N8 PACKAGE S8 PACKAGE OUT B 7 8 OUT C 8-LEAD PDIP 8-LEAD PLASTIC SO S8 PART MARKING T N PACKAGE S PACKAGE JMAX = 150°C, θJA = 130°C/ W (N8) 1495 T 14-LEAD PDIP 14-LEAD PLASTIC SO JMAX = 150°C, θJA = 190°C/ W (S8) 1495I TJMAX = 150°C, θJA = 130°C/ W (N) TJMAX = 150°C, θJA = 160°C/ W (S) 1495H Consult LTC Marketing for parts specified with wider operating temperature ranges. 2
