Datasheet LT1494, LT1495, LT1496 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 1.5µA Max, Single, Dual and Quad Over-The-Top Precision Rail-to-Rail Input and Output Op Amps |
| Pages / Page | 16 / 6 — ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply … |
| File Format / Size | PDF / 265 Kb |
| Document Language | English |

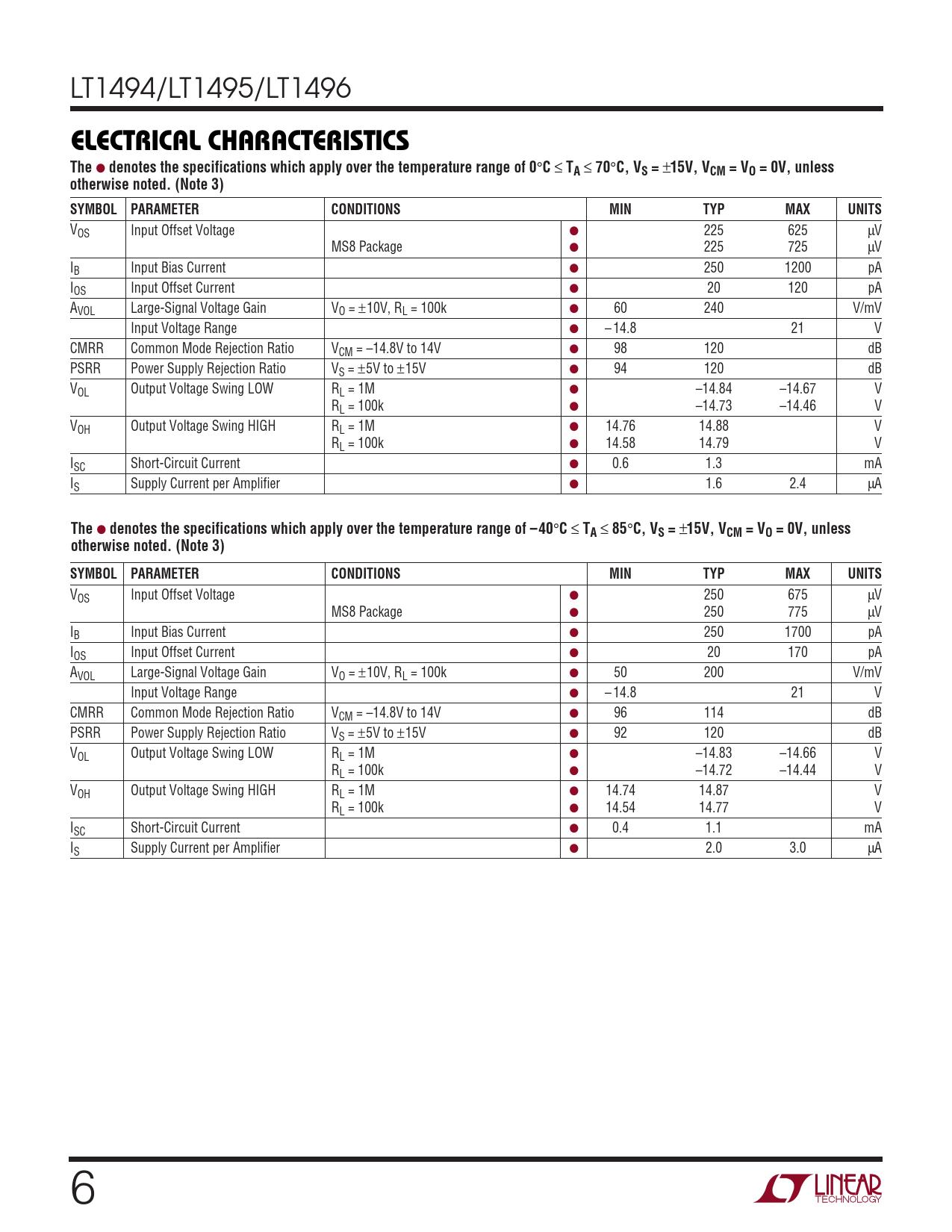

ELECTRICAL CHARACTERISTICS. The. denotes the specifications which apply over the temperature range of 0. C, VS =
Model Line for this Datasheet
- LT1494CMS8#PBF LT1494CMS8#TRPBF LT1494CN8#PBF LT1494CS8#PBF LT1494CS8#TRPBF LT1494HS8#PBF LT1494HS8#TRPBF LT1494IMS8#PBF LT1494IMS8#TRPBF LT1494IN8#PBF LT1494IS8#PBF LT1494IS8#TRPBF
Text Version of Document
LT1494/LT1495/LT1496
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the temperature range of 0
°
C
≤
TA
≤
70
°
C, VS =
±
15V, VCM = VO = 0V, unless otherwise noted. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage ● 225 625 µV MS8 Package ● 225 725 µV IB Input Bias Current ● 250 1200 pA IOS Input Offset Current ● 20 120 pA AVOL Large-Signal Voltage Gain VO = ±10V, RL = 100k ● 60 240 V/mV Input Voltage Range ● – 14.8 21 V CMRR Common Mode Rejection Ratio VCM = –14.8V to 14V ● 98 120 dB PSRR Power Supply Rejection Ratio VS = ±5V to ±15V ● 94 120 dB VOL Output Voltage Swing LOW RL = 1M ● –14.84 –14.67 V RL = 100k ● –14.73 –14.46 V VOH Output Voltage Swing HIGH RL = 1M ● 14.76 14.88 V RL = 100k ● 14.58 14.79 V ISC Short-Circuit Current ● 0.6 1.3 mA IS Supply Current per Amplifier ● 1.6 2.4 µA
The
●
denotes the specifications which apply over the temperature range of –40
°
C
≤
TA
≤
85
°
C, VS =
±
15V, VCM = VO = 0V, unless otherwise noted. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage ● 250 675 µV MS8 Package ● 250 775 µV IB Input Bias Current ● 250 1700 pA IOS Input Offset Current ● 20 170 pA AVOL Large-Signal Voltage Gain VO = ±10V, RL = 100k ● 50 200 V/mV Input Voltage Range ● – 14.8 21 V CMRR Common Mode Rejection Ratio VCM = –14.8V to 14V ● 96 114 dB PSRR Power Supply Rejection Ratio VS = ±5V to ±15V ● 92 120 dB VOL Output Voltage Swing LOW RL = 1M ● –14.83 –14.66 V RL = 100k ● –14.72 –14.44 V VOH Output Voltage Swing HIGH RL = 1M ● 14.74 14.87 V RL = 100k ● 14.54 14.77 V ISC Short-Circuit Current ● 0.4 1.1 mA IS Supply Current per Amplifier ● 2.0 3.0 µA 6
ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the temperature range of 0
°
C
≤
TA
≤
70
°
C, VS =
±
15V, VCM = VO = 0V, unless otherwise noted. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage ● 225 625 µV MS8 Package ● 225 725 µV IB Input Bias Current ● 250 1200 pA IOS Input Offset Current ● 20 120 pA AVOL Large-Signal Voltage Gain VO = ±10V, RL = 100k ● 60 240 V/mV Input Voltage Range ● – 14.8 21 V CMRR Common Mode Rejection Ratio VCM = –14.8V to 14V ● 98 120 dB PSRR Power Supply Rejection Ratio VS = ±5V to ±15V ● 94 120 dB VOL Output Voltage Swing LOW RL = 1M ● –14.84 –14.67 V RL = 100k ● –14.73 –14.46 V VOH Output Voltage Swing HIGH RL = 1M ● 14.76 14.88 V RL = 100k ● 14.58 14.79 V ISC Short-Circuit Current ● 0.6 1.3 mA IS Supply Current per Amplifier ● 1.6 2.4 µA
The
●
denotes the specifications which apply over the temperature range of –40
°
C
≤
TA
≤
85
°
C, VS =
±
15V, VCM = VO = 0V, unless otherwise noted. (Note 3) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage ● 250 675 µV MS8 Package ● 250 775 µV IB Input Bias Current ● 250 1700 pA IOS Input Offset Current ● 20 170 pA AVOL Large-Signal Voltage Gain VO = ±10V, RL = 100k ● 50 200 V/mV Input Voltage Range ● – 14.8 21 V CMRR Common Mode Rejection Ratio VCM = –14.8V to 14V ● 96 114 dB PSRR Power Supply Rejection Ratio VS = ±5V to ±15V ● 92 120 dB VOL Output Voltage Swing LOW RL = 1M ● –14.83 –14.66 V RL = 100k ● –14.72 –14.44 V VOH Output Voltage Swing HIGH RL = 1M ● 14.74 14.87 V RL = 100k ● 14.54 14.77 V ISC Short-Circuit Current ● 0.4 1.1 mA IS Supply Current per Amplifier ● 2.0 3.0 µA 6
