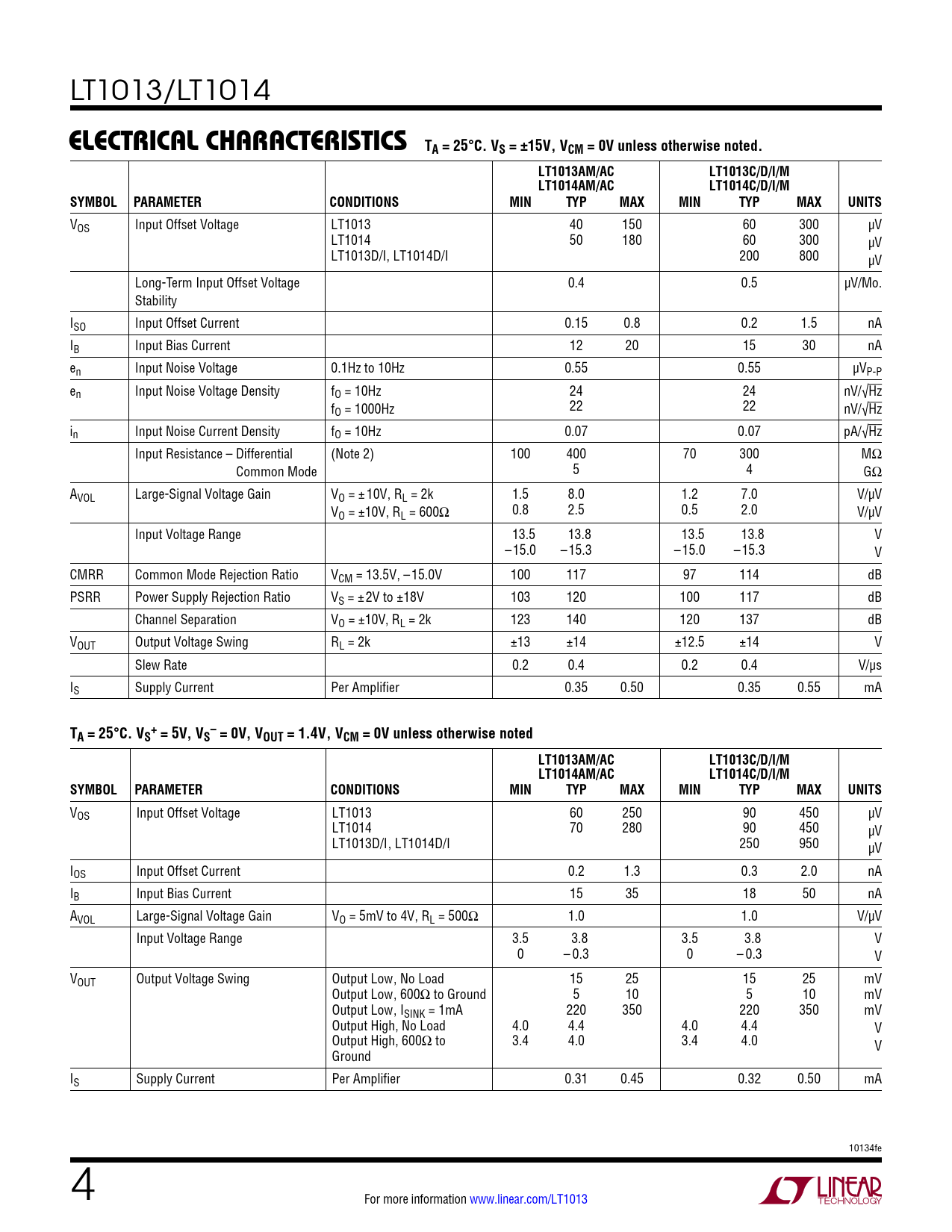

elecTrical characTerisTics. TA = 25°C. VS = ±15V, VCM = 0V unless otherwise noted. LT1013AM/AC. LT1013C/D/I/M. LT1014AM/AC
Model Line for this Datasheet
Text Version of Document
LT1013/LT1014
elecTrical characTerisTics TA = 25°C. VS = ±15V, VCM = 0V unless otherwise noted. LT1013AM/AC LT1013C/D/I/M LT1014AM/AC LT1014C/D/I/M SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage LT1013 40 150 60 300 µV LT1014 50 180 60 300 µV LT1013D/I, LT1014D/I 200 800 µV Long-Term Input Offset Voltage 0.4 0.5 µV/Mo. Stability ISO Input Offset Current 0.15 0.8 0.2 1.5 nA IB Input Bias Current 12 20 15 30 nA en Input Noise Voltage 0.1Hz to 10Hz 0.55 0.55 µVP-P en Input Noise Voltage Density fO = 10Hz 24 24 nV/√Hz fO = 1000Hz 22 22 nV/√Hz in Input Noise Current Density fO = 10Hz 0.07 0.07 pA/√Hz Input Resistance – Differential (Note 2) 100 400 70 300 MΩ Common Mode 5 4 GΩ AVOL Large-Signal Voltage Gain VO = ±10V, RL = 2k 1.5 8.0 1.2 7.0 V/µV VO = ±10V, RL = 600Ω 0.8 2.5 0.5 2.0 V/µV Input Voltage Range 13.5 13.8 13.5 13.8 V –15.0 –15.3 –15.0 –15.3 V CMRR Common Mode Rejection Ratio VCM = 13.5V, –15.0V 100 117 97 114 dB PSRR Power Supply Rejection Ratio VS = ±2V to ±18V 103 120 100 117 dB Channel Separation VO = ±10V, RL = 2k 123 140 120 137 dB VOUT Output Voltage Swing RL = 2k ±13 ±14 ±12.5 ±14 V Slew Rate 0.2 0.4 0.2 0.4 V/µs IS Supply Current Per Amplifier 0.35 0.50 0.35 0.55 mA
T + – A = 25°C. VS = 5V, VS = 0V, VOUT = 1.4V, VCM = 0V unless otherwise noted LT1013AM/AC LT1013C/D/I/M LT1014AM/AC LT1014C/D/I/M SYMBOL PARAMETER CONDITIONS MIN TYP MAX MIN TYP MAX UNITS
VOS Input Offset Voltage LT1013 60 250 90 450 µV LT1014 70 280 90 450 µV LT1013D/I, LT1014D/I 250 950 µV IOS Input Offset Current 0.2 1.3 0.3 2.0 nA IB Input Bias Current 15 35 18 50 nA AVOL Large-Signal Voltage Gain VO = 5mV to 4V, RL = 500Ω 1.0 1.0 V/µV Input Voltage Range 3.5 3.8 3.5 3.8 V 0 – 0.3 0 – 0.3 V VOUT Output Voltage Swing Output Low, No Load 15 25 15 25 mV Output Low, 600Ω to Ground 5 10 5 10 mV Output Low, ISINK = 1mA 220 350 220 350 mV Output High, No Load 4.0 4.4 4.0 4.4 V Output High, 600Ω to 3.4 4.0 3.4 4.0 V Ground IS Supply Current Per Amplifier 0.31 0.45 0.32 0.50 mA 10134fe 4 For more information www.linear.com/LT1013 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Applications Information Typical Applications schematic diagram Package Description Revision History Typical Application Related Parts
