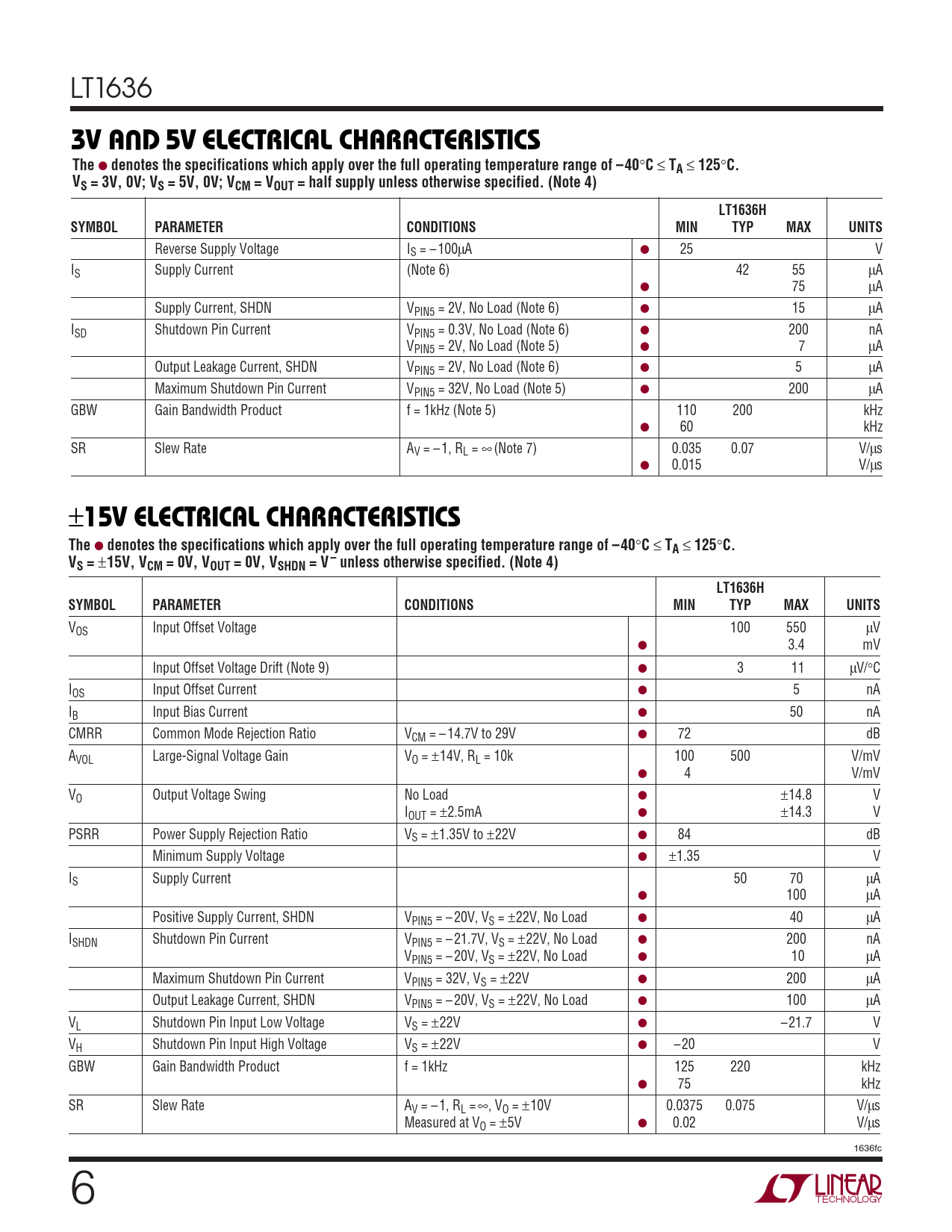

LT1636
U 3V A D 5V ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range of –40
°
C
≤
TA
≤
125
°
C. VS = 3V, 0V; VS = 5V, 0V; VCM = VOUT = half supply unless otherwise specified. (Note 4) LT1636H SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
Reverse Supply Voltage IS = – 100µA ● 25 V IS Supply Current (Note 6) 42 55 µA ● 75 µA Supply Current, SHDN VPIN5 = 2V, No Load (Note 6) ● 15 µA ISD Shutdown Pin Current VPIN5 = 0.3V, No Load (Note 6) ● 200 nA VPIN5 = 2V, No Load (Note 5) ● 7 µA Output Leakage Current, SHDN VPIN5 = 2V, No Load (Note 6) ● 5 µA Maximum Shutdown Pin Current VPIN5 = 32V, No Load (Note 5) ● 200 µA GBW Gain Bandwidth Product f = 1kHz (Note 5) 110 200 kHz ● 60 kHz SR Slew Rate AV = – 1, RL = ∞ (Note 7) 0.035 0.07 V/µs ● 0.015 V/µs ±
15V ELECTRICAL CHARACTERISTICS The
●
denotes the specifications which apply over the full operating temperature range of –40
°
C
≤
TA
≤
125
°
C. VS =
±
15V, VCM = 0V, VOUT = 0V, VSHDN = V– unless otherwise specified. (Note 4) LT1636H SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VOS Input Offset Voltage 100 550 µV ● 3.4 mV Input Offset Voltage Drift (Note 9) ● 3 11 µV/°C IOS Input Offset Current ● 5 nA IB Input Bias Current ● 50 nA CMRR Common Mode Rejection Ratio VCM = – 14.7V to 29V ● 72 dB AVOL Large-Signal Voltage Gain VO = ±14V, RL = 10k 100 500 V/mV ● 4 V/mV VO Output Voltage Swing No Load ● ±14.8 V IOUT = ±2.5mA ● ±14.3 V PSRR Power Supply Rejection Ratio VS = ±1.35V to ±22V ● 84 dB Minimum Supply Voltage ● ±1.35 V IS Supply Current 50 70 µA ● 100 µA Positive Supply Current, SHDN VPIN5 = – 20V, VS = ±22V, No Load ● 40 µA ISHDN Shutdown Pin Current VPIN5 = – 21.7V, VS = ±22V, No Load ● 200 nA VPIN5 = – 20V, VS = ±22V, No Load ● 10 µA Maximum Shutdown Pin Current VPIN5 = 32V, VS = ±22V ● 200 µA Output Leakage Current, SHDN VPIN5 = – 20V, VS = ±22V, No Load ● 100 µA VL Shutdown Pin Input Low Voltage VS = ±22V ● –21.7 V VH Shutdown Pin Input High Voltage VS = ±22V ● –20 V GBW Gain Bandwidth Product f = 1kHz 125 220 kHz ● 75 kHz SR Slew Rate AV = – 1, RL = ∞, VO = ±10V 0.0375 0.075 V/µs Measured at VO = ±5V ● 0.02 V/µs 1636fc 6
