Datasheet LT3697 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | USB 5V, 2.5A Output, 35V Input Buck with Cable Drop Compensation |
| Pages / Page | 32 / 2 — absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion … |
| File Format / Size | PDF / 451 Kb |
| Document Language | English |
absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Model Line for this Datasheet
Text Version of Document
LT3697

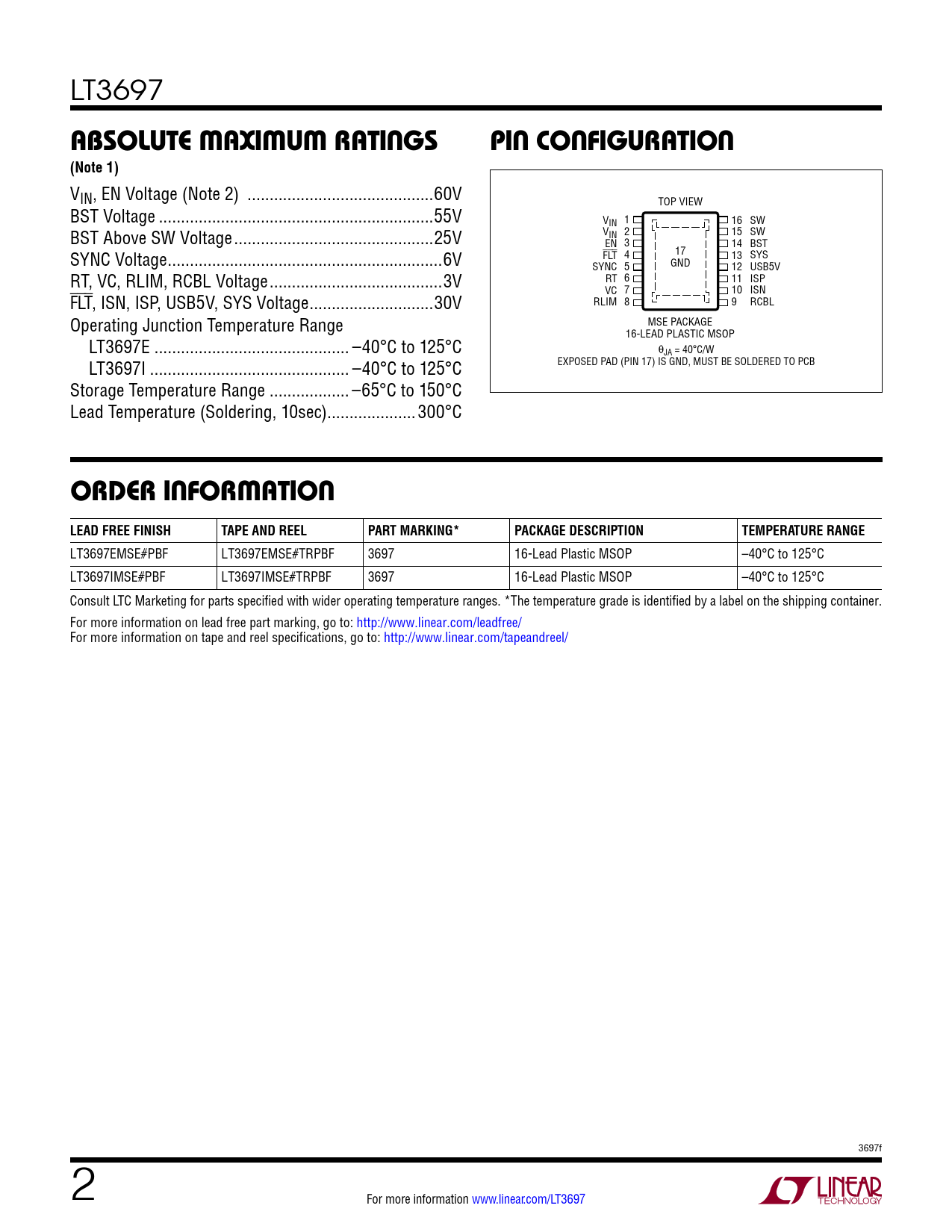

absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
VIN, EN Voltage (Note 2) ..60V TOP VIEW BST Voltage ..55V V 1 IN 16 SW BST Above SW Voltage ...25V V 2 IN 15 SW EN 3 14 BST SYNC Voltage ..6V FLT 4 17 13 SYS SYNC 5 GND 12 USB5V RT, VC, RLIM, RCBL Voltage ...3V RT 6 11 ISP VC 7 10 ISN FLT, ISN, ISP, USB5V, SYS Voltage ..30V RLIM 8 9 RCBL Operating Junction Temperature Range MSE PACKAGE 16-LEAD PLASTIC MSOP LT3697E .. –40°C to 125°C θJA = 40°C/W LT3697I ... –40°C to 125°C EXPOSED PAD (PIN 17) IS GND, MUST BE SOLDERED TO PCB Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10sec)..300°C
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3697EMSE#PBF LT3697EMSE#TRPBF 3697 16-Lead Plastic MSOP –40°C to 125°C LT3697IMSE#PBF LT3697IMSE#TRPBF 3697 16-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 3697f 2 For more information www.linear.com/LT3697
