Datasheet ADP5024 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Dual 3 MHz, 1200 mA Buck Regulators with One 300 mA LDO |
| Pages / Page | 28 / 6 — ADP5024. Data Sheet. INPUT AND OUTPUT CAPACITOR, RECOMMENDED … |
| Revision | E |
| File Format / Size | PDF / 764 Kb |
| Document Language | English |

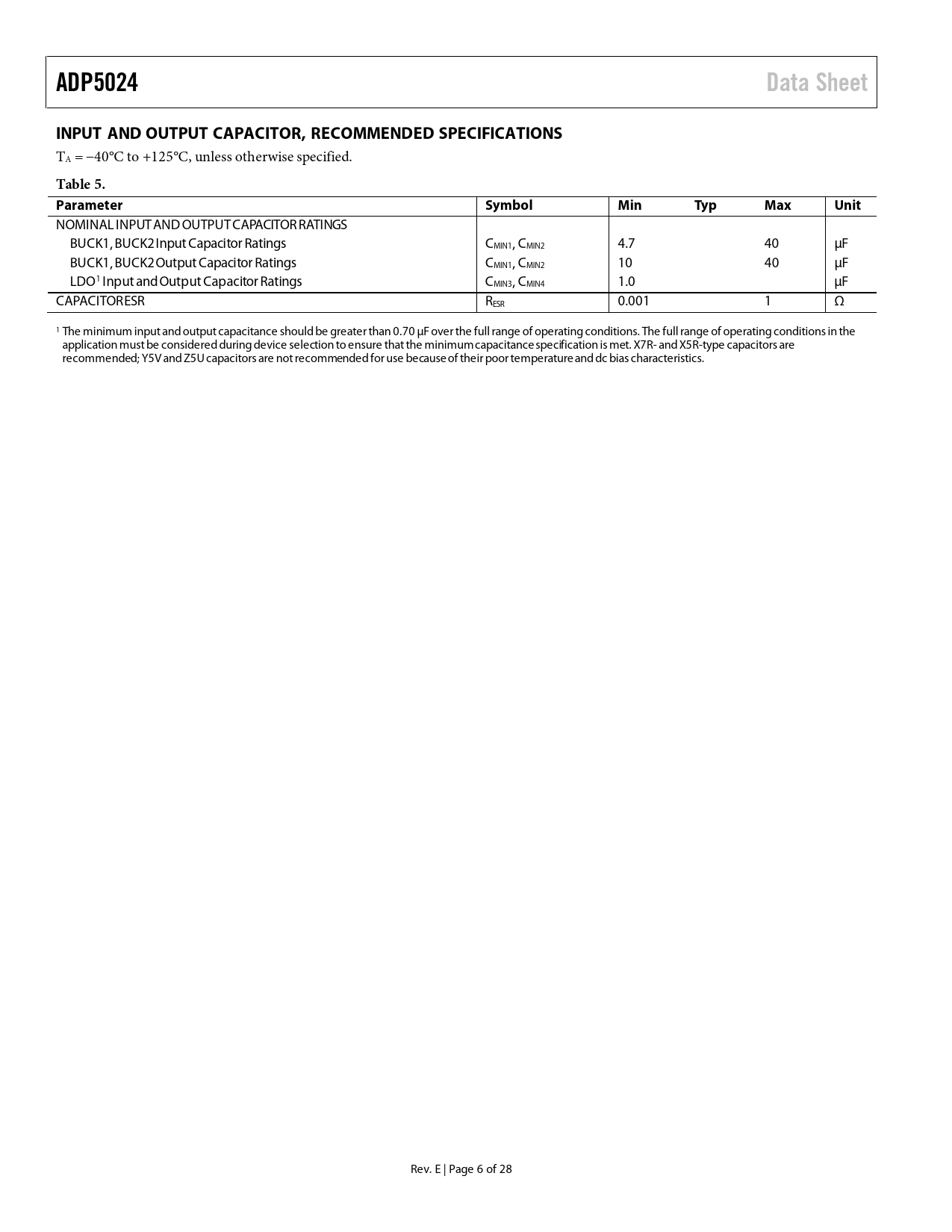

ADP5024. Data Sheet. INPUT AND OUTPUT CAPACITOR, RECOMMENDED SPECIFICATIONS. Table 5. Parameter. Symbol. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 6
ADP5024 Data Sheet INPUT AND OUTPUT CAPACITOR, RECOMMENDED SPECIFICATIONS
TA = −40°C to +125°C, unless otherwise specified.
Table 5. Parameter Symbol Min Typ Max Unit
NOMINAL INPUT AND OUTPUT CAPACITOR RATINGS BUCK1, BUCK2 Input Capacitor Ratings CMIN1, CMIN2 4.7 40 µF BUCK1, BUCK2 Output Capacitor Ratings CMIN1, CMIN2 10 40 µF LDO1 Input and Output Capacitor Ratings CMIN3, CMIN4 1.0 µF CAPACITOR ESR RESR 0.001 1 Ω 1 The minimum input and output capacitance should be greater than 0.70 µF over the full range of operating conditions. The full range of operating conditions in the application must be considered during device selection to ensure that the minimum capacitance specification is met. X7R- and X5R-type capacitors are recommended; Y5V and Z5U capacitors are not recommended for use because of their poor temperature and dc bias characteristics. Rev. E | Page 6 of 28 Document Outline Features Applications General Description Typical Application Circuit Revision History Specifications General Specifications BUCK1 and BUCK2 Specifications LDO Specifications Input and Output Capacitor, Recommended Specifications Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Power Management Unit Thermal Protection Undervoltage Lockout Enable/Shutdown BUCK1 and BUCK2 Control Scheme PWM Mode Power Save Mode (PSM) PSM Current Threshold Oscillator/Phasing of Inductor Switching Short-Circuit Protection Soft Start Current Limit 100% Duty Operation Active Pull-Down Resistors LDO Applications Information Buck External Component Selection Feedback Resistors Inductor Output Capacitor Input Capacitor LDO External Component Selection Feedback Resistors Output Capacitor Input Bypass Capacitor Input and Output Capacitor Properties Power Dissipation and Thermal Considerations Buck Regulator Power Dissipation LDO Regulator Power Dissipation Junction Temperature PCB Layout Guidelines Typical Application Schematics Bill of Materials Outline Dimensions Ordering Guide
