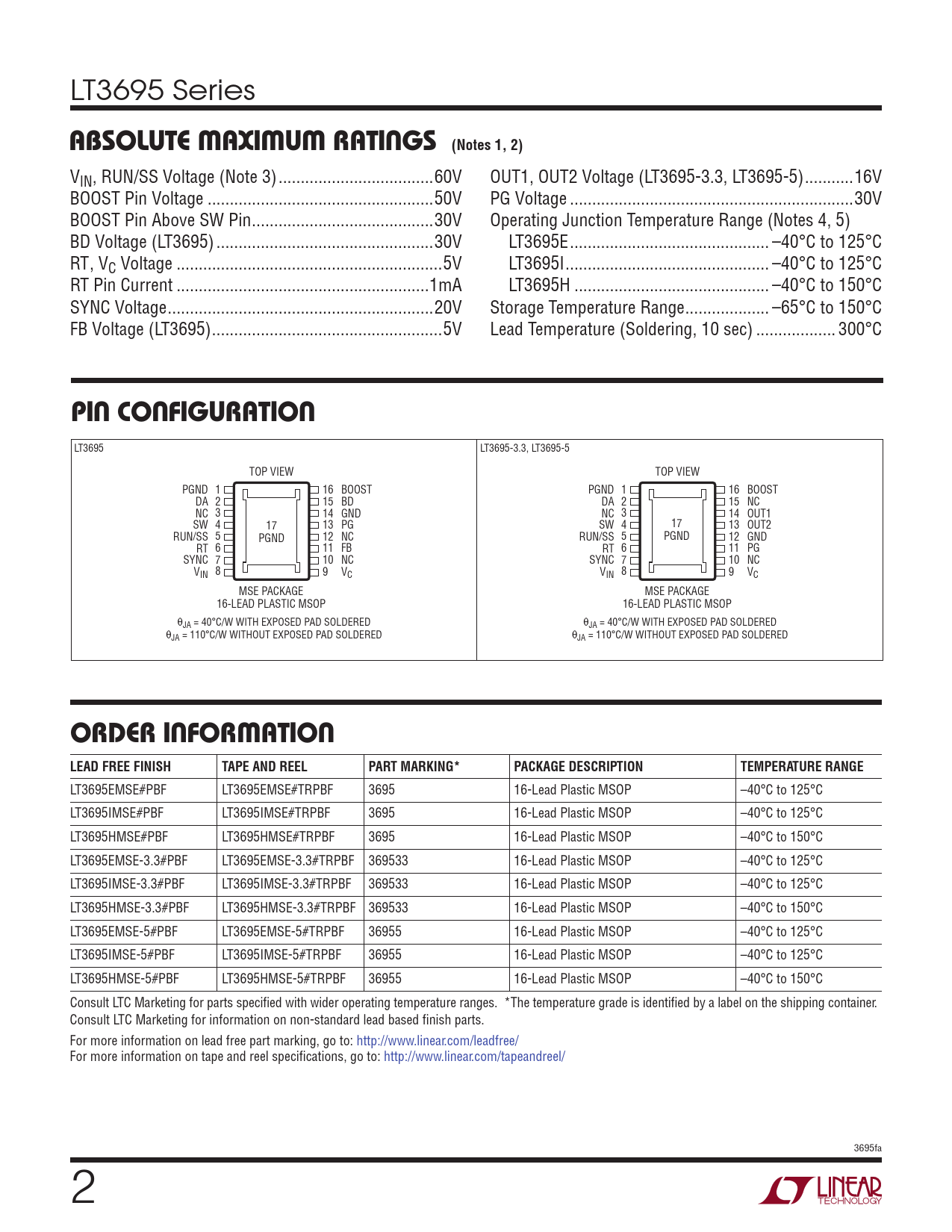

LT3695 Series
ABSOLUTE MAXIMUM RATINGS (Notes 1, 2)
VIN, RUN/SS Voltage (Note 3) ...60V OUT1, OUT2 Voltage (LT3695-3.3, LT3695-5) ...16V BOOST Pin Voltage ...50V PG Voltage ..30V BOOST Pin Above SW Pin ...30V Operating Junction Temperature Range (Notes 4, 5) BD Voltage (LT3695) ...30V LT3695E ... –40°C to 125°C RT , VC Voltage ..5V LT3695I .. –40°C to 125°C RT Pin Current ...1mA LT3695H .. –40°C to 150°C SYNC Voltage ..20V Storage Temperature Range ... –65°C to 150°C FB Voltage (LT3695) ..5V Lead Temperature (Soldering, 10 sec) .. 300°C
PIN CONFIGURATION
LT3695 LT3695-3.3, LT3695-5 TOP VIEW TOP VIEW PGND 1 16 BOOST PGND 1 16 BOOST DA 2 15 BD DA 2 15 NC NC 3 14 GND NC 3 14 OUT1 SW 4 17 13 PG SW 4 17 13 OUT2 RUN/SS 5 PGND 12 NC RUN/SS 5 PGND 12 GND RT 6 11 FB RT 6 11 PG SYNC 7 10 NC SYNC 7 10 NC V 8 IN 9 VC V 8 IN 9 VC MSE PACKAGE MSE PACKAGE 16-LEAD PLASTIC MSOP 16-LEAD PLASTIC MSOP θJA = 40°C/W WITH EXPOSED PAD SOLDERED θJA = 40°C/W WITH EXPOSED PAD SOLDERED θJA = 110°C/W WITHOUT EXPOSED PAD SOLDERED θJA = 110°C/W WITHOUT EXPOSED PAD SOLDERED
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3695EMSE#PBF LT3695EMSE#TRPBF 3695 16-Lead Plastic MSOP –40°C to 125°C LT3695IMSE#PBF LT3695IMSE#TRPBF 3695 16-Lead Plastic MSOP –40°C to 125°C LT3695HMSE#PBF LT3695HMSE#TRPBF 3695 16-Lead Plastic MSOP –40°C to 150°C LT3695EMSE-3.3#PBF LT3695EMSE-3.3#TRPBF 369533 16-Lead Plastic MSOP –40°C to 125°C LT3695IMSE-3.3#PBF LT3695IMSE-3.3#TRPBF 369533 16-Lead Plastic MSOP –40°C to 125°C LT3695HMSE-3.3#PBF LT3695HMSE-3.3#TRPBF 369533 16-Lead Plastic MSOP –40°C to 150°C LT3695EMSE-5#PBF LT3695EMSE-5#TRPBF 36955 16-Lead Plastic MSOP –40°C to 125°C LT3695IMSE-5#PBF LT3695IMSE-5#TRPBF 36955 16-Lead Plastic MSOP –40°C to 125°C LT3695HMSE-5#PBF LT3695HMSE-5#TRPBF 36955 16-Lead Plastic MSOP –40°C to 150°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 3695fa 2
