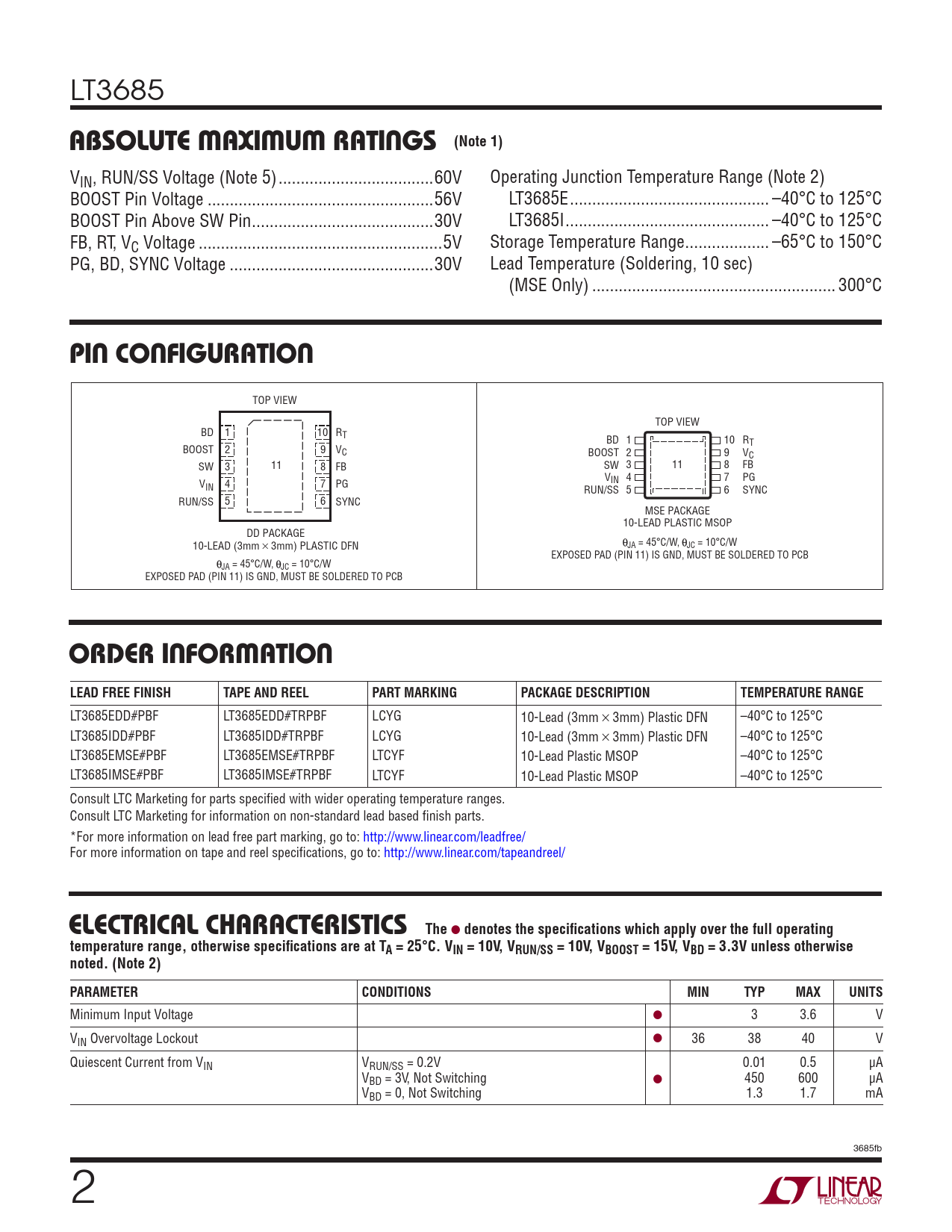

LT3685
ABSOLUTE MAXIMUM RATINGS (Note 1)
VIN, RUN/SS Voltage (Note 5) ...60V Operating Junction Temperature Range (Note 2) BOOST Pin Voltage ...56V LT3685E ... –40°C to 125°C BOOST Pin Above SW Pin ...30V LT3685I .. –40°C to 125°C FB, RT, VC Voltage ...5V Storage Temperature Range ... –65°C to 150°C PG, BD, SYNC Voltage ..30V Lead Temperature (Soldering, 10 sec) (MSE Only) ... 300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW BD 1 10 RT BD 1 10 RT BOOST 2 9 VC BOOST 2 9 VC SW 3 11 8 FB SW 3 11 8 FB V 4 7 PG V 4 7 PG IN IN RUN/SS 5 6 SYNC RUN/SS 5 6 SYNC MSE PACKAGE 10-LEAD PLASTIC MSOP DD PACKAGE 10-LEAD (3mm s 3mm) PLASTIC DFN JA = 45°C/W, JC = 10°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB JA = 45°C/W, JC = 10°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3685EDD#PBF LT3685EDD#TRPBF LCYG 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3685IDD#PBF LT3685IDD#TRPBF LCYG 10-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LT3685EMSE#PBF LT3685EMSE#TRPBF LTCYF 10-Lead Plastic MSOP –40°C to 125°C LT3685IMSE#PBF LT3685IMSE#TRPBF LTCYF 10-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. Consult LTC Marketing for information on non-standard lead based fi nish parts. *For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/
ELECTRICAL CHARACTERISTICS The
●
denotes the specifi cations which apply over the full operating temperature range, otherwise specifi cations are at TA = 25°C. VIN = 10V, VRUN/SS = 10V, VBOOST = 15V, VBD = 3.3V unless otherwise noted. (Note 2) PARAMETER CONDITIONS MIN TYP MAX UNITS
Minimum Input Voltage ● 3 3.6 V VIN Overvoltage Lockout ● 36 38 40 V Quiescent Current from VIN VRUN/SS = 0.2V 0.01 0.5 μA VBD = 3V, Not Switching ● 450 600 μA VBD = 0, Not Switching 1.3 1.7 mA 3685fb 2
