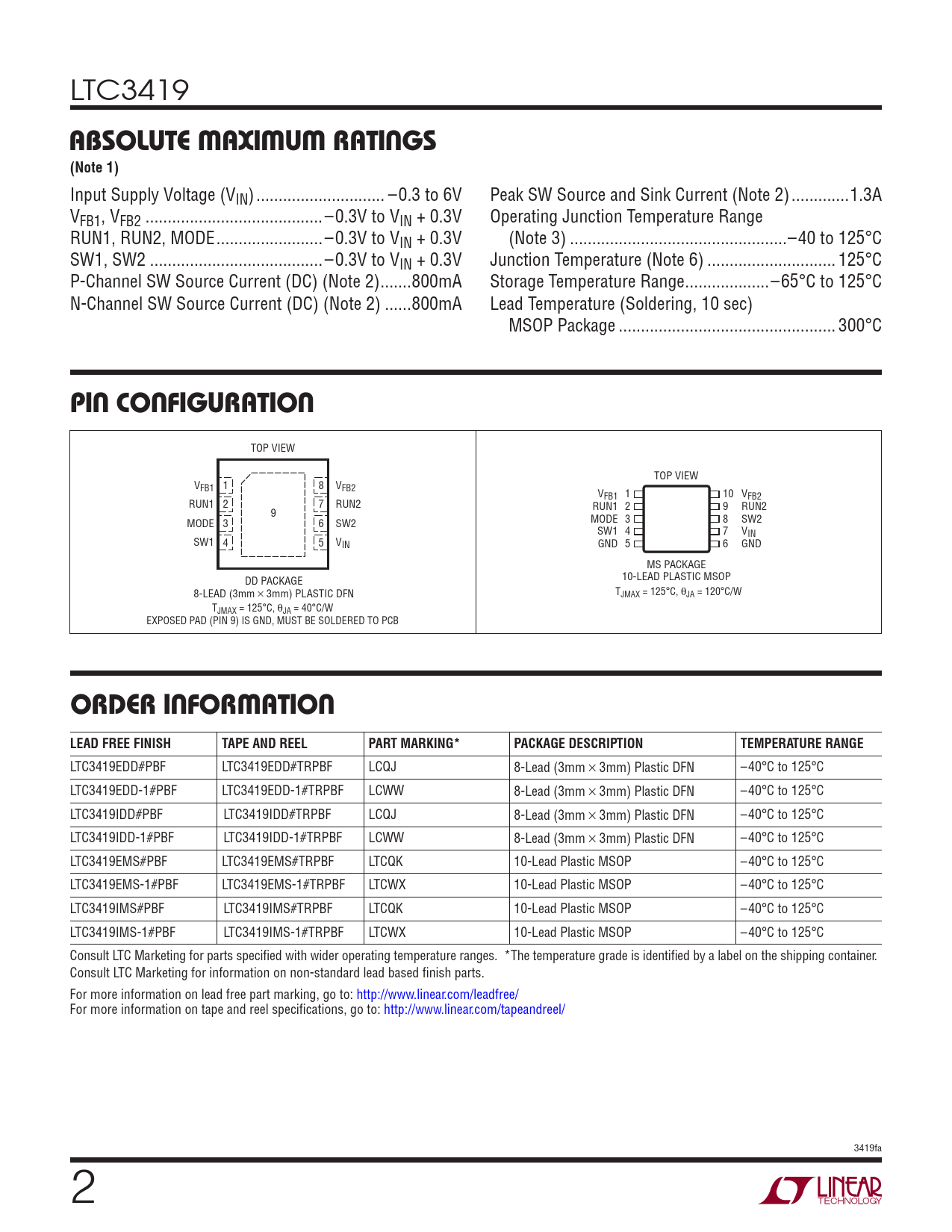

LTC3419
ABSOLUTE MAXIMUM RATINGS (Note 1)
Input Supply Voltage (VIN) ... –0.3 to 6V Peak SW Source and Sink Current (Note 2) ...1.3A VFB1, VFB2 .. –0.3V to VIN + 0.3V Operating Junction Temperature Range RUN1, RUN2, MODE .. –0.3V to VIN + 0.3V (Note 3) ...–40 to 125°C SW1, SW2 ... –0.3V to VIN + 0.3V Junction Temperature (Note 6) ... 125°C P-Channel SW Source Current (DC) (Note 2) ...800mA Storage Temperature Range ...–65°C to 125°C N-Channel SW Source Current (DC) (Note 2) ..800mA Lead Temperature (Soldering, 10 sec) MSOP Package ... 300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW V 1 8 FB1 VFB2 V 1 FB1 10 VFB2 RUN1 2 7 RUN2 RUN1 2 9 RUN2 9 MODE 3 6 SW2 MODE 3 8 SW2 SW1 4 7 VIN SW1 4 5 VIN GND 5 6 GND MS PACKAGE DD PACKAGE 10-LEAD PLASTIC MSOP 8-LEAD (3mm s 3mm) PLASTIC DFN TJMAX = 125°C, θJA = 120°C/W TJMAX = 125°C, θJA = 40°C/W EXPOSED PAD (PIN 9) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC3419EDD#PBF LTC3419EDD#TRPBF LCQJ 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3419EDD-1#PBF LTC3419EDD-1#TRPBF LCWW 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3419IDD#PBF LTC3419IDD#TRPBF LCQJ 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3419IDD-1#PBF LTC3419IDD-1#TRPBF LCWW 8-Lead (3mm × 3mm) Plastic DFN –40°C to 125°C LTC3419EMS#PBF LTC3419EMS#TRPBF LTCQK 10-Lead Plastic MSOP –40°C to 125°C LTC3419EMS-1#PBF LTC3419EMS-1#TRPBF LTCWX 10-Lead Plastic MSOP –40°C to 125°C LTC3419IMS#PBF LTC3419IMS#TRPBF LTCQK 10-Lead Plastic MSOP –40°C to 125°C LTC3419IMS-1#PBF LTC3419IMS-1#TRPBF LTCWX 10-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based fi nish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 3419fa 2
