| Manufacturer | Analog Devices |
| Description | Dual Monolithic 1.6A Step-Down Switching Regulator |
| Pages / Page | 24 / 4 — TYPICAL PERFORMANCE CHARACTERISTICS. Effi ciency, VOUT = 1.8V (LT3506A). … |
| File Format / Size | PDF / 221 Kb |
| Document Language | English |

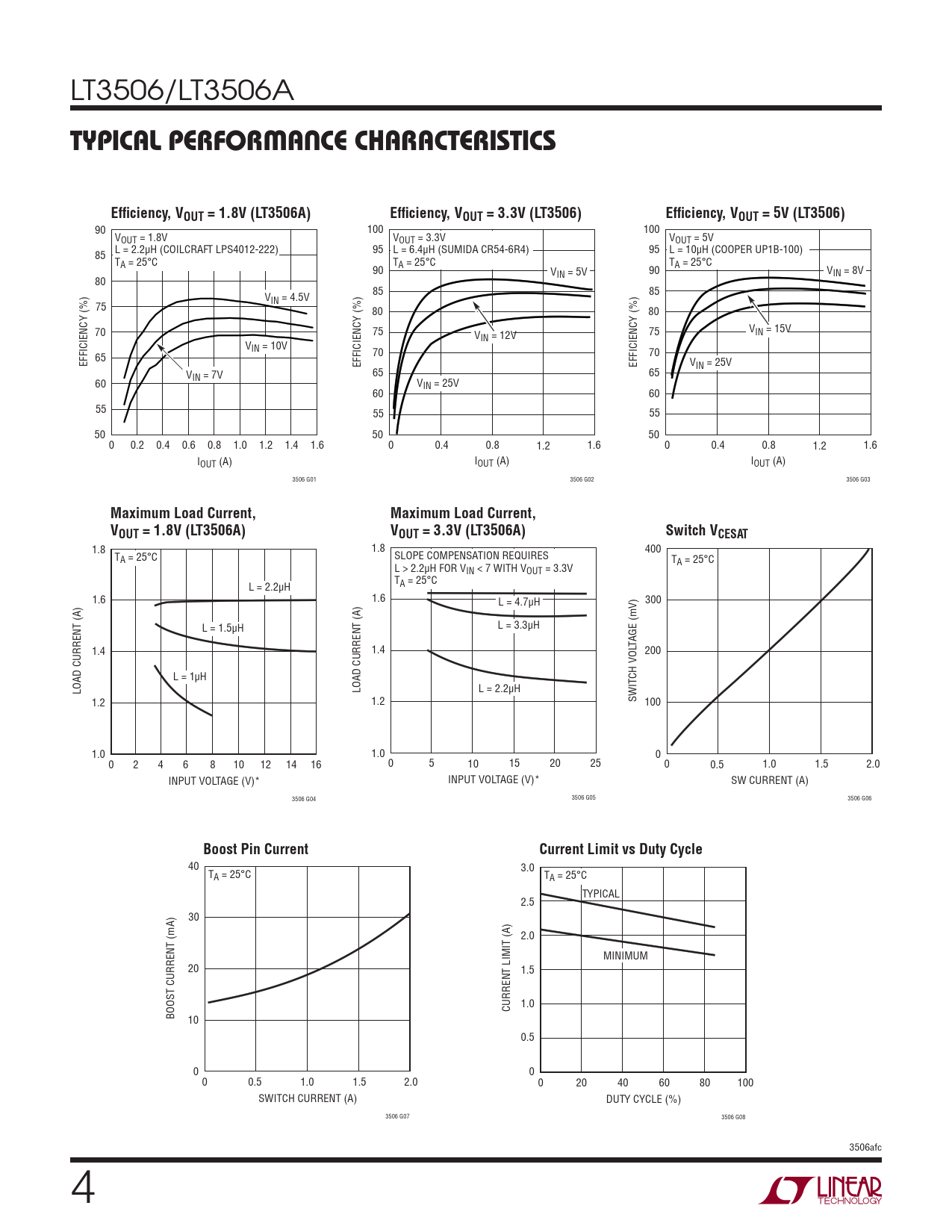

TYPICAL PERFORMANCE CHARACTERISTICS. Effi ciency, VOUT = 1.8V (LT3506A). Effi ciency, VOUT = 3.3V (LT3506)
