LTC1779

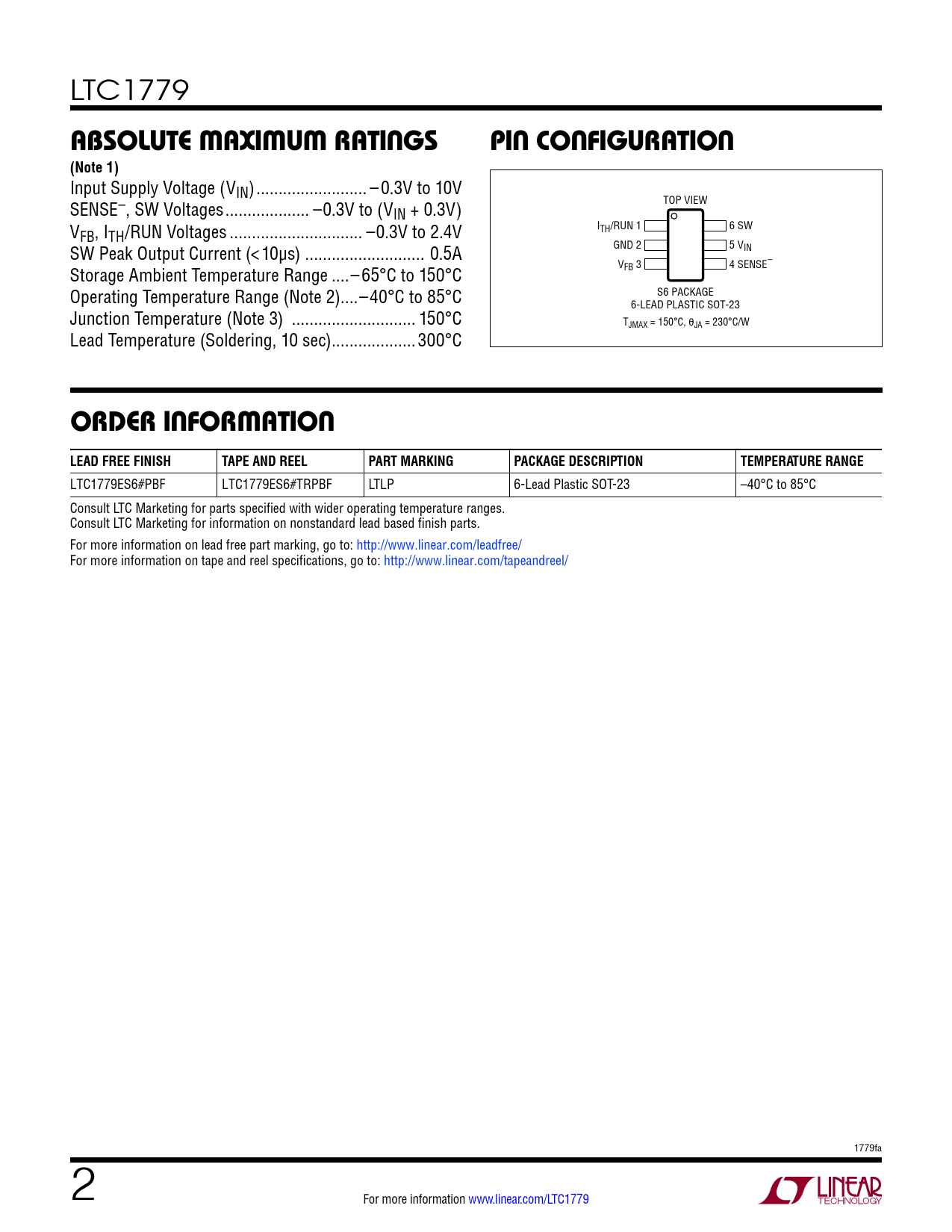

absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
Input Supply Voltage (VIN) ... –0.3V to 10V SENSE–, SW Voltages ... –0.3V to (V TOP VIEW IN + 0.3V) V I 6 SW FB, ITH/RUN Voltages .. –0.3V to 2.4V TH/RUN 1 SW Peak Output Current (<10µs) ... 0.5A GND 2 5 VIN Storage Ambient Temperature Range ..–65°C to 150°C VFB 3 4 SENSE– Operating Temperature Range (Note 2)..–40°C to 85°C S6 PACKAGE 6-LEAD PLASTIC SOT-23 Junction Temperature (Note 3) .. 150°C TJMAX = 150°C, θJA = 230°C/W Lead Temperature (Soldering, 10 sec) ...300°C
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC1779ES6#PBF LTC1779ES6#TRPBF LTLP 6-Lead Plastic SOT-23 –40°C to 85°C Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on nonstandard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 1779fa 2 For more information www.linear.com/LTC1779
