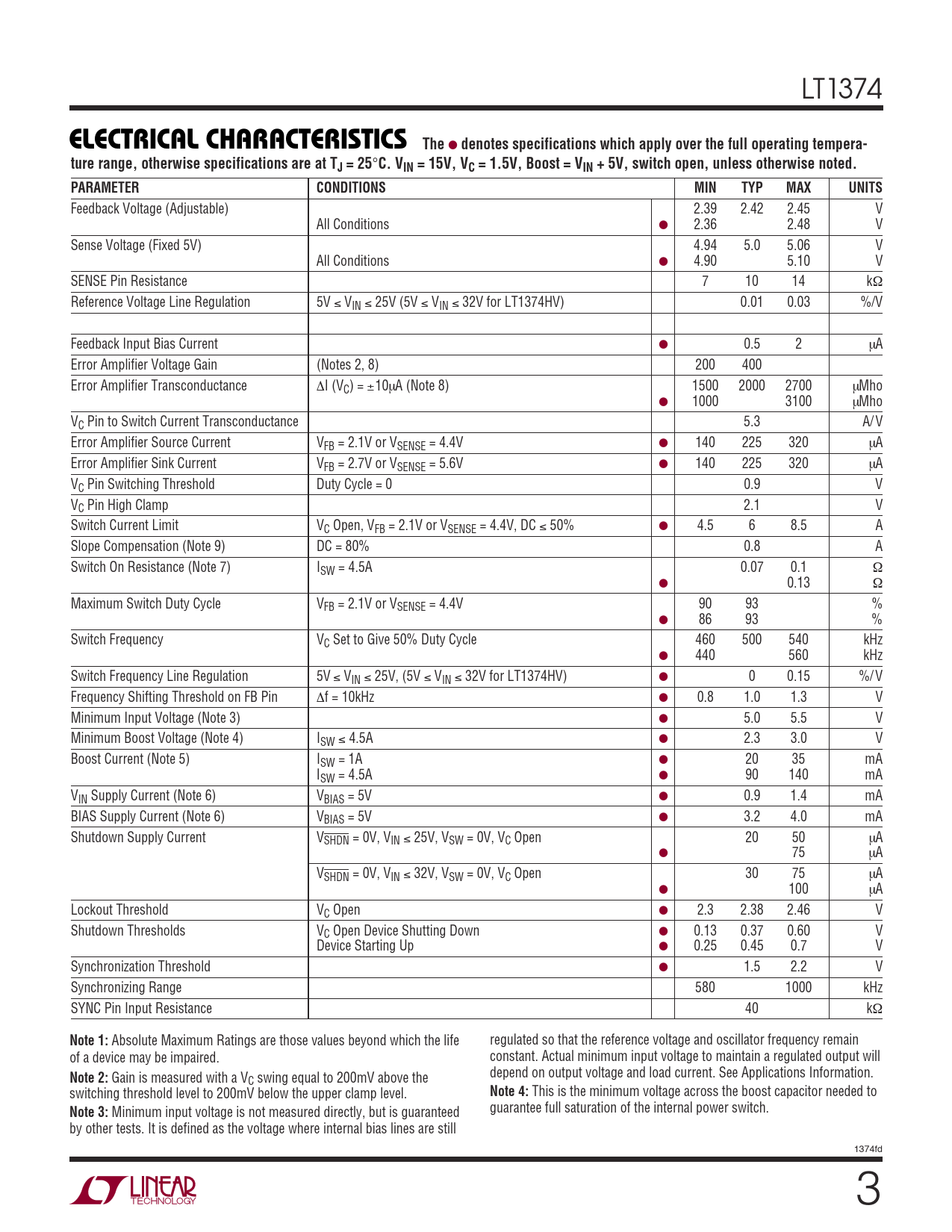

ELECTRICAL CHARACTERISTICS The. denotes specifications which apply over the full operating tempera-
Model Line for this Datasheet
- LT1374CFE#PBF LT1374CFE#TRPBF LT1374CR#PBF LT1374CR#TRPBF LT1374CR-5#PBF LT1374CR-5#TRPBF LT1374CR-5SYNC#PBF LT1374CR-5Sync#TRPBF LT1374CR-SYNC#PBF LT1374CR-Sync#TRPBF LT1374CS8#PBF LT1374CS8#TRPBF LT1374CS8-5#PBF LT1374CS8-5#TRPBF LT1374CS8-5SYNC#PBF LT1374CS8-5Sync#TRPBF LT1374CS8-SYNC#PBF LT1374CS8-Sync#TRPBF LT1374CT7#PBF LT1374CT7-5#PBF LT1374HVCFE#PBF LT1374HVCFE#TRPBF LT1374HVCR#PBF LT1374HVCR#TRPBF LT1374HVCS8#PBF LT1374HVCS8#TRPBF LT1374HVIFE#PBF LT1374HVIFE#TRPBF LT1374HVIR#PBF LT1374HVIR#TRPBF LT1374HVIS8#PBF LT1374HVIS8#TRPBF LT1374IFE#PBF LT1374IFE#TRPBF LT1374IR#PBF LT1374IR#TRPBF LT1374IR-5#PBF LT1374IR-5#TRPBF LT1374IR-5SYNC#PBF LT1374IR-SYNC#PBF LT1374IS8#PBF LT1374IS8#TRPBF LT1374IS8-5#PBF LT1374IS8-5#TRPBF LT1374IS8-5SYNC#PBF LT1374IS8-SYNC#PBF LT1374IT7#PBF LT1374IT7-5#PBF
Text Version of Document
LT1374
ELECTRICAL CHARACTERISTICS The
●
denotes specifications which apply over the full operating tempera- ture range, otherwise specifications are at TJ = 25
°
C. VIN = 15V, VC = 1.5V, Boost = VIN + 5V, switch open, unless otherwise noted. PARAMETER CONDITIONS MIN TYP MAX UNITS
Feedback Voltage (Adjustable) 2.39 2.42 2.45 V All Conditions ● 2.36 2.48 V Sense Voltage (Fixed 5V) 4.94 5.0 5.06 V All Conditions ● 4.90 5.10 V SENSE Pin Resistance 7 10 14 kΩ Reference Voltage Line Regulation 5V ≤ VIN ≤ 25V (5V ≤ VIN ≤ 32V for LT1374HV) 0.01 0.03 %/V Feedback Input Bias Current ● 0.5 2 µA Error Amplifier Voltage Gain (Notes 2, 8) 200 400 Error Amplifier Transconductance ∆I (VC) = ±10µA (Note 8) 1500 2000 2700 µMho ● 1000 3100 µMho VC Pin to Switch Current Transconductance 5.3 A/ V Error Amplifier Source Current VFB = 2.1V or VSENSE = 4.4V ● 140 225 320 µA Error Amplifier Sink Current VFB = 2.7V or VSENSE = 5.6V ● 140 225 320 µA VC Pin Switching Threshold Duty Cycle = 0 0.9 V VC Pin High Clamp 2.1 V Switch Current Limit VC Open, VFB = 2.1V or VSENSE = 4.4V, DC ≤ 50% ● 4.5 6 8.5 A Slope Compensation (Note 9) DC = 80% 0.8 A Switch On Resistance (Note 7) ISW = 4.5A 0.07 0.1 Ω ● 0.13 Ω Maximum Switch Duty Cycle VFB = 2.1V or VSENSE = 4.4V 90 93 % ● 86 93 % Switch Frequency VC Set to Give 50% Duty Cycle 460 500 540 kHz ● 440 560 kHz Switch Frequency Line Regulation 5V ≤ VIN ≤ 25V, (5V ≤ VIN ≤ 32V for LT1374HV) ● 0 0.15 %/ V Frequency Shifting Threshold on FB Pin ∆f = 10kHz ● 0.8 1.0 1.3 V Minimum Input Voltage (Note 3) ● 5.0 5.5 V Minimum Boost Voltage (Note 4) ISW ≤ 4.5A ● 2.3 3.0 V Boost Current (Note 5) ISW = 1A ● 20 35 mA ISW = 4.5A ● 90 140 mA VIN Supply Current (Note 6) VBIAS = 5V ● 0.9 1.4 mA BIAS Supply Current (Note 6) VBIAS = 5V ● 3.2 4.0 mA Shutdown Supply Current VSHDN = 0V, VIN ≤ 25V, VSW = 0V, VC Open 20 50 µA ● 75 µA VSHDN = 0V, VIN ≤ 32V, VSW = 0V, VC Open 30 75 µA ● 100 µA Lockout Threshold VC Open ● 2.3 2.38 2.46 V Shutdown Thresholds VC Open Device Shutting Down ● 0.13 0.37 0.60 V Device Starting Up ● 0.25 0.45 0.7 V Synchronization Threshold ● 1.5 2.2 V Synchronizing Range 580 1000 kHz SYNC Pin Input Resistance 40 kΩ
